Sigma® 45760 1057221

Sigma® 3539517

  1. pin-int

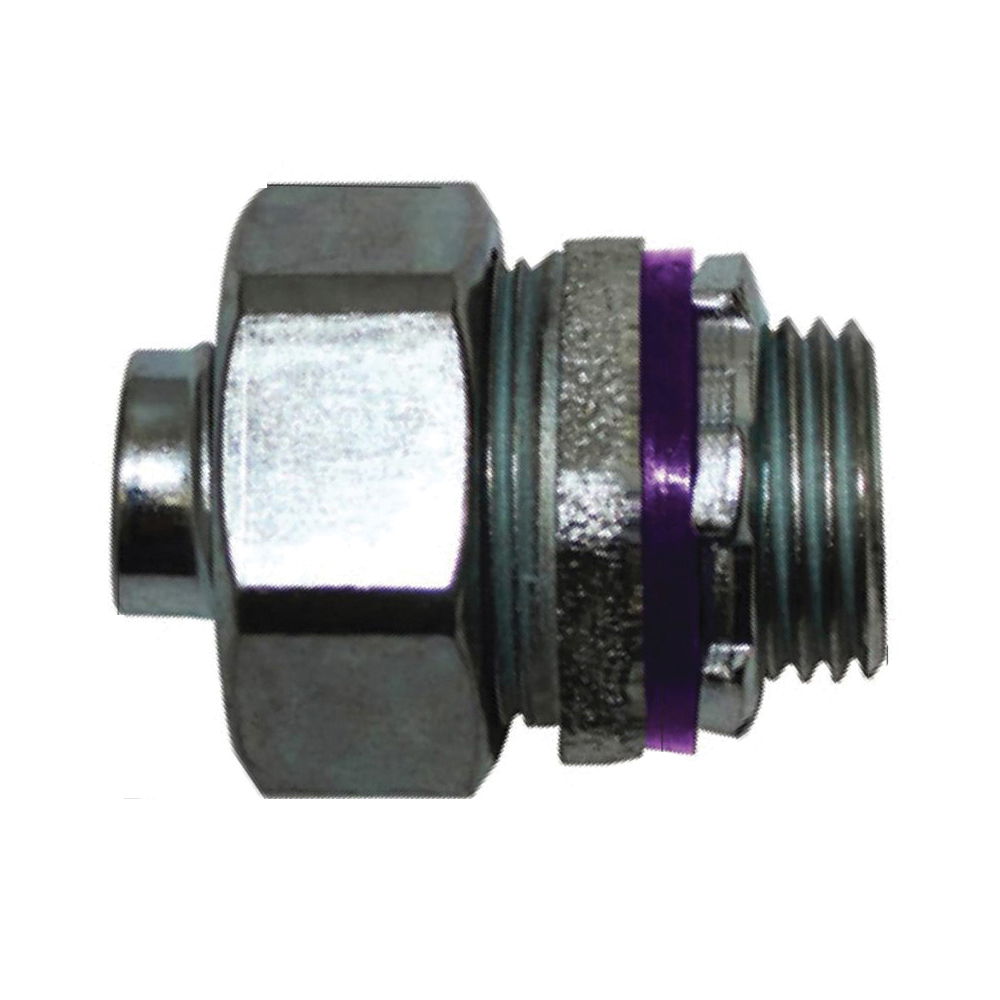

Sigma® 45760 Liquidtight Connector, 1/2 in Trade, Iron, Zinc-Plated
  • Manufacturer: SIGMA Engineered Solutions
  • Brand Name: Sigma®
  • Product Code: 3539517
  • Part Number: 1057221
  • MPN: 45760
  • UPC: 031857457600
  • Min. Order Qty: 1
  • Qty. Interval: 1

Straight liquid-tight connectors are used to terminate and seal Liquid-Tight Flexible Metal and/or Non-Metallic Type B Conduits to an oil-tight, liquid-tight or rain-tight box or enclosure. Connectors can be used with tapered threaded female entry or unthreaded knockout using the provided sealing washer and locknut.

Sigma® Liquidtight Connector, 1/2 in Trade, Straight Connection, 0.53 in Thread Length, For Use With: Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits, Iron, Finish: Zinc-Plated, 1.69 in Length, 1.14 in Width

Connection Type      :      Straight
Finish      :      Zinc-Plated
Length      :      1.69 in
Material      :      Iron
Suitable For Use With      :      Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits
Thread Length      :      0.53 in
Trade Size      :      1/2 in
Width      :      1.14 in
  • pdfCatalog https://assets.unilogcorp.com/571/ITEM/DOC/Sigma_14147BR_Catalog.pdf
