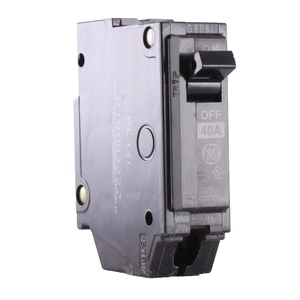

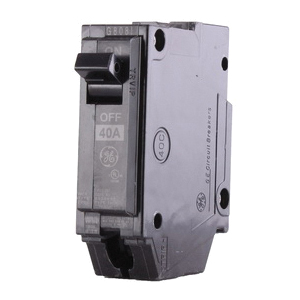

ABB THQL1140 Feeder Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 1-Pole, Non-Interchangeable Trip
  • Manufacturer: ABB
  • Brand Name: ABB
  • Product Code: 6122006
  • Part Number: 1034387
  • MPN: THQL1140
  • UPC: 783164012880
  • Min. Order Qty: 1
  • Qty. Interval: 1

Q-Line circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications in load centers or lighting panels. All Q-Line circuit breakers feature quick make/quick break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line breakers can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications. The TQHL1140 breaker features one-pole, an ampere rating of 40 A, an interrupting rating of 10 kAIC and a voltage rating of 120/240 V.

ABB Feeder Circuit Breaker, 40 A, 120/240 VAC, 10 kA Interrupt Rating, 1 Poles, Q-Line Frame, Non-Interchangeable Trip, Box Terminal, 8 to 3 AWG Wire, Plug-In Mounting, 60 to 75 deg C, 1 in Width

Amperage Rating      :      40 A
Frame Type      :      Q-Line
Interrupt Rating      :      10 kA
Mounting Type      :      Plug-In
Number of Poles      :      1
Temperature Rating      :      60 to 75 deg C
Terminal Type      :      Box
Trip Type      :      Non-Interchangeable
Voltage Rating      :      120/240 VAC
Width      :      1 in
Wire Size      :      8 to 3 AWG
