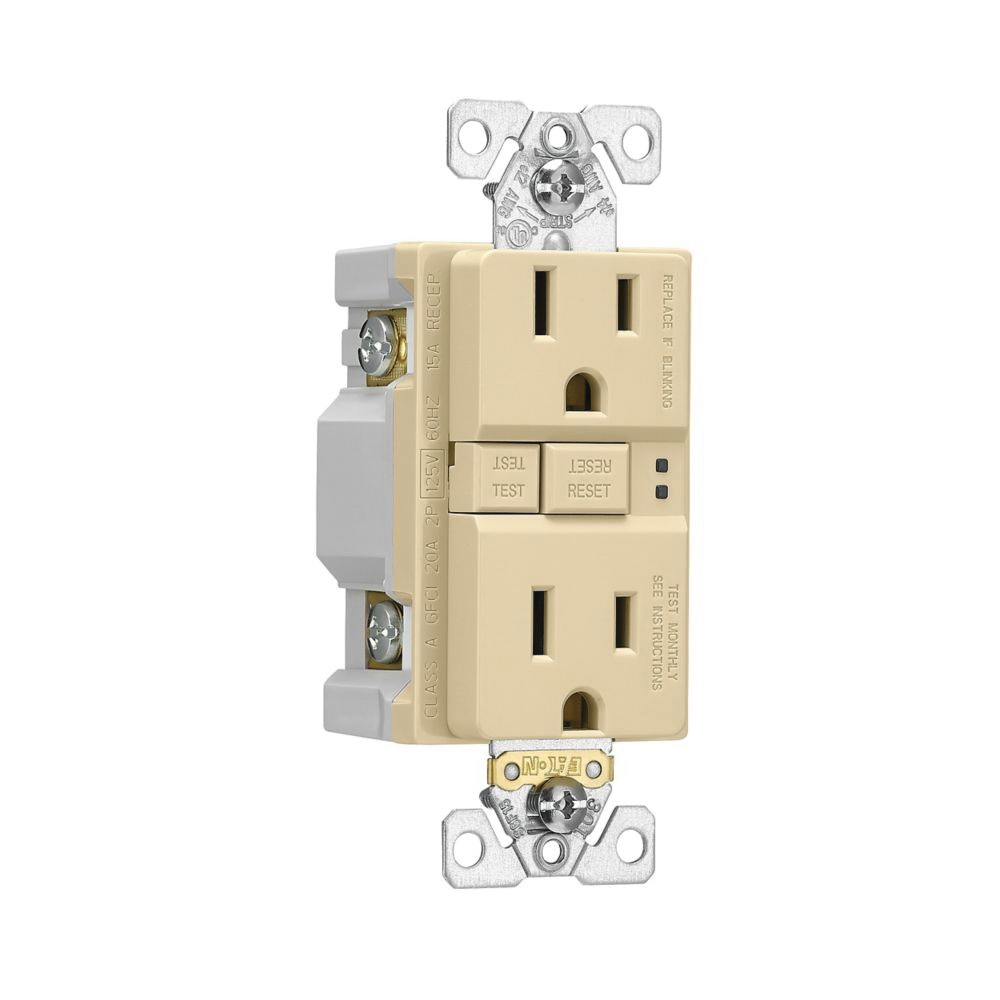

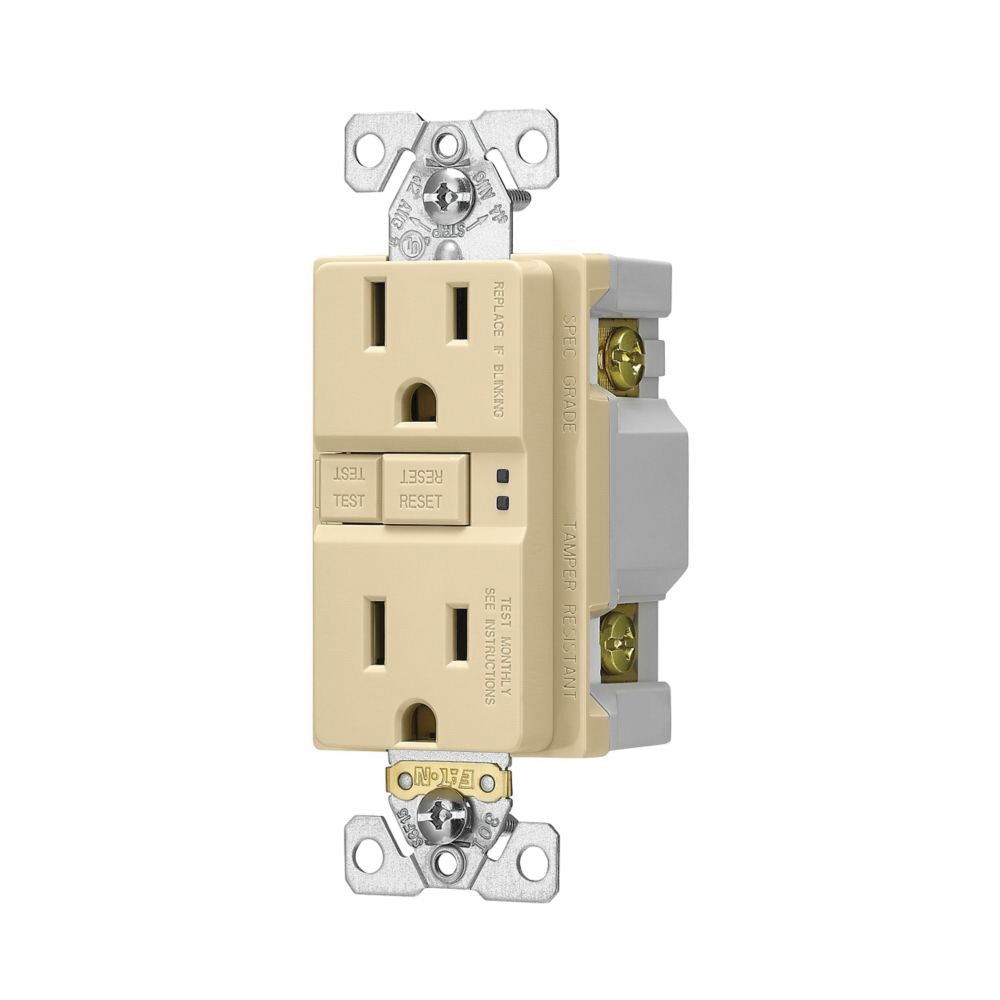

Arrow Hart TRSGF Series 4896155 GFCI Duplex Receptacle, 125 V, 15 A, 2-Pole, 3-Wire, Ivory
  • Manufacturer: Eaton
  • Brand Name: Arrow Hart
  • Product Code: 4896155
  • Part Number: 1225931
  • MPN: TRSGF15V
  • UPC: 032664739897
  • Min. Order Qty: 1
  • Qty. Interval: 1

Arrow Hart GFCI Duplex Receptacle, Series TRSGF Series, 125 V, 15 A, 60 Hz, 20 A Interrupt, 10 kA Short Circuit, 2-Pole, 3-Wire, 14 to 10 AWG, Grounding: Grounding, NEMA 5-15R, 2000 V Dielectric Strength, Visual Indicator, Flush Mount, Back and Side Wire Terminal, Polycarbonate Body, Brass Contact, Ivory, -31 to 150.8 deg F, 2.813 in L, 2 in W, 4-5/8 in H

Amperage Rating      :      15 A
Body Material      :      Polycarbonate
Color      :      Ivory
Contact Material      :      Brass
Dielectric Strength      :      2000 V
Frequency Rating      :      60 Hz
Grounding      :      Grounding
Height      :      4-5/8 in
Indicator Type      :      Visual
Interrupt Rating      :      20 A
Length      :      2.813 in
Mounting Type      :      Flush
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      TRSGF Series
Short Circuit Rating      :      10 kA
Temperature Rating      :      -31 to 150.8 deg F
Terminal Type      :      Back and Side Wire
Voltage Rating      :      125 V
Width      :      2 in
Wire Size      :      14 to 10 AWG
  • pdfCatalog https://assets.unilogcorp.com/571/ITEM/DOC/Arrow_Hart_SGF15V_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/Arrow_Hart_TRSGF15V_Specification_Sheet.pdf
