Arrow Hart 4229-BOX 1223983

Arrow Hart 6054753

  1. pin-int

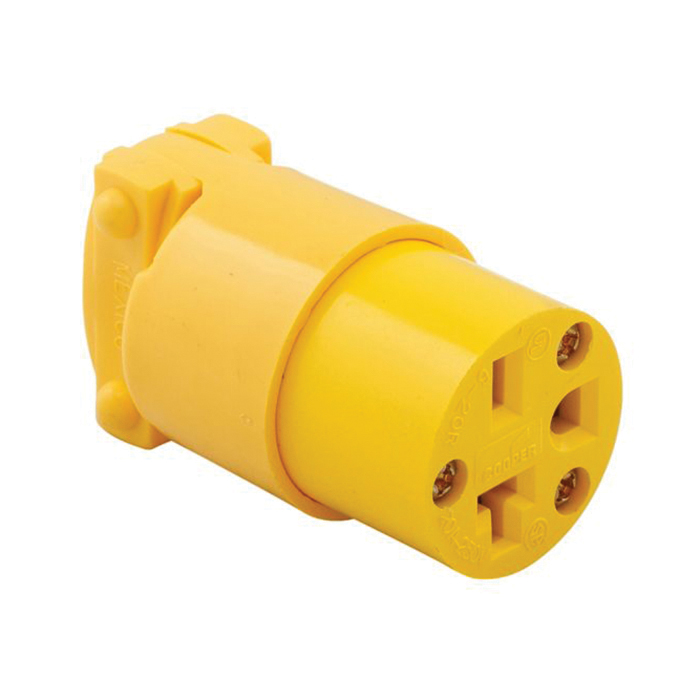

Arrow Hart 4229-BOX Straight Blade Connector, 1.54 in L, 20 A, 250 VAC, 2 -Pole, Brass Contact, Yellow
  • Manufacturer: Eaton
  • Brand Name: Arrow Hart
  • Product Code: 6054753
  • Part Number: 1223983
  • MPN: 4229-BOX
  • UPC: 032664333002
  • Min. Order Qty: 1
  • Qty. Interval: 1

Arrow Hart Straight Blade Connector, Grounding Style, 250 VAC, 20 A, 2 Poles, Brass Contact, Thermoplastic Insulation, Yellow, Back Wired Wire Connection, NEMA Rating: NEMA 6-20R, 1.54 in Length, Additional Information: 1.54 in W x 2.61 in H Connector Dimension, 3-Wire, 18 to 12 AWG Wire Size, 15 lbf-in Torque Rating, ED Box Packaging Type

Additional Information      :      1.54 in W x 2.61 in H Connector Dimension, 3-Wire, 18 to 12 AWG Wire Size, 15 lbf-in Torque Rating, ED Box Packaging Type
Amperage Rating      :      20 A
Color      :      Yellow
Contact Material      :      Brass
Insulation Material      :      Thermoplastic
Length      :      1.54 in
NEMA Rating      :      NEMA 6-20R
Number of Poles      :      2
Style      :      Grounding
Voltage Rating      :      250 VAC
Wire Connection Type      :      Back Wired
