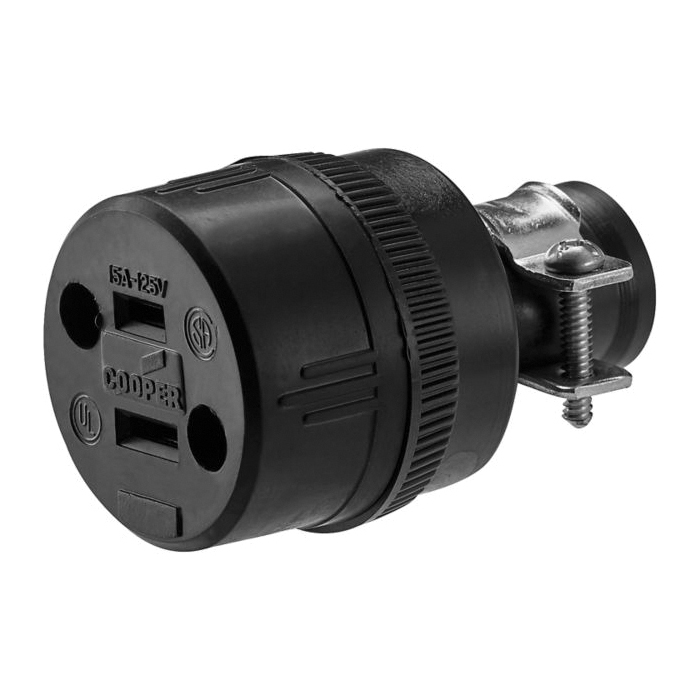

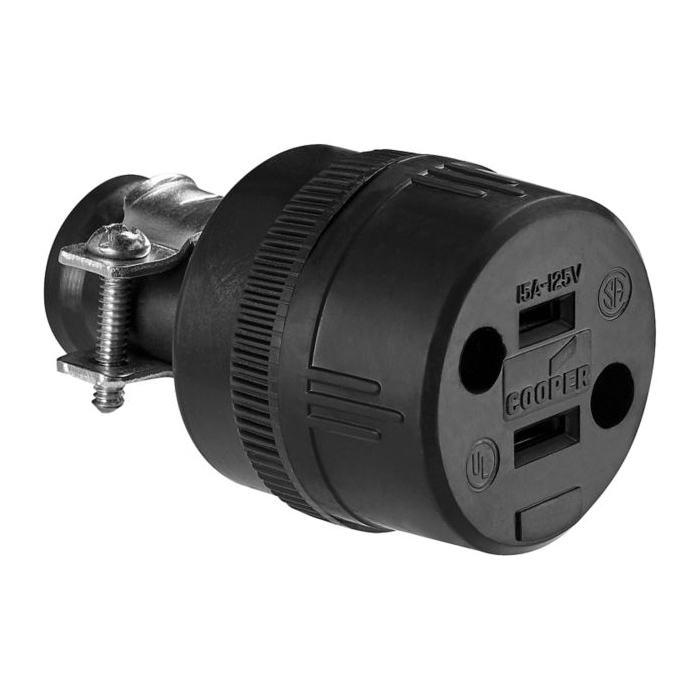

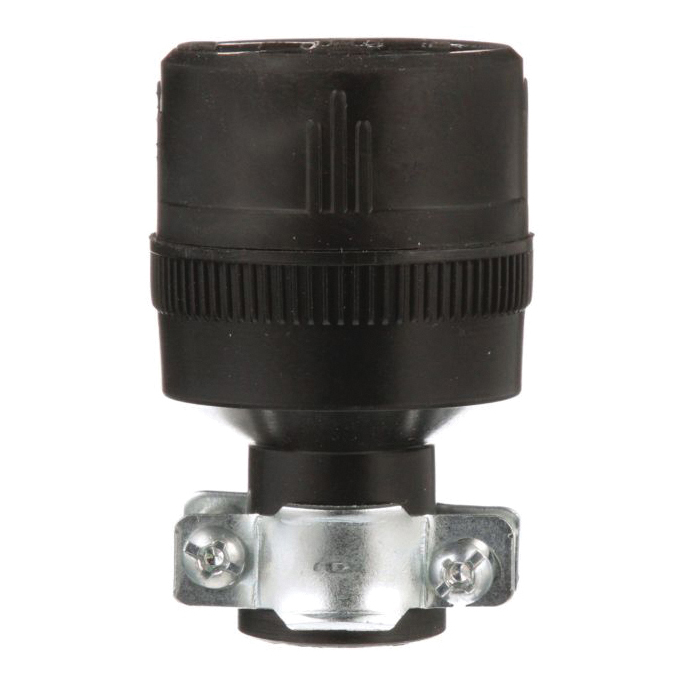

EATON 224-BOX Straight Blade Connector, 2-1/2 in L, 15 A, 125 VAC, 2 -Pole, Brass Contact, Black
  • Manufacturer: Eaton
  • Brand Name: EATON
  • Product Code: 4160958
  • Part Number: 1224821
  • MPN: 224-BOX
  • UPC: 032664480102
  • Min. Order Qty: 1
  • Qty. Interval: 1

EATON Straight Blade Connector, Non-Grounding Style, 125 VAC, 15 A, 2 Poles, Brass Contact, Thermoplastic Rubber Insulation, Black, Back Wired Wire Connection, NEMA Rating: NEMA 1-15R, 2-1/2 in Length, Additional Information: 1-1/2 in W x 1-1/2 in H Connector Dimension, 2-Wire, 18 to 10 AWG Wire Size, 14 lbf-in Torque Rating, ED Box Packaging Type

Additional Information      :      1-1/2 in W x 1-1/2 in H Connector Dimension, 2-Wire, 18 to 10 AWG Wire Size, 14 lbf-in Torque Rating, ED Box Packaging Type
Amperage Rating      :      15 A
Color      :      Black
Contact Material      :      Brass
Insulation Material      :      Thermoplastic Rubber
Length      :      2-1/2 in
NEMA Rating      :      NEMA 1-15R
Number of Poles      :      2
Style      :      Non-Grounding
Voltage Rating      :      125 VAC
Wire Connection Type      :      Back Wired
