Arrow Hart S80-SP 1223943

Arrow Hart 6857684

  1. pin-int

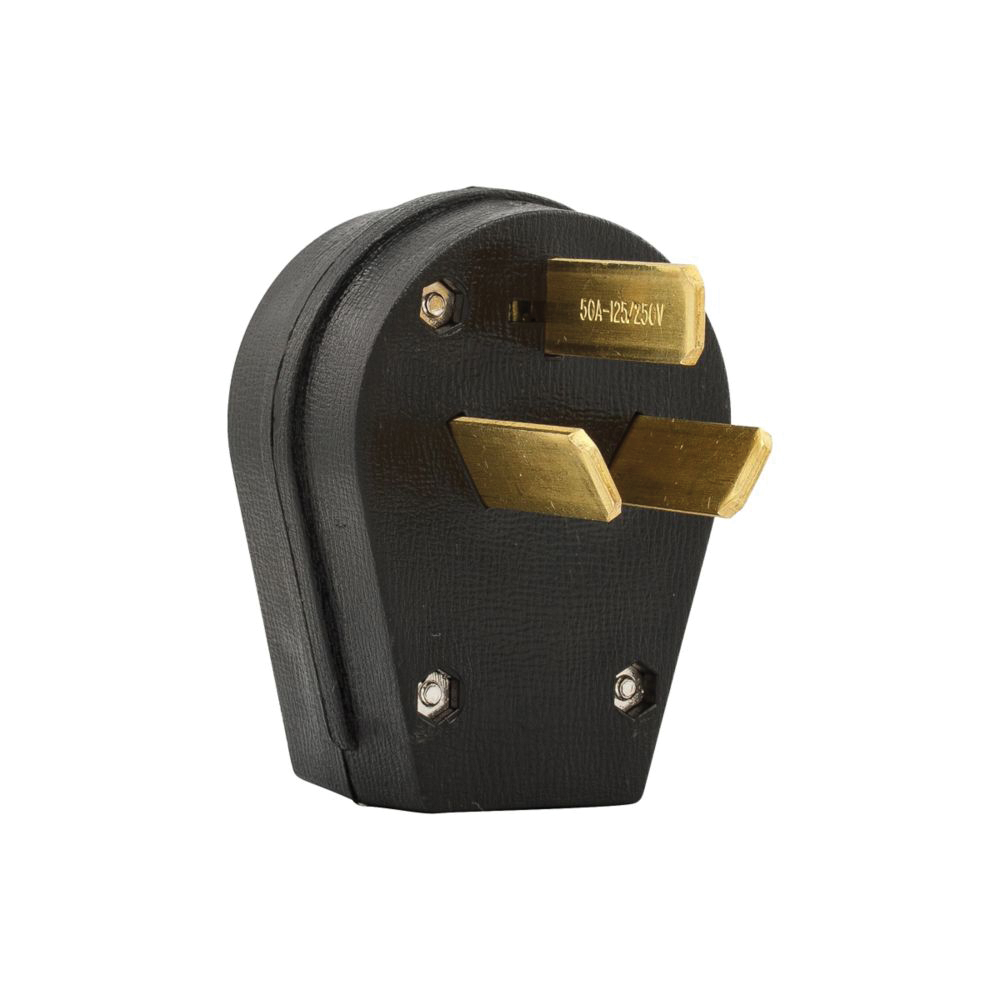

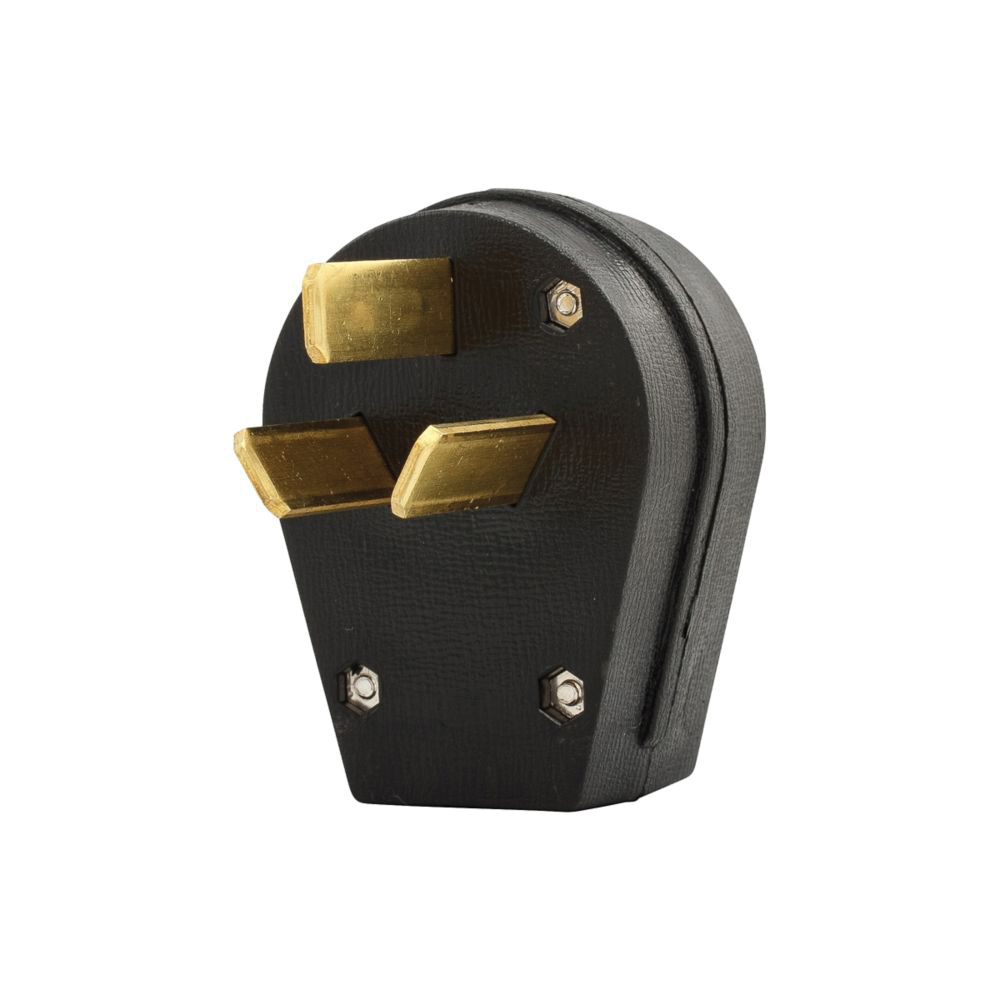

Arrow Hart S80-SP Angled Straight Blade Power Plug, 125/250 VAC, 30/50 A, 3-Pole, 3-Wire, Black
  • Manufacturer: Eaton
  • Brand Name: Arrow Hart
  • Product Code: 6857684
  • Part Number: 1223943
  • MPN: S80-SP
  • UPC: 032664517853
  • Min. Order Qty: 1
  • Qty. Interval: 1

Arrow Hart Angled Straight Blade Power Plug, 125/250 VAC, 30/50 A, 3 Pole, 3 Wires, 10 to 8 AWG Conductor, Heavy-Duty, Industrial Grade, 10-50P, NEMA 10-30P, Back Wired Terminal, Thermoplastic Housing, Brass Blade, Black, 2-1/2 in Length, 6 in Width, 10 in Height, Additional Information: 20 lbf-in Torque, Screw Connection

Additional Information      :      20 lbf-in Torque, Screw Connection
Amperage Rating      :      30/50 A
Blade Material      :      Brass
Color      :      Black
Conductor Size      :      10 to 8 AWG
Grade      :      Heavy-Duty, Industrial
Height      :      10 in
Housing Material      :      Thermoplastic
Length      :      2-1/2 in
NEMA Rating      :      10-50P, NEMA 10-30P
Number of Poles      :      3
Number of Wires      :      3
Terminal Type      :      Back Wired
Voltage Rating      :      125/250 VAC
Width      :      6 in
