EATON 1723-BOX 1224522

EATON 4181905

  1. pin-int

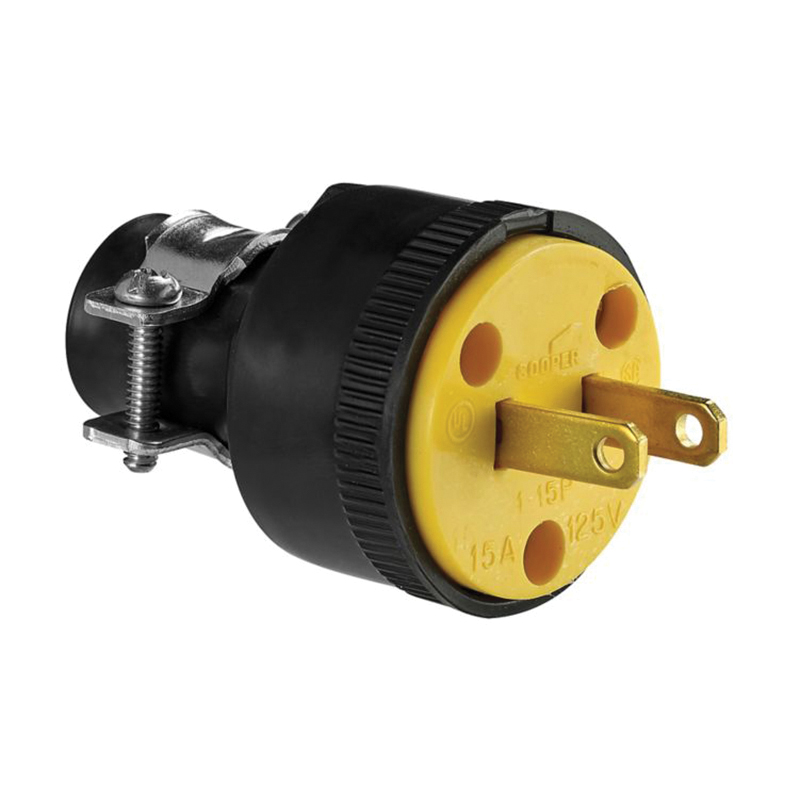

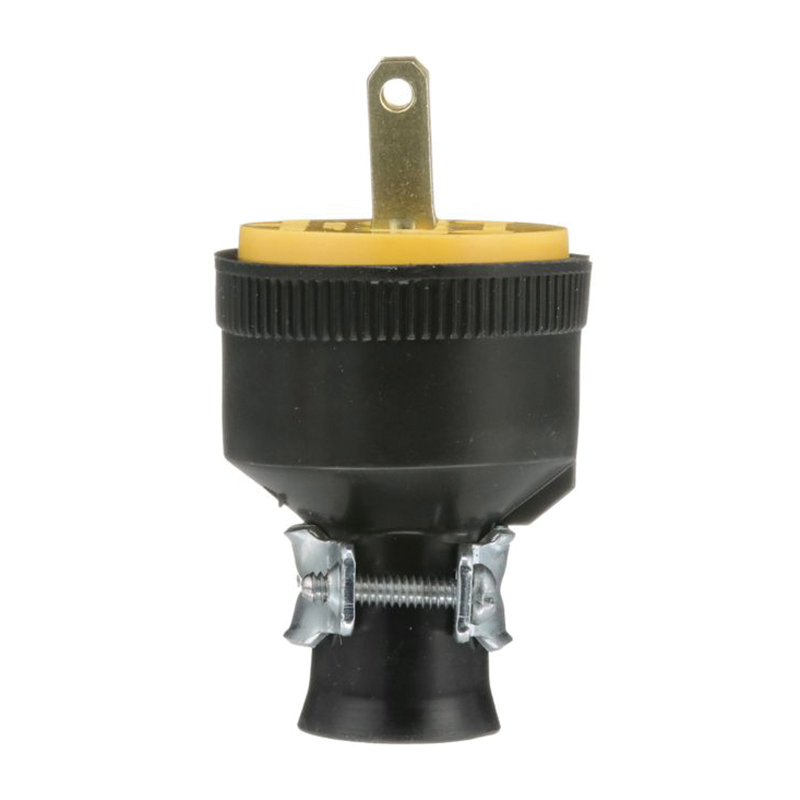

EATON 1723-BOX Non-Grounding Non-Polarized Straight Blade Plug, 125 VAC, 15 A, 2 -Pole, 2 -Wire, Black
  • Manufacturer: Eaton
  • Brand Name: EATON
  • Product Code: 4181905
  • Part Number: 1224522
  • MPN: 1723-BOX
  • UPC: 032664480607
  • Min. Order Qty: 1
  • Qty. Interval: 1

EATON Non-Grounding Non-Polarized Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, 18 to 10 AWG Conductor, Commercial Grade, NEMA Rating: NEMA 1-15P, Back Wired Terminal, Thermoplastic Rubber Housing, Brass Blade, Black, 2-3/4 in Length, 1-1/2 in Width, 1-1/2 in Height, Additional Information: 14 lbf-in Torque Rating, Screw Connection, ED Box Packaging Type

Additional Information      :      14 lbf-in Torque Rating, Screw Connection, ED Box Packaging Type
Amperage Rating      :      15 A
Blade Material      :      Brass
Color      :      Black
Conductor Size      :      18 to 10 AWG
Grade      :      Commercial
Height      :      1-1/2 in
Housing Material      :      Thermoplastic Rubber
Length      :      2-3/4 in
NEMA Rating      :      NEMA 1-15P
Number of Poles      :      2
Number of Wires      :      2
Terminal Type      :      Back Wired
Voltage Rating      :      125 VAC
Width      :      1-1/2 in
