EATON 1912W-BOX 1225517

EATON 6744171

  1. pin-int

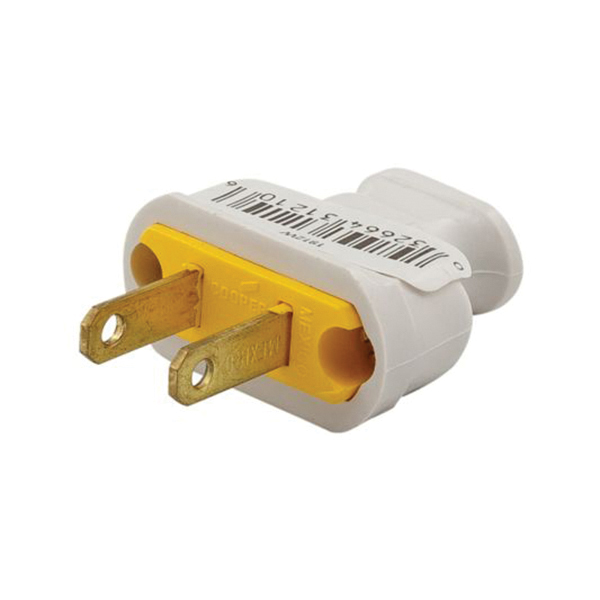

EATON 1912W-BOX Flat Handle Straight Blade Plug, 125 VAC, 15 A, 2 -Pole, 2 -Wire, White
  • Manufacturer: Eaton
  • Brand Name: EATON
  • Product Code: 6744171
  • Part Number: 1225517
  • MPN: 1912W-BOX
  • UPC: 032664312106
  • Min. Order Qty: 1
  • Qty. Interval: 1

EATON Flat Handle Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, 0.31 in Cord Diameter, 18 to 16 AWG Conductor, Commercial Grade, NEMA Rating: NEMA 1-15P, Back Wired Terminal, Thermoplastic Rubber Housing, Brass Blade, White, 0.92 in Length, 1.48 in Width, 1.98 in Height, Additional Information: 14 lbf-in Torque Rating, Screw Connection, ED Box Packaging Type

Additional Information      :      14 lbf-in Torque Rating, Screw Connection, ED Box Packaging Type
Amperage Rating      :      15 A
Blade Material      :      Brass
Color      :      White
Conductor Size      :      18 to 16 AWG
Cord Diameter      :      0.31 in
Grade      :      Commercial
Height      :      1.98 in
Housing Material      :      Thermoplastic Rubber
Length      :      0.92 in
NEMA Rating      :      NEMA 1-15P
Number of Poles      :      2
Number of Wires      :      2
Terminal Type      :      Back Wired
Voltage Rating      :      125 VAC
Width      :      1.48 in
  • pdfCatalog https://assets.unilogcorp.com/571/ITEM/DOC/EATON_1912W-BOX_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/EATON_1912W-BOX_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/ftbgLd9zkio
