Arrow Hart S42-SP 1226294

Arrow Hart 6409478

  1. pin-int

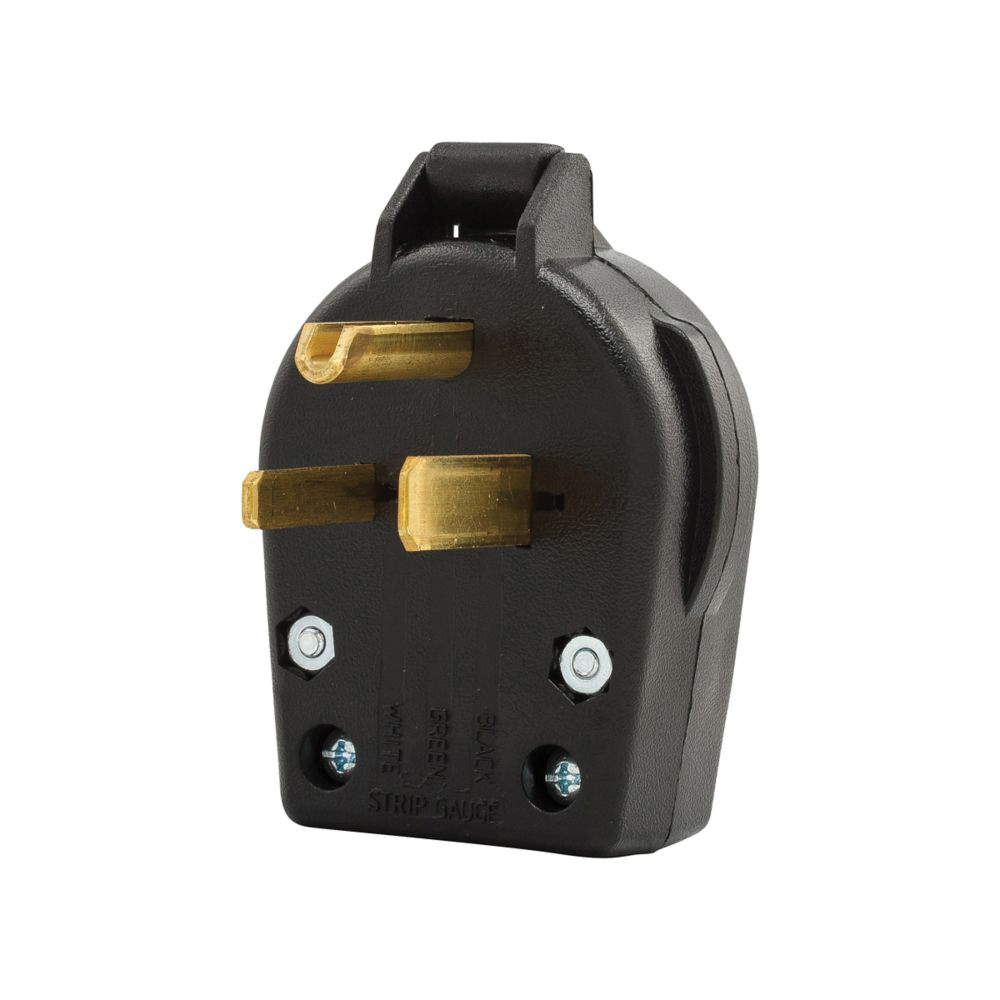

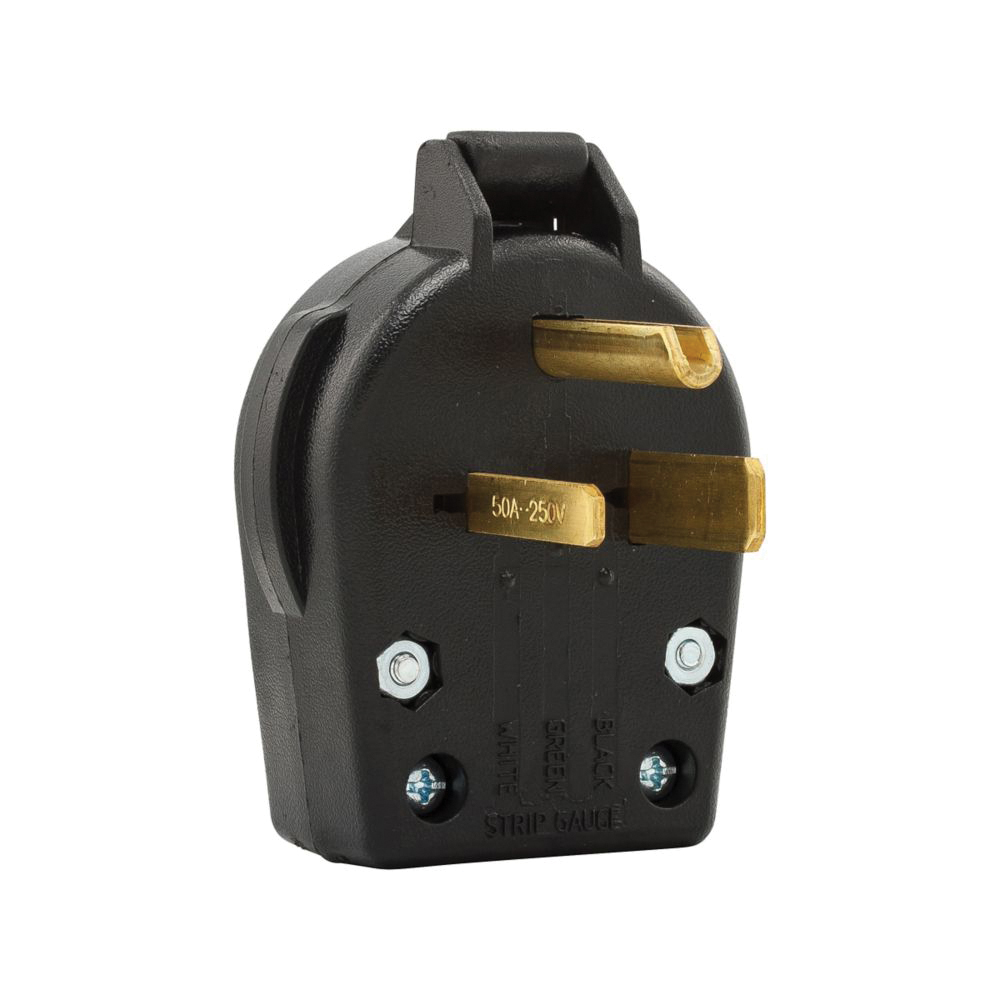

Arrow Hart S42-SP Angled Straight Blade Power Plug, 250 VAC, 30/50 A, 3 -Pole, 3 -Wire, Black
  • Manufacturer: Eaton
  • Brand Name: Arrow Hart
  • Product Code: 6409478
  • Part Number: 1226294
  • MPN: S42-SP
  • UPC: 032664517846
  • Min. Order Qty: 1
  • Qty. Interval: 1

Arrow Hart Angled Straight Blade Power Plug, 250 VAC, 30/50 A, 3 Poles, 3 Wires, 1.1 in Cord Diameter, 10 to 6 AWG Conductor, Heavy-Duty, Industrial Grade, NEMA Rating: 6-50P, NEMA 6-30P, Back Wired Terminal, PVC Housing, Brass Blade, Black, 1.38 in Length, 2.87 in Width, 3.37 in Height, Additional Information: 20 lbf-in Torque, Screw Connection

Additional Information      :      20 lbf-in Torque, Screw Connection
Amperage Rating      :      30/50 A
Blade Material      :      Brass
Color      :      Black
Conductor Size      :      10 to 6 AWG
Cord Diameter      :      1.1 in
Grade      :      Heavy-Duty, Industrial
Height      :      3.37 in
Housing Material      :      PVC
Length      :      1.38 in
NEMA Rating      :      6-50P, NEMA 6-30P
Number of Poles      :      3
Number of Wires      :      3
Terminal Type      :      Back Wired
Voltage Rating      :      250 VAC
Width      :      2.87 in
