Commercial and industrial power receptacles 50 A, 125/250 V NEMA 10-50 3-pole/3-wire. Heavy-duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.

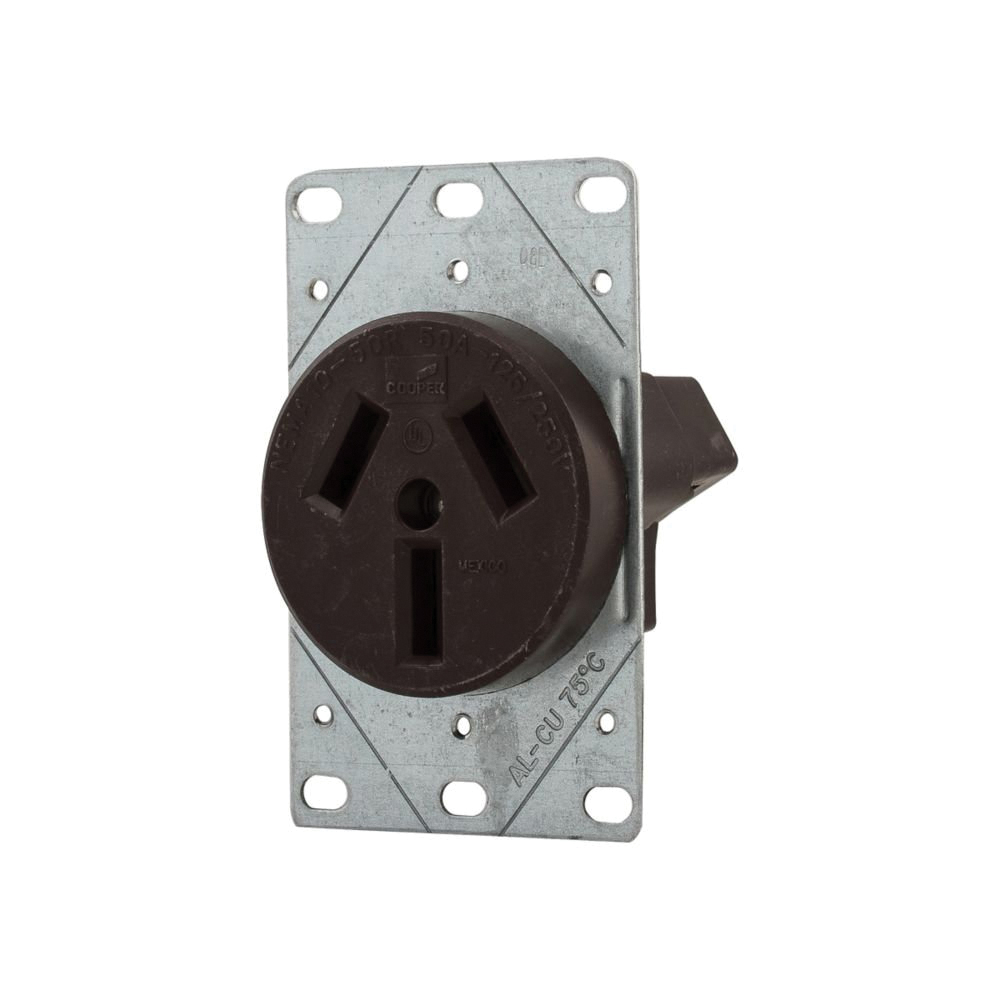

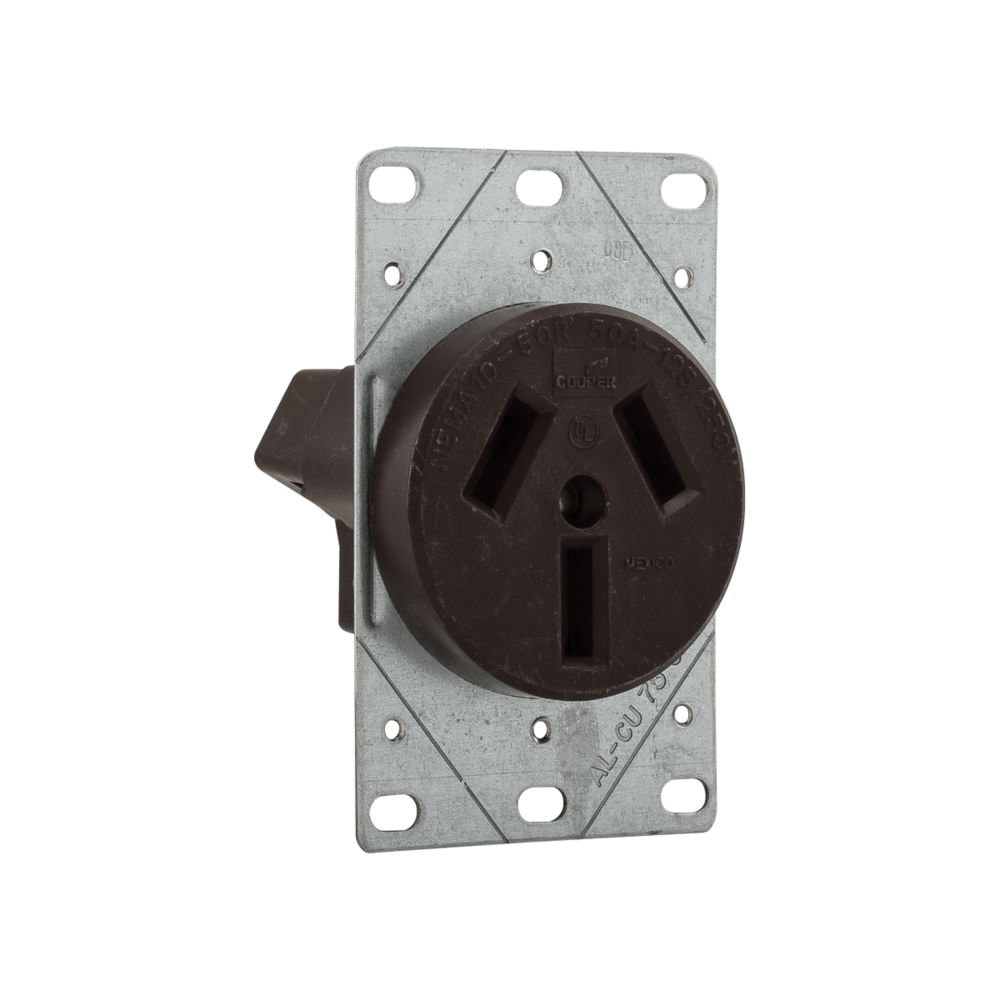

EATON Power Device Receptacle, 125/250 V, 50 A, 3 Poles, 3 Wires, NEMA Rating: NEMA 10-50R, 12 to 4 AWG Conductor, Flush Mounting, Connection Type: Plug, Glass Filled Nylon Housing, Brown, 8-1/2 in Length, 6 in Width, 2-1/4 in Height, Additional Information: 25 lb-in Torque Rating, Back Wiring Method
| Additional Information | : | 25 lb-in Torque Rating, Back Wiring Method |
| Amperage Rating | : | 50 A |
| Color | : | Brown |
| Conductor Size | : | 12 to 4 AWG |
| Connection Type | : | Plug |
| Height | : | 2-1/4 in |
| Housing Material | : | Glass Filled Nylon |
| Length | : | 8-1/2 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 10-50R |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Voltage Rating | : | 125/250 V |
| Width | : | 6 in |
