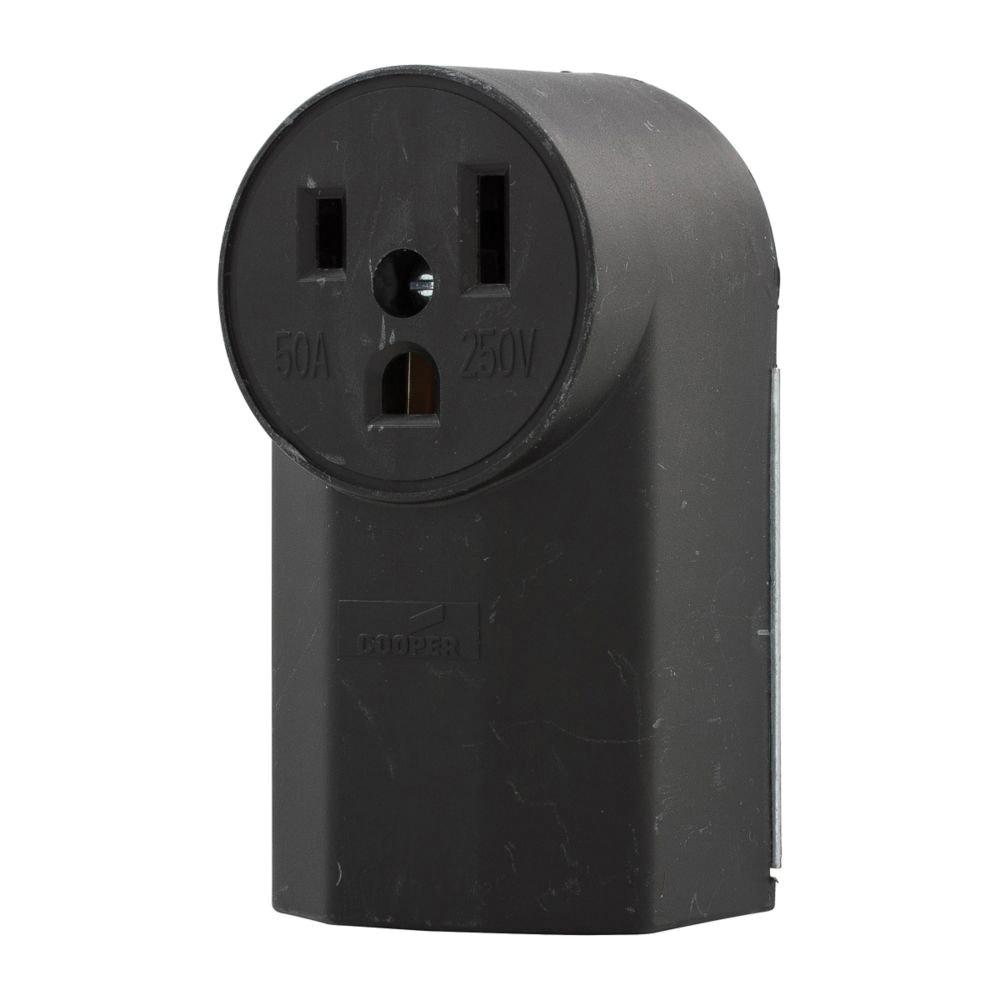

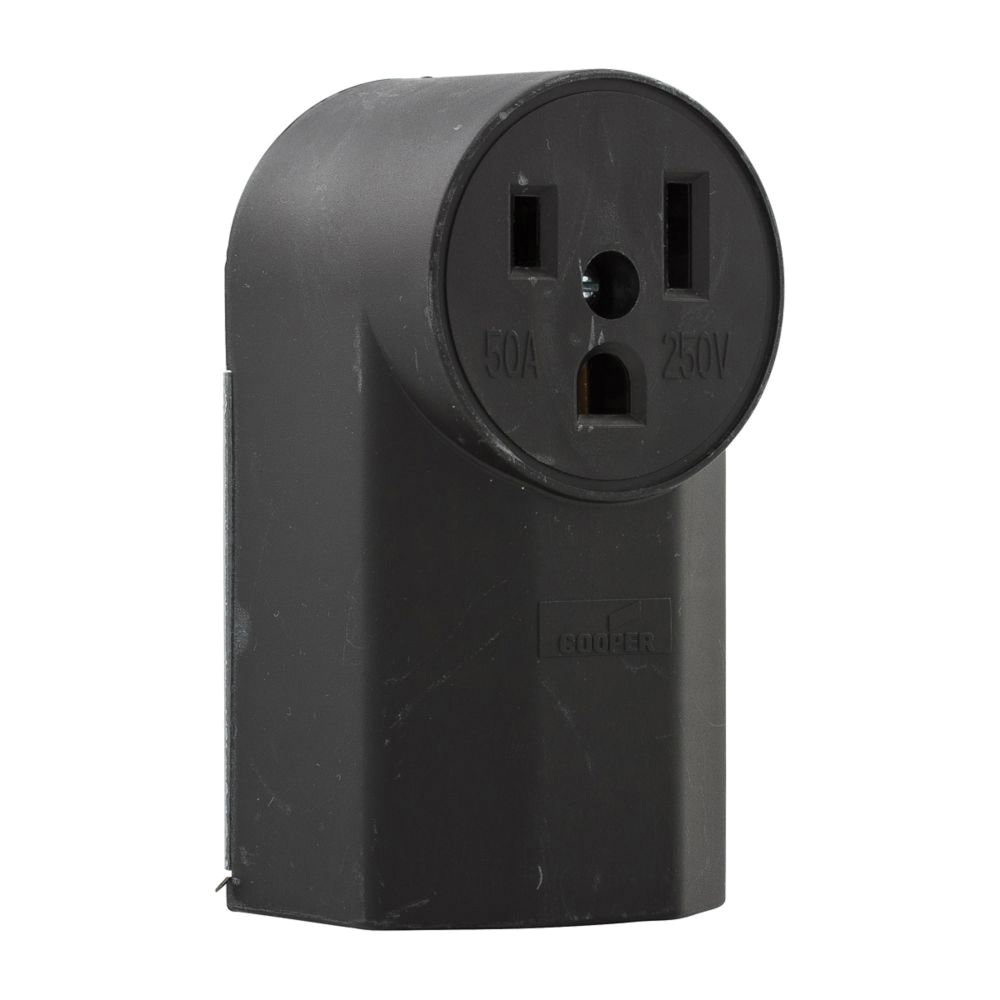

Commercial and industrial power receptacles 50 A, 250 V NEMA 6-50 2-pole/3-wire. Heavy-duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
EATON Power Device Receptacle, 250 V, 50 A, 2 Poles, 3 Wires, NEMA Rating: NEMA 6-50R, 12 to 4 AWG Conductor, Surface Mounting, Glass Filled Nylon Housing, Black, 2-1/4 in Length, 5 in Width, 9 in Height, Additional Information: 25 lb-in Torque Rating, Back/Bottom Wiring Method
| Additional Information | : | 25 lb-in Torque Rating, Back/Bottom Wiring Method |
| Amperage Rating | : | 50 A |
| Color | : | Black |
| Conductor Size | : | 12 to 4 AWG |
| Height | : | 9 in |
| Housing Material | : | Glass Filled Nylon |
| Length | : | 2-1/4 in |
| Mounting Type | : | Surface |
| NEMA Rating | : | NEMA 6-50R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Voltage Rating | : | 250 V |
| Width | : | 5 in |
