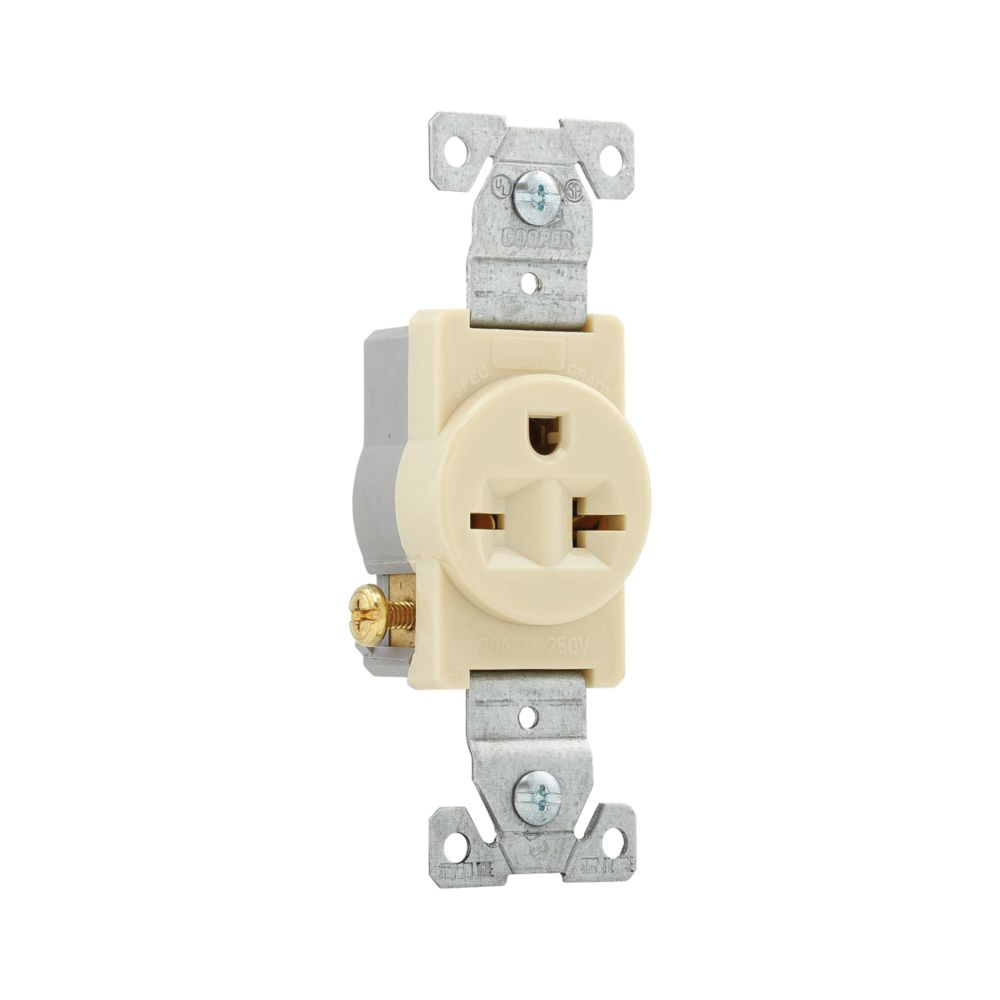

EATON Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Commercial Grade, NEMA Rating: NEMA 6-20R, Auto-Grounding Grounding, Side Wired Terminal, 14 to 10 AWG Conductor, Flush Mounting, Screw Connection, Nylon/PVC Housing, Brass Contact, Steel Strap, Ivory, -4 to 140 deg F, 1.31 in Length, 0.83 in Width, 4.19 in Height, Additional Information: 14 lbf-in Torque Rating, Steel Ground Screw, Brass-Plated Hot Steel Terminal Screw, ED Box Packaging Type
| Additional Information | : | 14 lbf-in Torque Rating, Steel Ground Screw, Brass-Plated Hot Steel Terminal Screw, ED Box Packaging Type |
| Amperage Rating | : | 20 A |
| Color | : | Ivory |
| Conductor Size | : | 14 to 10 AWG |
| Connection Type | : | Screw |
| Contact Material | : | Brass |
| Grade | : | Commercial |
| Grounding | : | Auto-Grounding |
| Height | : | 4.19 in |
| Housing Material | : | Nylon/PVC |
| Length | : | 1.31 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 6-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -4 to 140 deg F |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 250 VAC |
| Width | : | 0.83 in |
