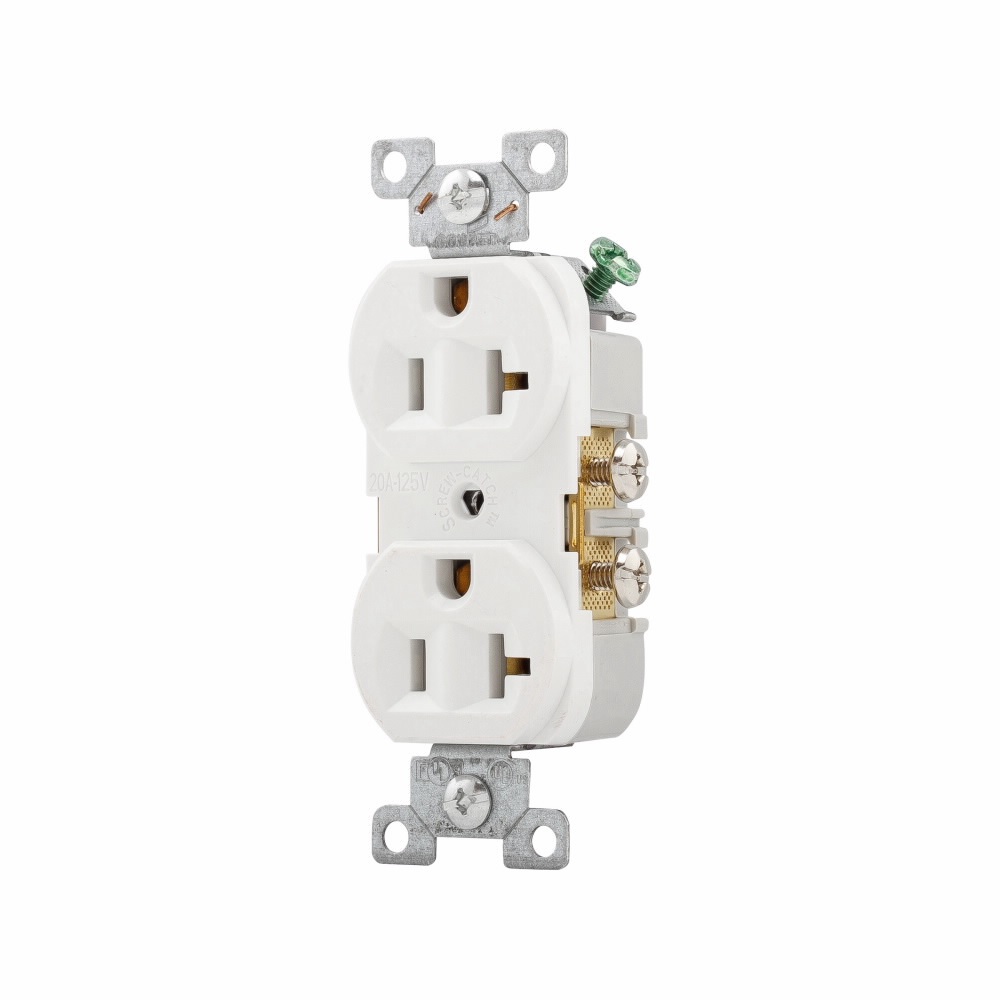

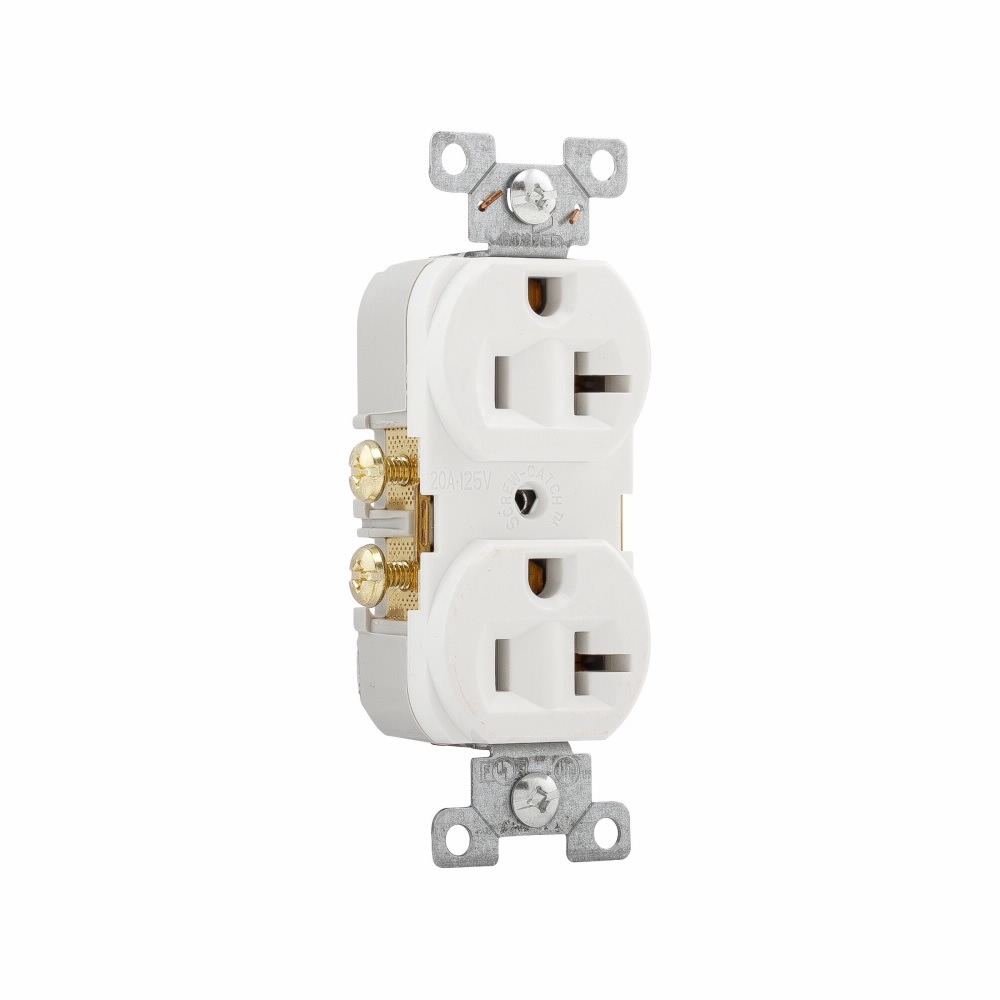

Arrow Hart Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Commercial, Specification Grade, NEMA Rating: NEMA 5-20R, 2000 V Dielectric Strength, Grounding Grounding, Side Wired Terminal, 14 to 10 AWG Conductor, Flush Mounting, PVC Housing, Brass Contact, Steel Strap, White, -20 to 60 deg C, 4 in Length, 0.79 in Width, 1.24 in Height
| Amperage Rating | : | 20 A |
| Color | : | White |
| Conductor Size | : | 14 to 10 AWG |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Commercial, Specification |
| Grounding | : | Grounding |
| Height | : | 1.24 in |
| Housing Material | : | PVC |
| Length | : | 4 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -20 to 60 deg C |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 0.79 in |
