GB® switches are available in many different styles and sizes. They are used in countless applications, from basic On-Off to multi-function applications. Most of our electrical switches are suitable for marine, industrial or automotive applications. They are available in a variety of characteristics including actuator-type, handle shape, body construction and size, terminal-type, voltage rating, sealing properties and illumination. GB® switches are leading the industry in quality and durability.

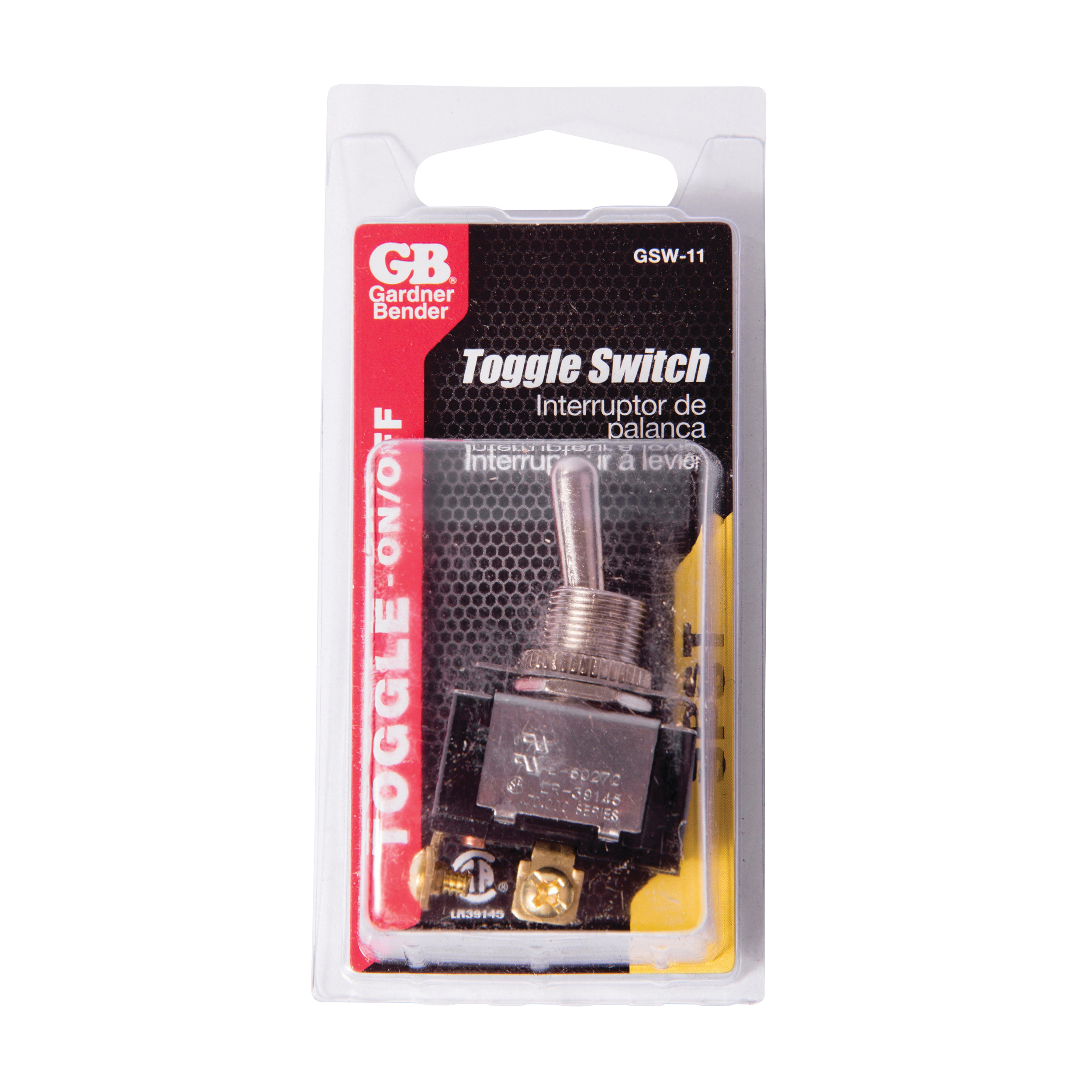

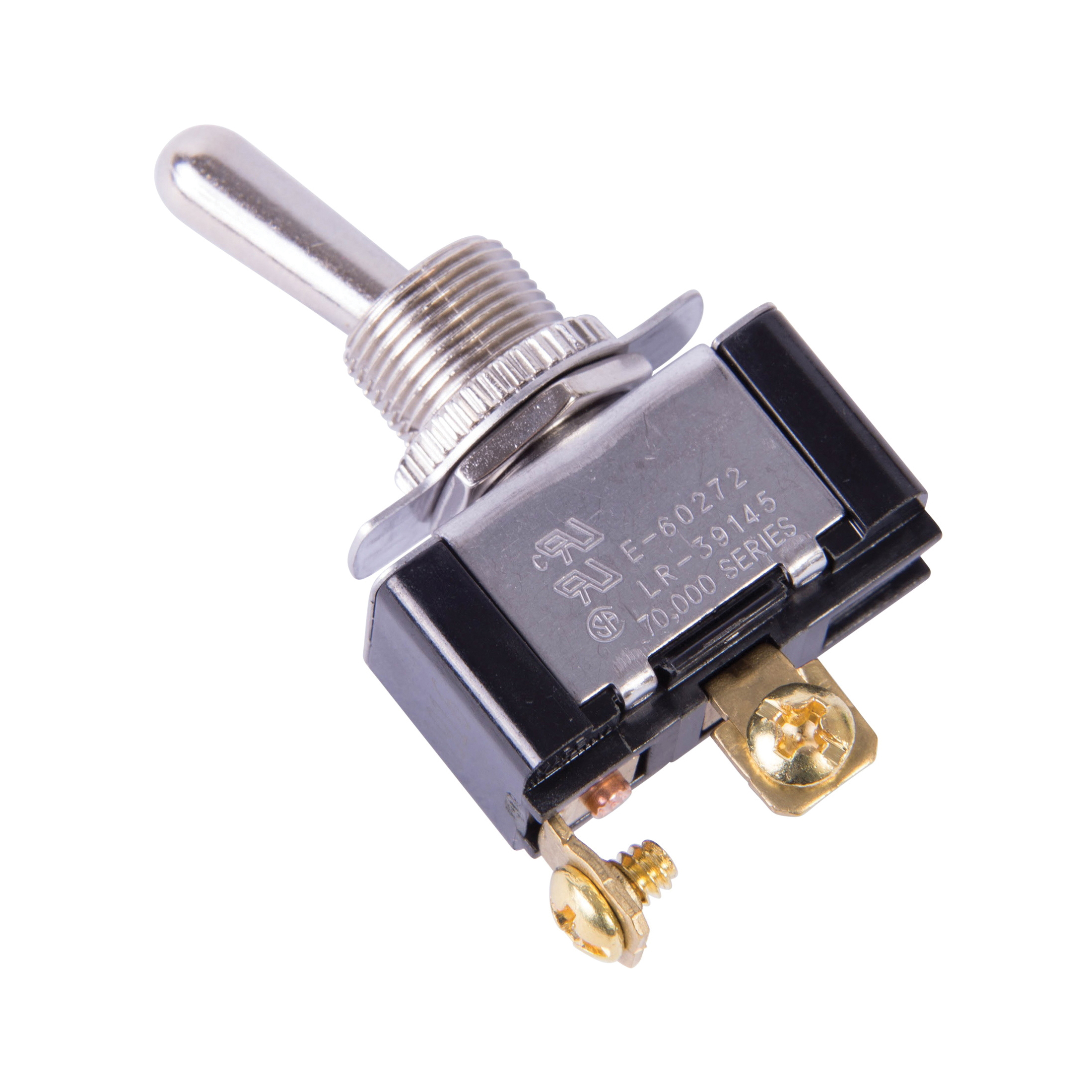

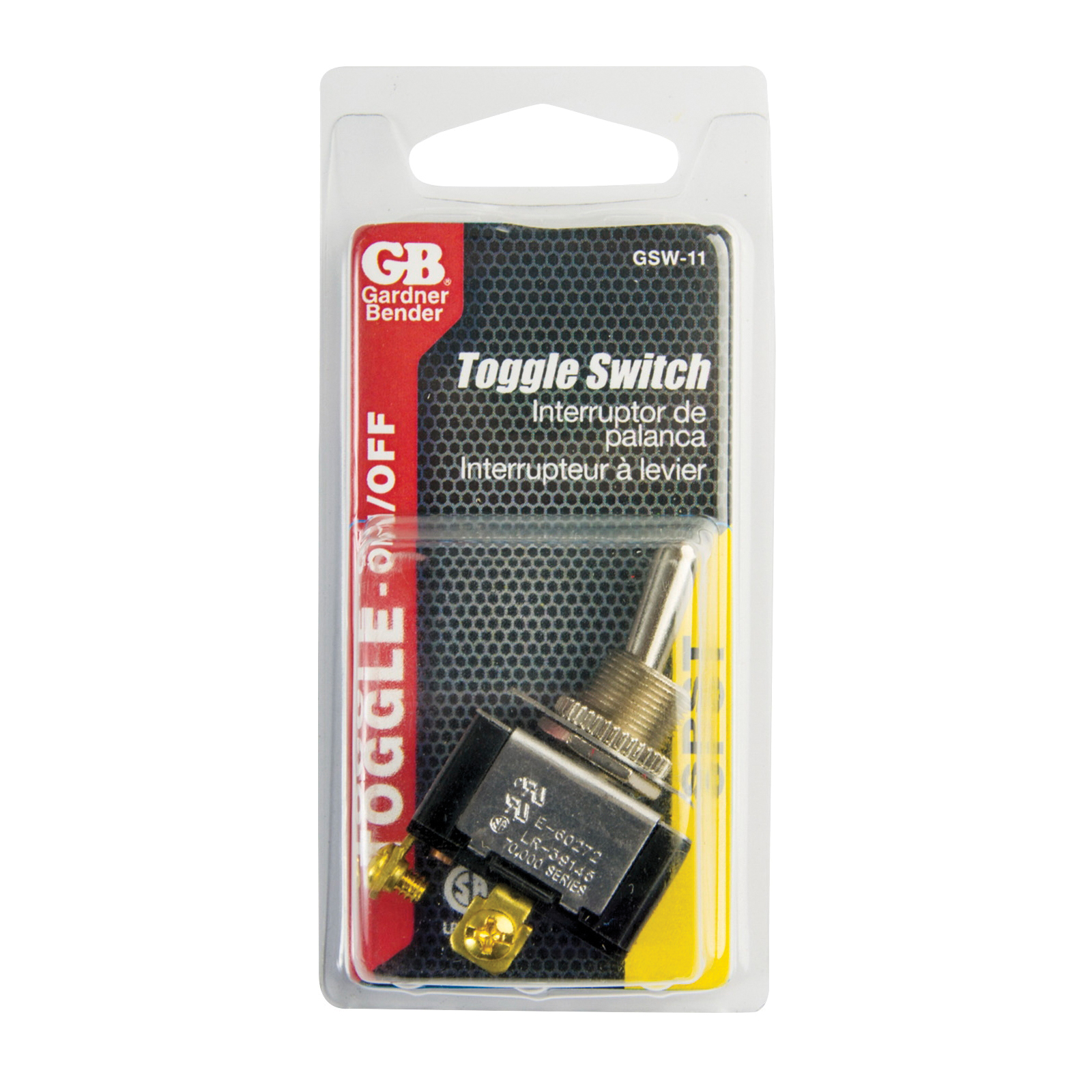

GB® Toggle Switch, 125/250 VAC, 20 A, 3/4 hp, Contact Configuration: SPST, Screw Connection, 1 Poles, 2 Positions, On-Off Action, 1500 V Dielectric Strength, Chrome, Finish: Nickel-Plated, 75 deg C, 1/2 in Height, 1.13 in Width, 2 in Depth
| Action Type | : | On-Off |
| Amperage Rating | : | 20 A |
| Color | : | Chrome |
| Connection Type | : | Screw |
| Contact Configuration | : | SPST |
| Depth | : | 2 in |
| Dielectric Strength | : | 1500 V |
| Finish | : | Nickel-Plated |
| Height | : | 1/2 in |
| Number of Poles | : | 1 |
| Number of Positions | : | 2 |
| Power Rating | : | 3/4 hp |
| Temperature Rating | : | 75 deg C |
| Voltage Rating | : | 125/250 VAC |
| Width | : | 1.13 in |
