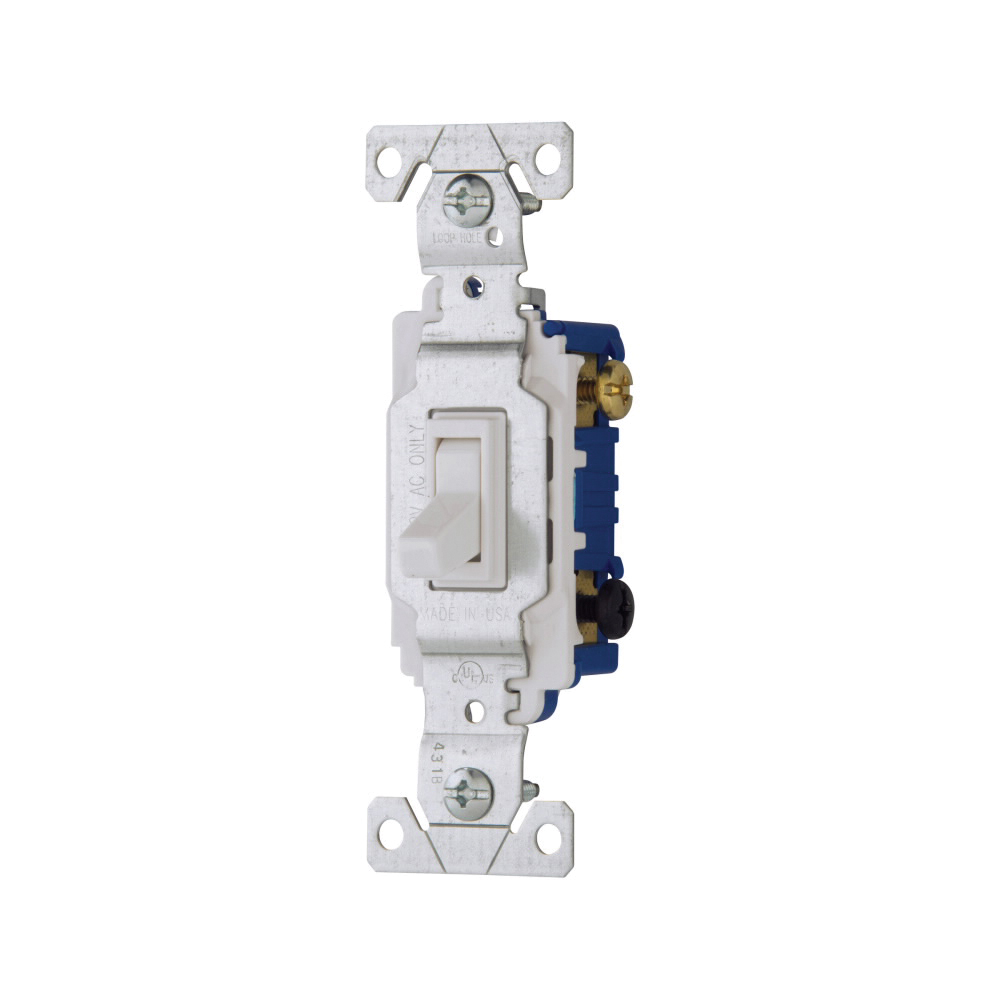

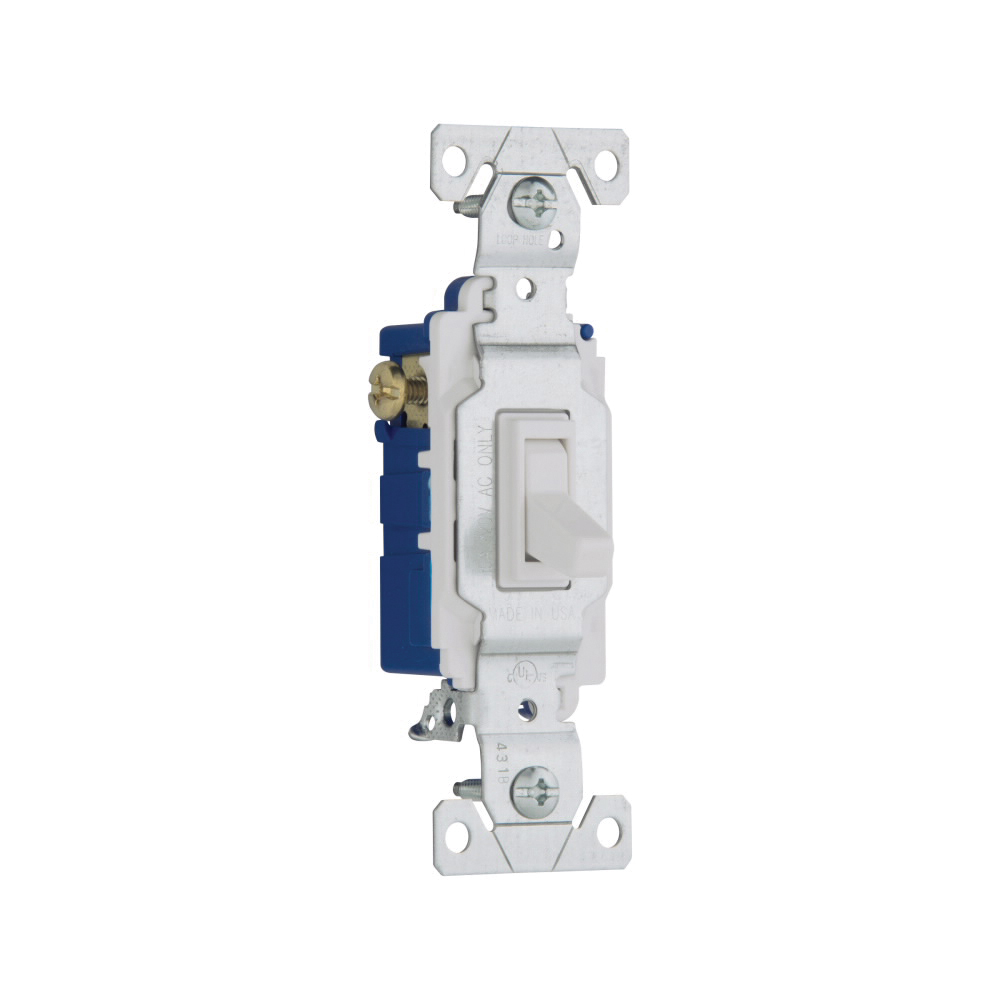

EATON 1300 Series 1303W 3-Way Toggle Switch, 120 V, 15 A
  • Manufacturer: Eaton
  • Brand Name: EATON
  • Product Code: 6971337
  • Part Number: 1223842
  • MPN: 1303W
  • UPC: 032664308703
  • Min. Order Qty: 1
  • Qty. Interval: 1

EATON 3-Way Toggle Switch, Series: 1300 Series, 120 V, 15 A, 1 Pole, Residential Grade, Wall Mount, Polycarbonate Body, Nylon/Thermoplastic Toggle Material, Silver Contact, 14 to 10 AWG Wire, White, -20 to 60 deg C, 4.2 in Height, 1.44 in Width, Additional Information: 14 lbf/in Torque, Galvanized Steel Strap

Additional Information      :      14 lbf/in Torque, Galvanized Steel Strap
Amperage Rating      :      15 A
Body Material      :      Polycarbonate
Color      :      White
Contact Material      :      Silver
Grade      :      Residential
Height      :      4.2 in
Mounting Type      :      Wall
Number of Poles      :      1
Series      :      1300 Series
Temperature Rating      :      -20 to 60 deg C
Toggle Material      :      Nylon/Thermoplastic
Voltage Rating      :      120 V
Width      :      1.44 in
Wire Size      :      14 to 10 AWG
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/EATON_1303V_BOX_Specification_Sheet.pdf
