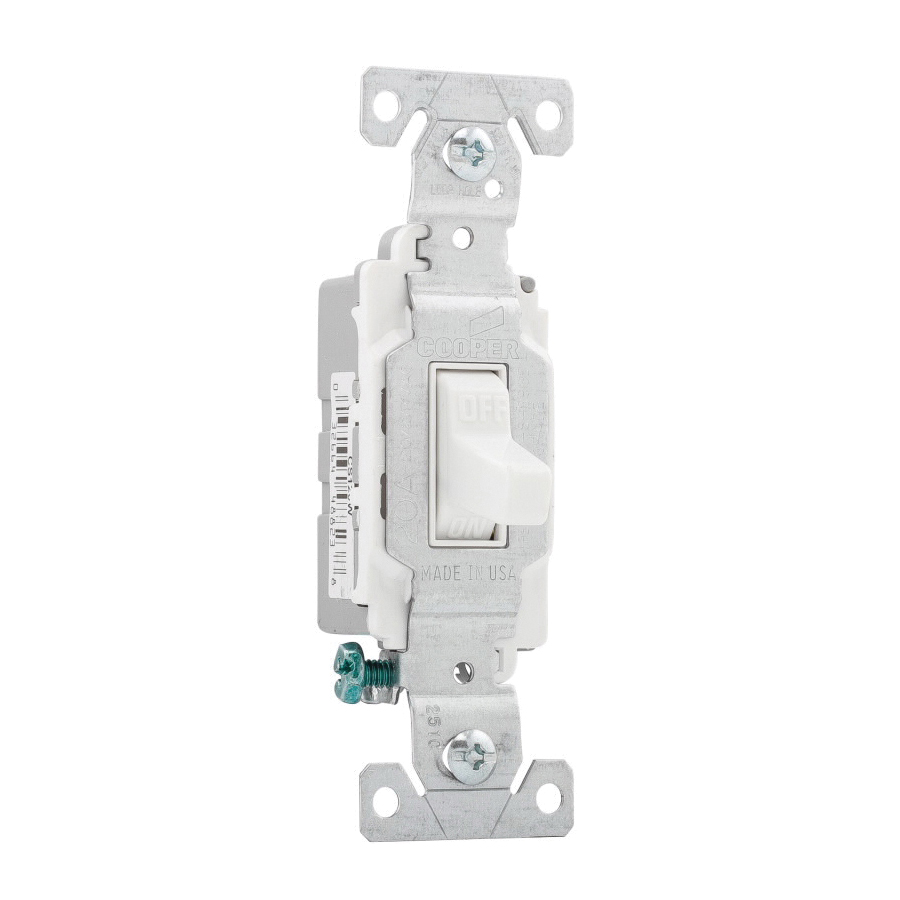

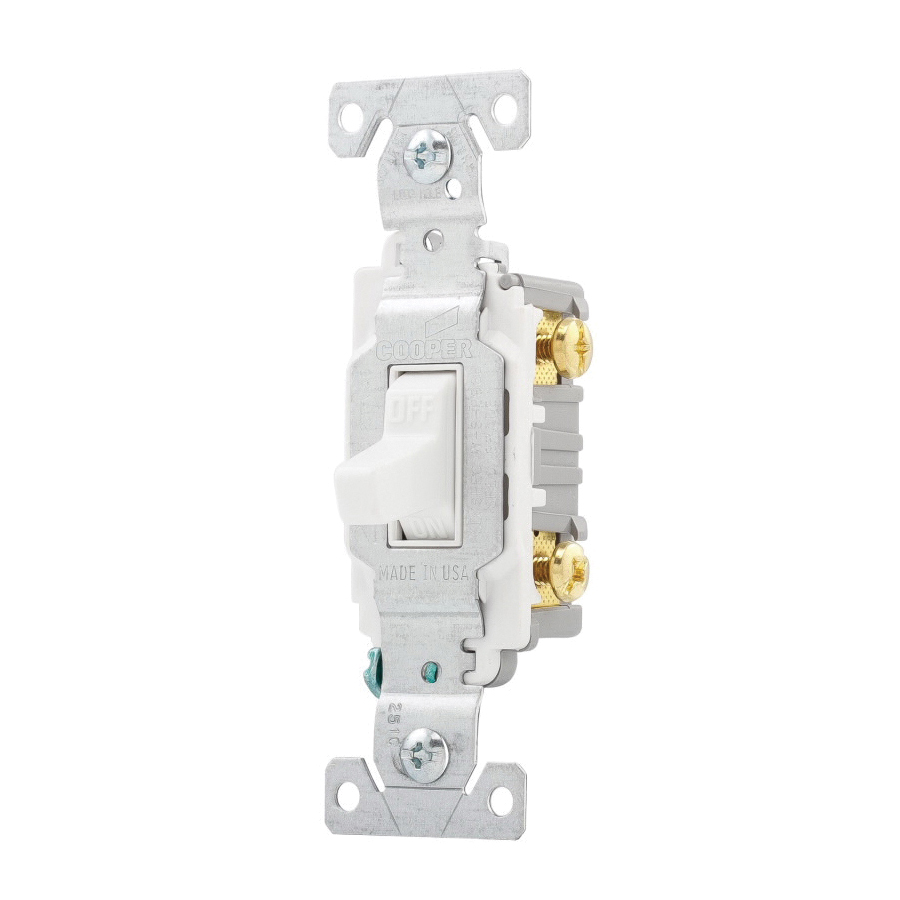

EATON CS Series CS120W Toggle Switch, 120/277 V, 20 A
  • Manufacturer: Eaton
  • Brand Name: EATON
  • Product Code: 4376422
  • Part Number: 1226089
  • MPN: CS120W
  • UPC: 032664488238
  • Min. Order Qty: 1
  • Qty. Interval: 1

EATON Toggle Switch, Series: CS Series, 120/277 V, 20 A, Screw Connection Type, 1 Pole, Commercial Grade, Flush Mount, 50000 cycles Operating Cycles, PVC Body, Nylon Toggle Material, Silver Alloy Contact, Nylon Actuator Material, 1500 V Dielectric, 14 to 10 AWG Wire, White, -4 to 140 deg F, 4.2 in Height, 0.902 in Width, 1.3 in D

Actuator Material      :      Nylon
Amperage Rating      :      20 A
Body Material      :      PVC
Color      :      White
Connection Type      :      Screw
Contact Material      :      Silver Alloy
Depth      :      1.3 in
Dielectric Strength      :      1500 V
Grade      :      Commercial
Height      :      4.2 in
Mounting Type      :      Flush
Number of Poles      :      1
Operating Cycles      :      50000 cycles
Series      :      CS Series
Temperature Rating      :      -4 to 140 deg F
Toggle Material      :      Nylon
Voltage Rating      :      120/277 V
Width      :      0.902 in
Wire Size      :      14 to 10 AWG
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/EATON_CS120W_Specification_Sheet.pdf
