National Hardware™ N146-373 1023195

National Hardware™ 7156615

  1. pin-int

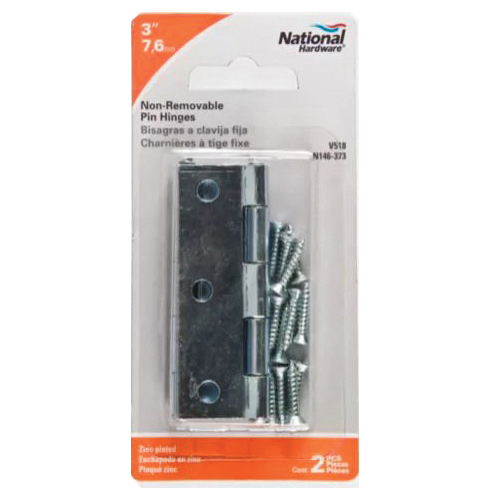

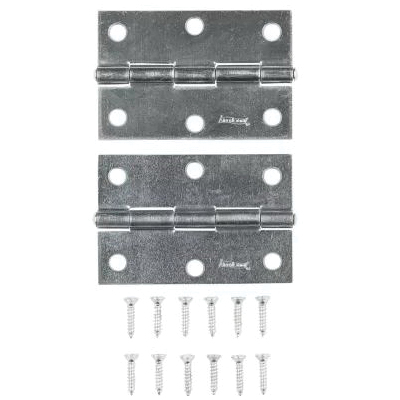

National Hardware™ N146-373 Square Hinge, 3 in H Frame Leaf, 0.065 in T Frame Leaf, Steel, Zinc-Plated, 5 -Knuckle
  • Manufacturer: ASSA ABLOY
  • Brand Name: National Hardware™
  • Product Code: 7156615
  • Part Number: 1023195
  • MPN: N146-373
  • UPC: 038613146372
  • Min. Order Qty: 1
  • Qty. Interval: 1

National Hardware™ Square Hinge, 28 lb Weight, 3 in Door Leaf Height, 0.065 in Door Leaf Thickness, 3 in Frame Leaf Height, 0.065 in Frame Leaf Thickness, 5 Knuckles, Non-Removable, Tight Pin, 0.106 in Pin Diameter, Left, Right, Mortise Mounting, 6 Mounting Holes, 0.23 in Mounting Hole Diameter, 1.188 in Hole Spacing, Steel, Finish: Zinc-Plated, 3 in Overall Height, 3 in Overall Width

Door Leaf Height      :      3 in
Door Leaf Thickness      :      0.065 in
Finish      :      Zinc-Plated
Frame Leaf Height      :      3 in
Frame Leaf Thickness      :      0.065 in
Hole Spacing      :      1.188 in
Material      :      Steel
Mounting Hole Diameter      :      0.23 in
Mounting Type      :      Mortise
Number of Knuckles      :      5
Number of Mounting Holes      :      6
Orientation      :      Left, Right
Overall Height      :      3 in
Overall Width      :      3 in
Pin Diameter      :      0.106 in
Pin Type      :      Non-Removable, Tight
Weight Capacity      :      28 lb
