National Hardware™ N145-946 1023386

National Hardware™ 7156532

  1. pin-int

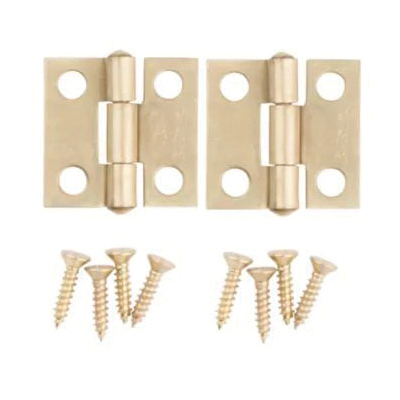

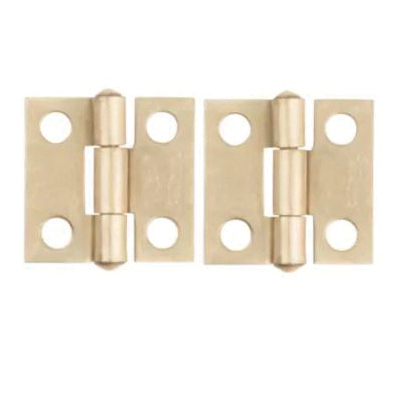

National Hardware™ N145-946 Square Hinge, 1 in H Frame Leaf, 0.045 in T Frame Leaf, Steel, Brass, 3 -Knuckle
  • Manufacturer: ASSA ABLOY
  • Brand Name: National Hardware™
  • Product Code: 7156532
  • Part Number: 1023386
  • MPN: N145-946
  • UPC: 038613145948
  • Min. Order Qty: 1
  • Qty. Interval: 1

National Hardware™ Square Hinge, 7 lb Weight, 1 in Door Leaf Height, 0.045 in Door Leaf Thickness, 1 in Frame Leaf Height, 0.045 in Frame Leaf Thickness, 3 Knuckles, Non-Removable, Tight Pin, 0.106 in Pin Diameter, Left, Right, Mortise Mounting, 4 Mounting Holes, 0.165 in Mounting Hole Diameter, 5/8 in Hole Spacing, Steel, Finish: Brass, 1 in Overall Height, 1 in Overall Width

Door Leaf Height      :      1 in
Door Leaf Thickness      :      0.045 in
Finish      :      Brass
Frame Leaf Height      :      1 in
Frame Leaf Thickness      :      0.045 in
Hole Spacing      :      5/8 in
Material      :      Steel
Mounting Hole Diameter      :      0.165 in
Mounting Type      :      Mortise
Number of Knuckles      :      3
Number of Mounting Holes      :      4
Orientation      :      Left, Right
Overall Height      :      1 in
Overall Width      :      1 in
Pin Diameter      :      0.106 in
Pin Type      :      Non-Removable, Tight
Weight Capacity      :      7 lb
