National Hardware™ 7160583

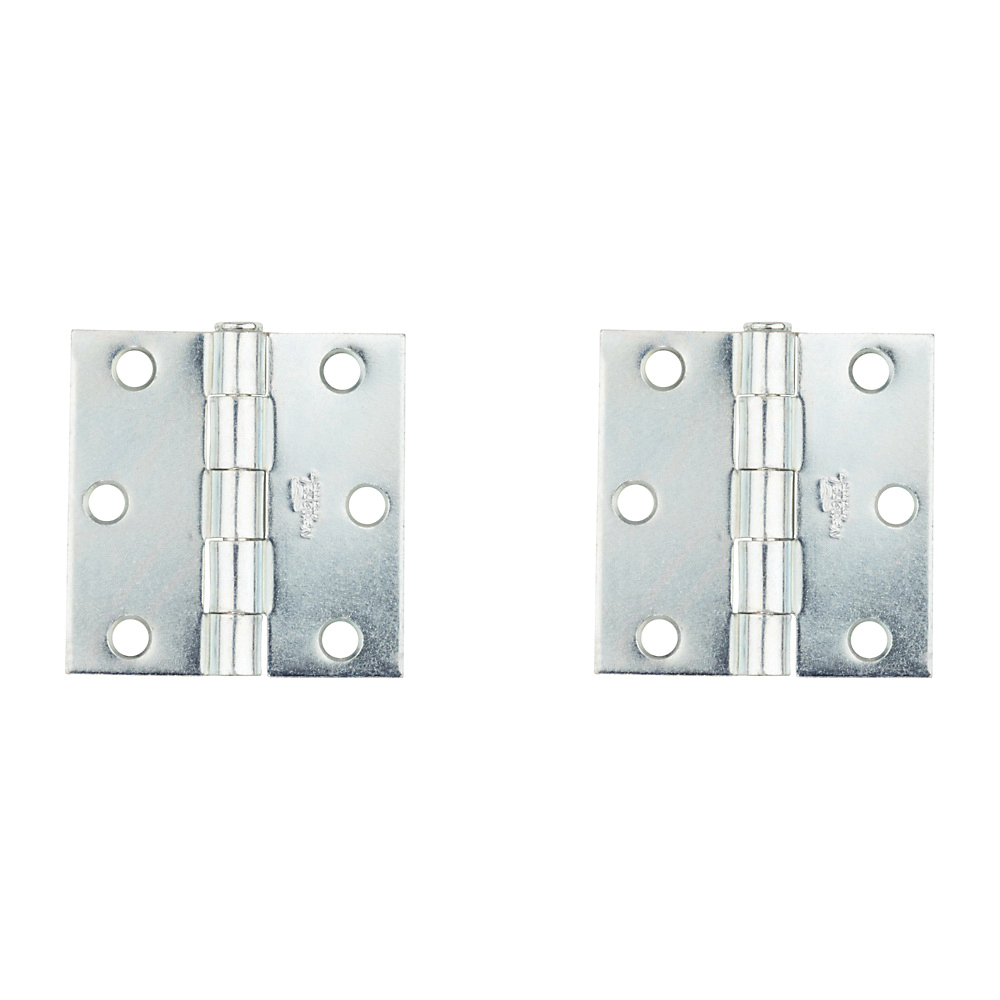

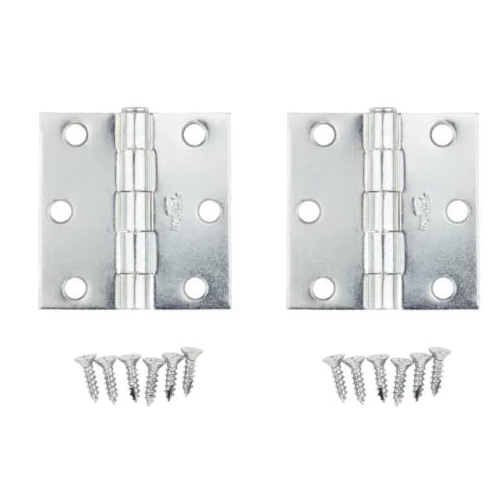

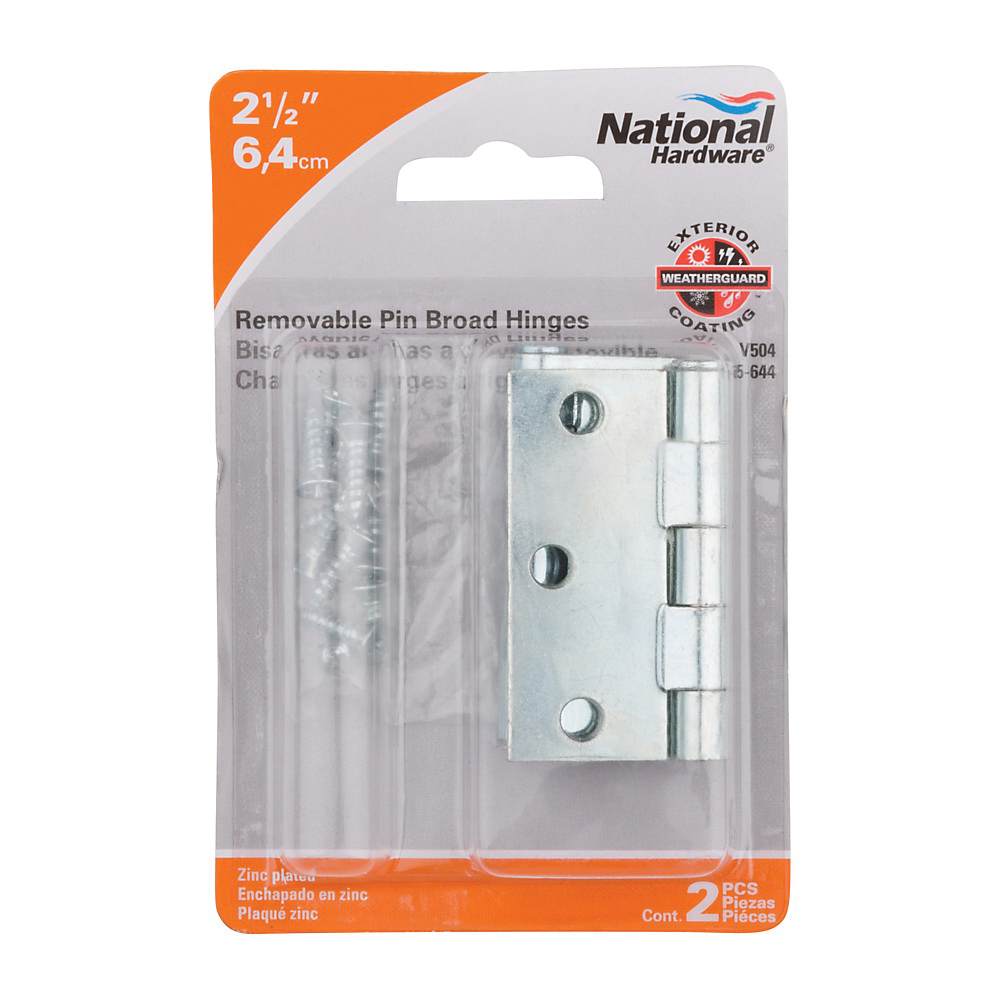

National Hardware™ WeatherGuard™ N195-644 Broad Hinge, 2-1/2 in H Frame Leaf, 0.077 in T Frame Leaf, Steel, Zinc-Plated
- Manufacturer: ASSA ABLOY
- Brand Name: National Hardware™
- Product Code: 7160583
- Part Number: 1023866
- MPN: N195-644
- UPC: 038613195646
- Min. Order Qty: 1
- Qty. Interval: 1
-
- Availability: Sign In for Availability
Swaged for mortise installations
National Hardware™ Broad Hinge, 43 lb Weight, 2-1/2 in Door Leaf Height, 0.077 in Door Leaf Thickness, 2-1/2 in Frame Leaf Height, 0.077 in Frame Leaf Thickness, 5 Knuckles, Loose, Removable Pin, 0.27 in Pin Diameter, Full Mortise Mounting, 6 Mounting Holes, 9/32 in Mounting Hole Diameter, 31/32 in Hole Spacing, Steel, Finish: Zinc-Plated, 2-1/2 in Overall Height, 2-1/2 in Overall Width
| Door Leaf Height | : | 2-1/2 in |
| Door Leaf Thickness | : | 0.077 in |
| Finish | : | Zinc-Plated |
| Frame Leaf Height | : | 2-1/2 in |
| Frame Leaf Thickness | : | 0.077 in |
| Hole Spacing | : | 31/32 in |
| Material | : | Steel |
| Mounting Hole Diameter | : | 9/32 in |
| Mounting Type | : | Full Mortise |
| Number of Knuckles | : | 5 |
| Number of Mounting Holes | : | 6 |
| Overall Height | : | 2-1/2 in |
| Overall Width | : | 2-1/2 in |
| Pin Diameter | : | 0.27 in |
| Pin Type | : | Loose, Removable |
| Weight Capacity | : | 43 lb |
Full Engineering Drawing
