Richelieu 17RFB10R 1221009

Richelieu PDH17RFB10R

  1. pin-int

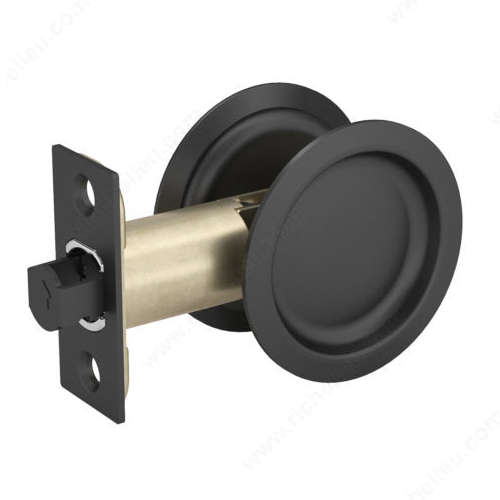

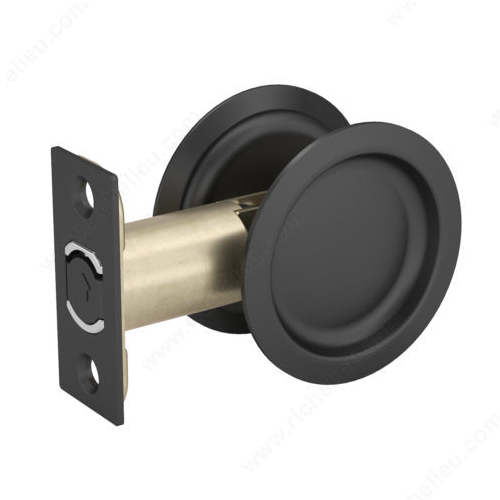

Richelieu 17RFB10R Pocket Door Pull, Passage, Round, Steel, Flat Black, 1-3/8 in T Door, Flush Installation
  • Manufacturer: Richelieu Hardware
  • Brand Name: Richelieu
  • Product Code: PDH17RFB10R
  • Part Number: 1221009
  • MPN: 17RFB10R
  • Min. Order Qty: 1
  • Qty. Interval: 1

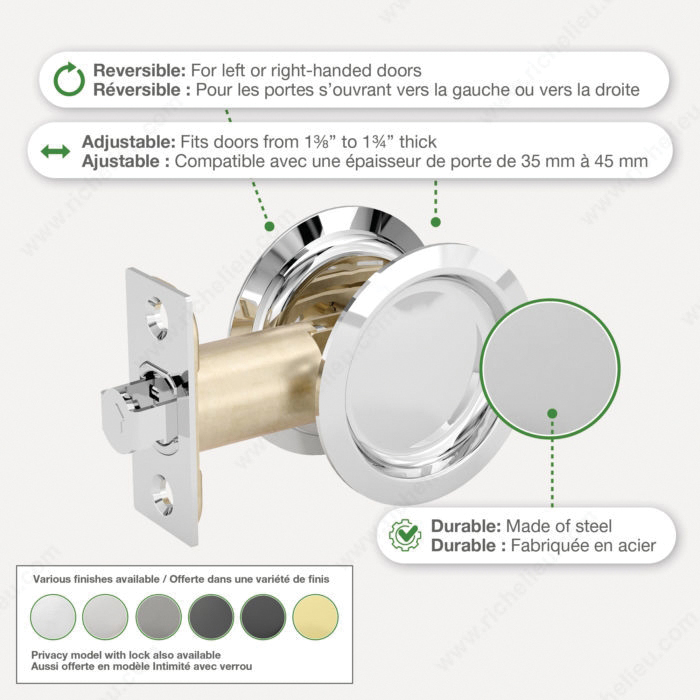

Designed for use on most types of doors, this pocket door pull is available in a variety of finishes to suit any design. Easy to install and a great option for many doors.

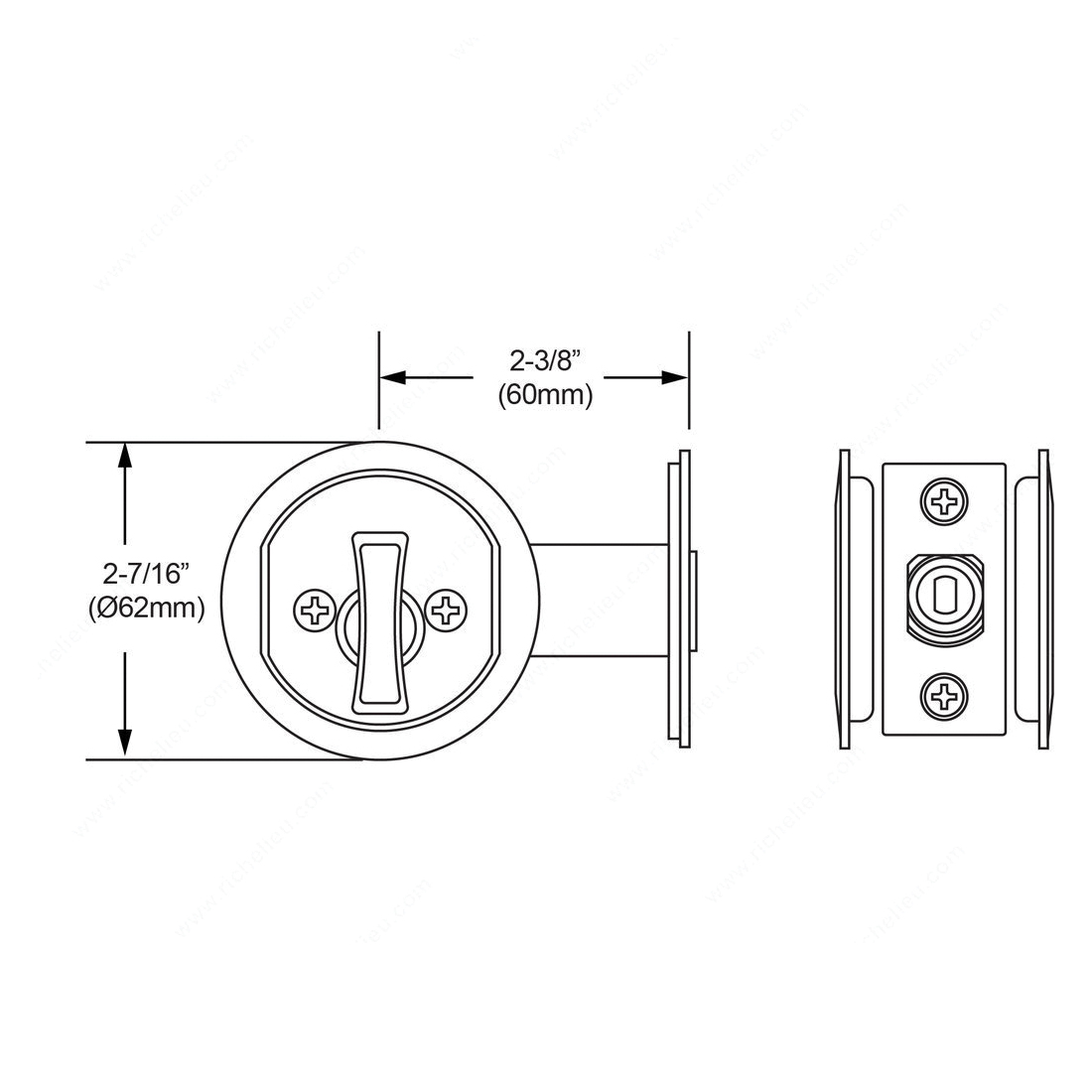

Richelieu Pocket Door Pull, Round, Passage Functions, 2-3/8 in Backset, 1-3/8 in Door Thickness, Reversible Door Handing, Steel, Finish: Flat Black, Flush Installation, 2-7/16 in Diameter, 3-1/2 in Length, 2-7/16 in Width, 2-7/16 in Height

Backset Size      :      2-3/8 in
Design/Pattern      :      Round
Diameter      :      2-7/16 in
Door Handing      :      Reversible
Door Thickness      :      1-3/8 in
Finish      :      Flat Black
Functions      :      Passage
Height      :      2-7/16 in
Installation Type      :      Flush
Length      :      3-1/2 in
Material      :      Steel
Width      :      2-7/16 in
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/571/ITEM/DOC/Richelieu_17RFB10R_Instruction_Installation_Manual.pdf
  • videoVideo Link https://static.richelieu.com/documents/docsPr/17/RF/B1/0R/17RFB10R/1691991.mp4
