Simpson Strong-Tie® PDPAWL-250MG Powder-Driven Pin With Washer, 0.157 in Dia Shank, 0.3 in Dia Head, Steel Pin
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: 7497605
  • Part Number: 1243903
  • MPN: PDPAWL-250MG
  • UPC: 707392688709
  • Min. Order Qty: 1
  • Qty. Interval: 1

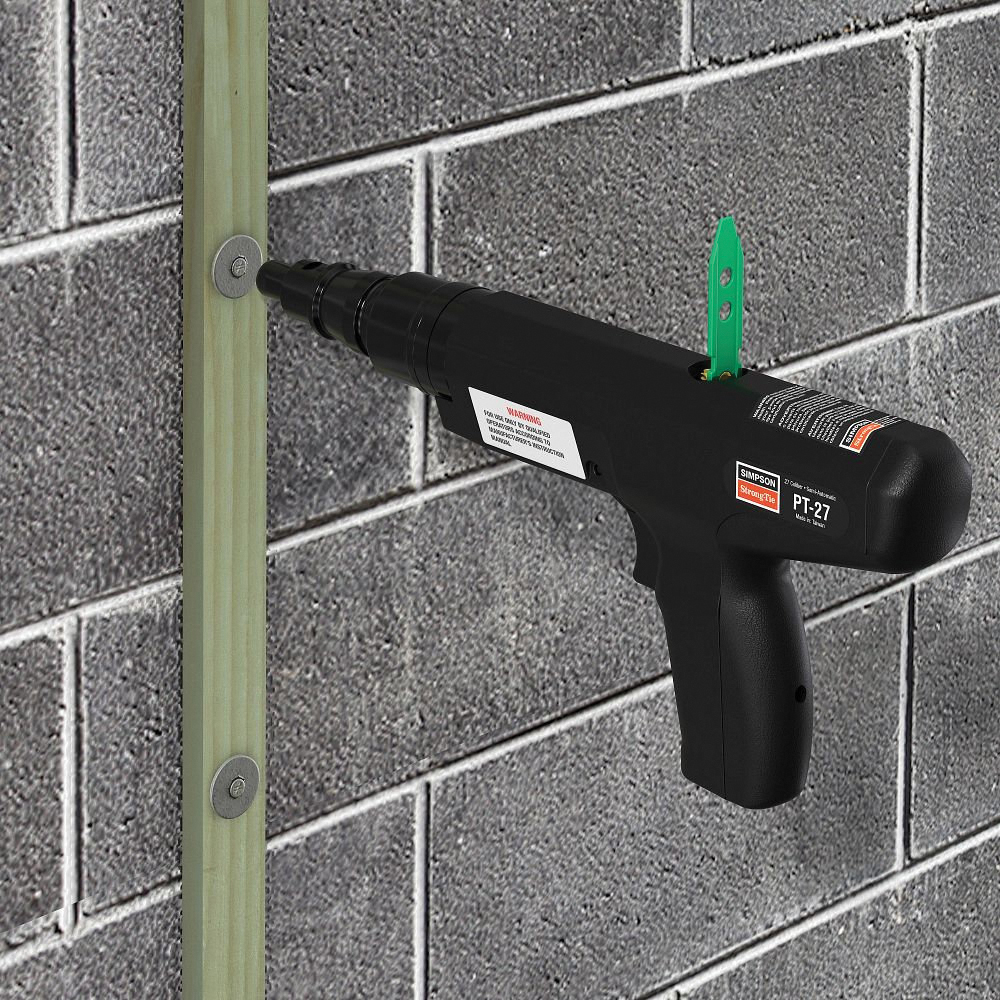

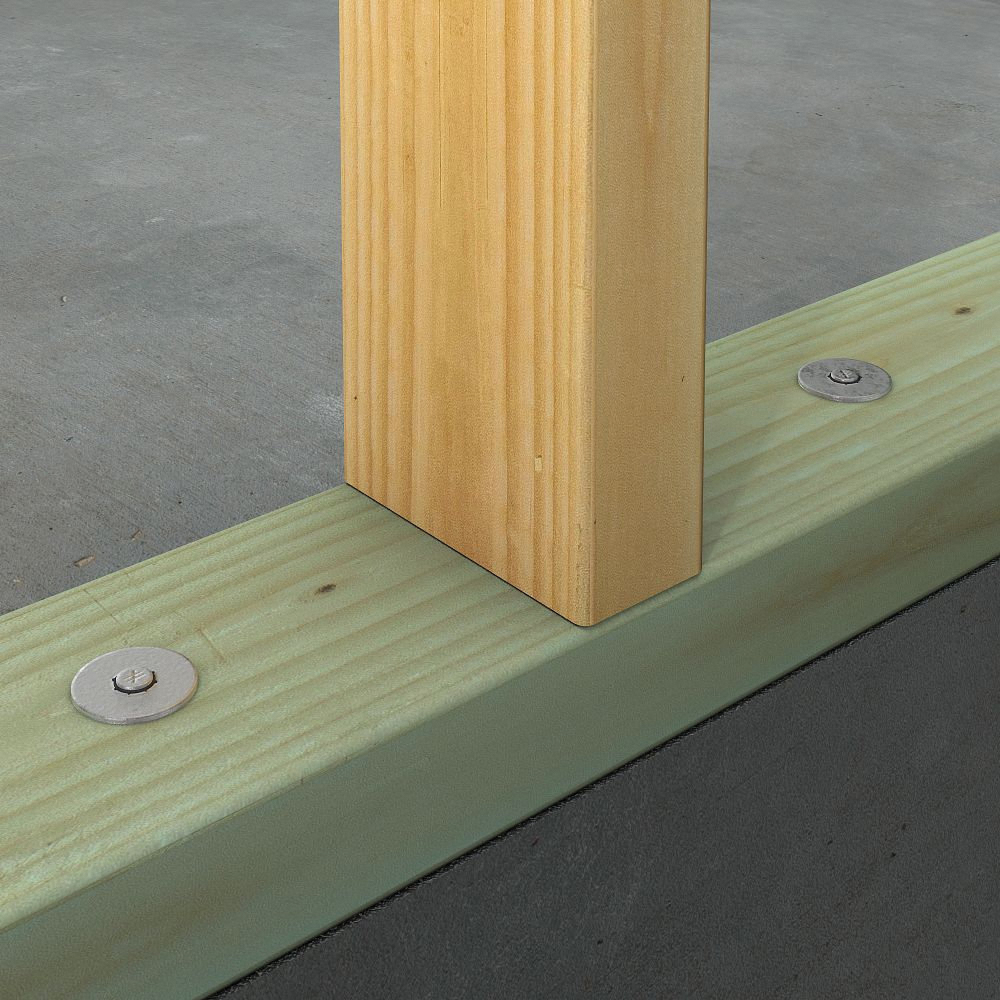

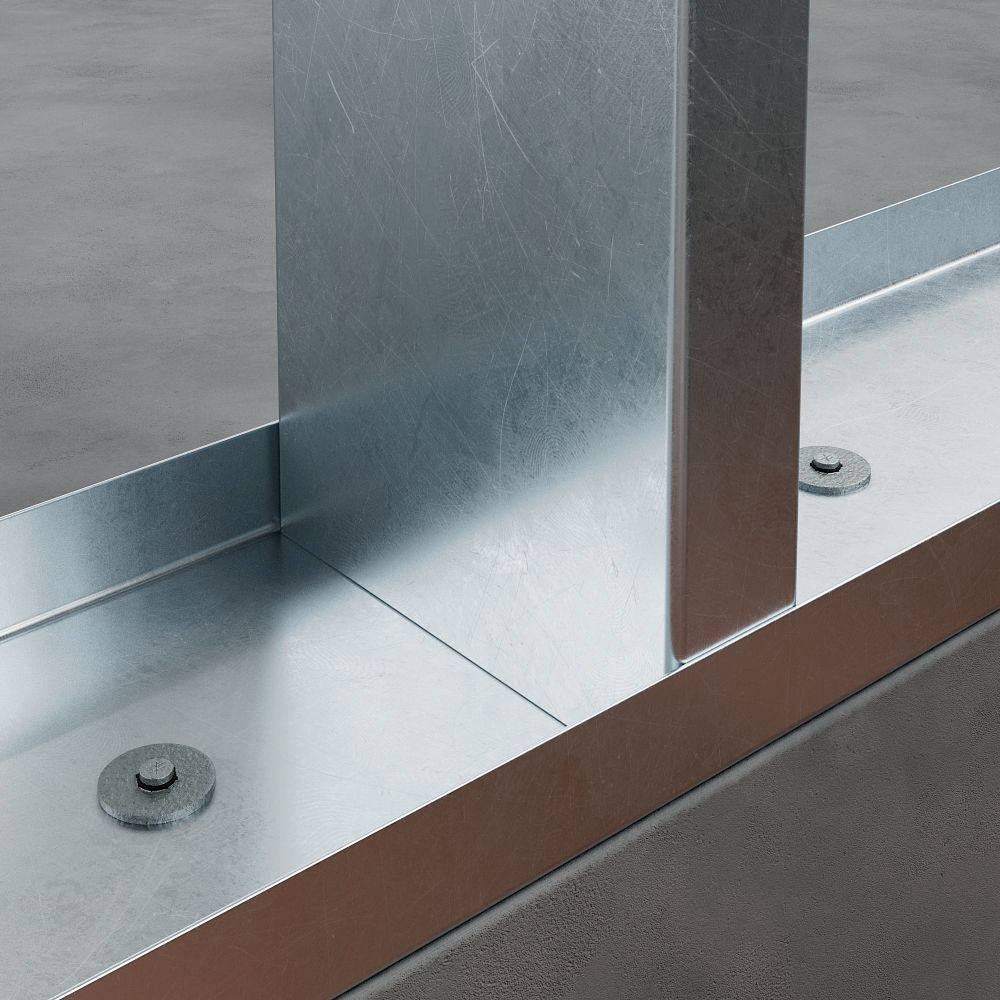

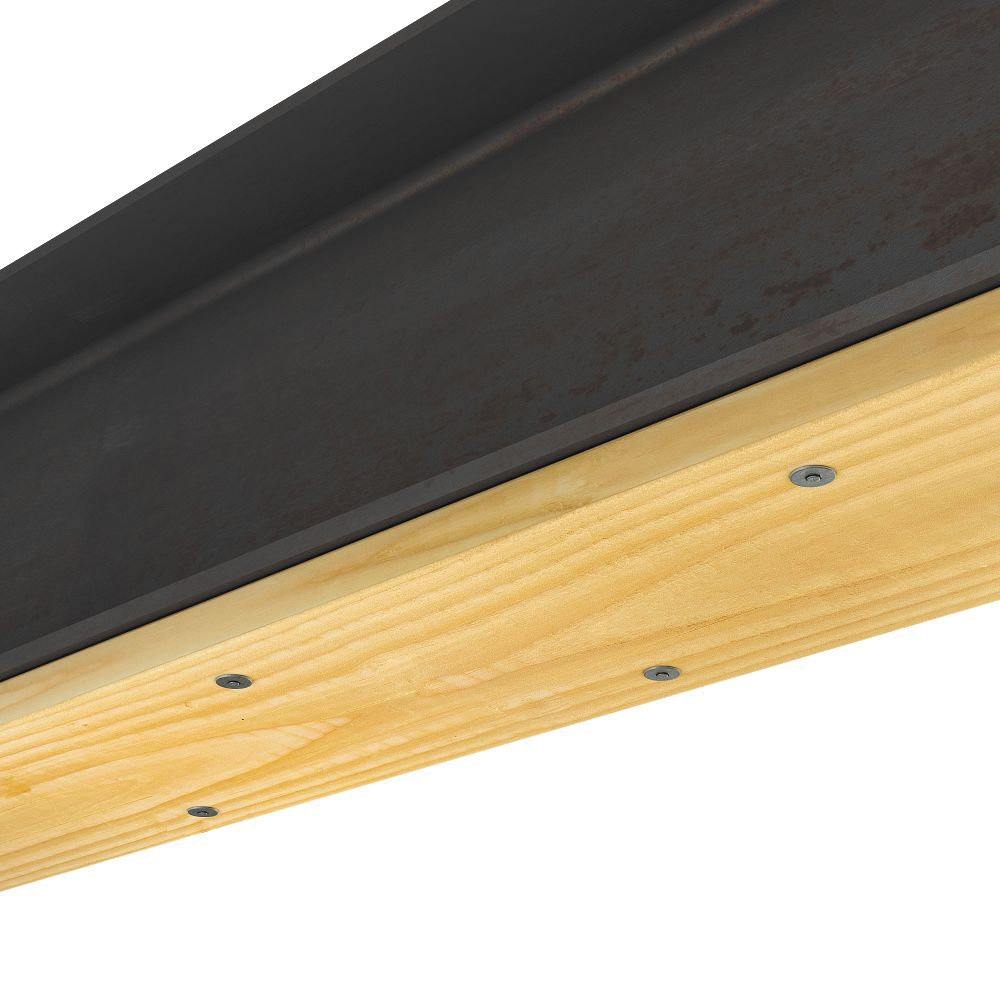

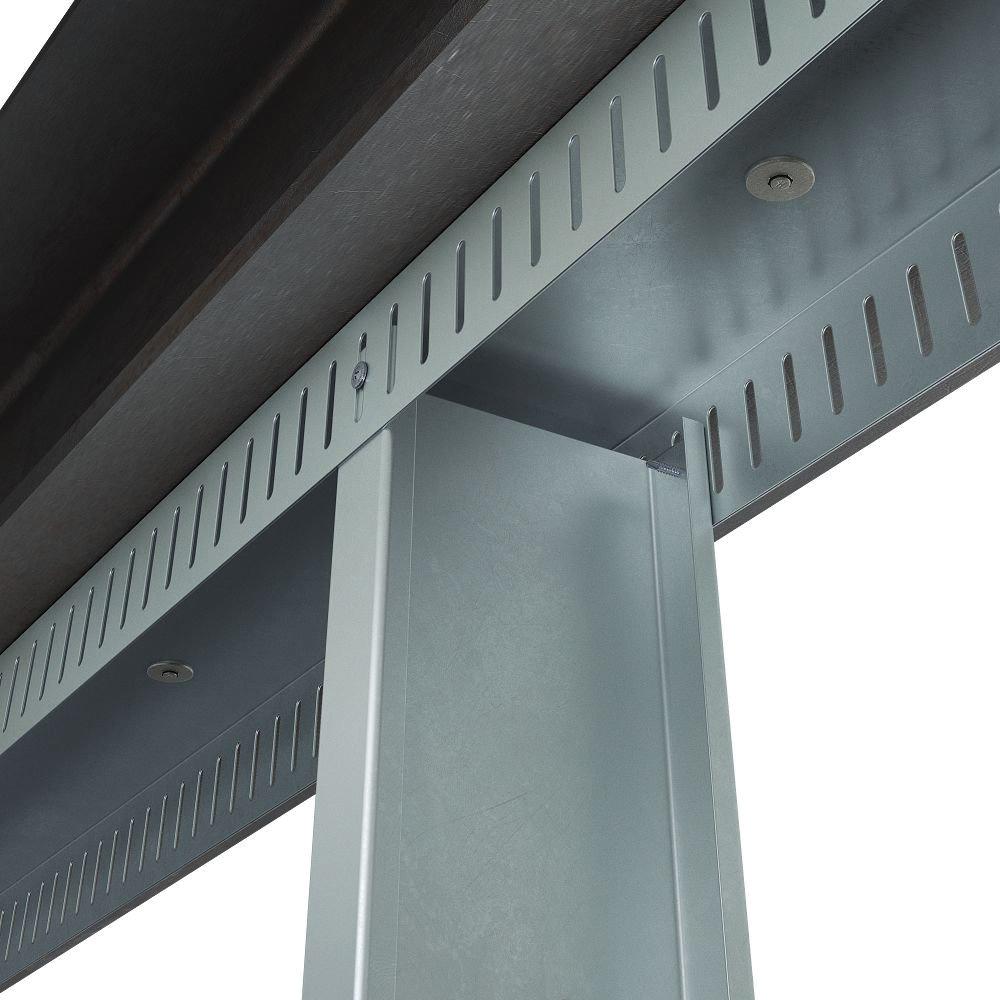

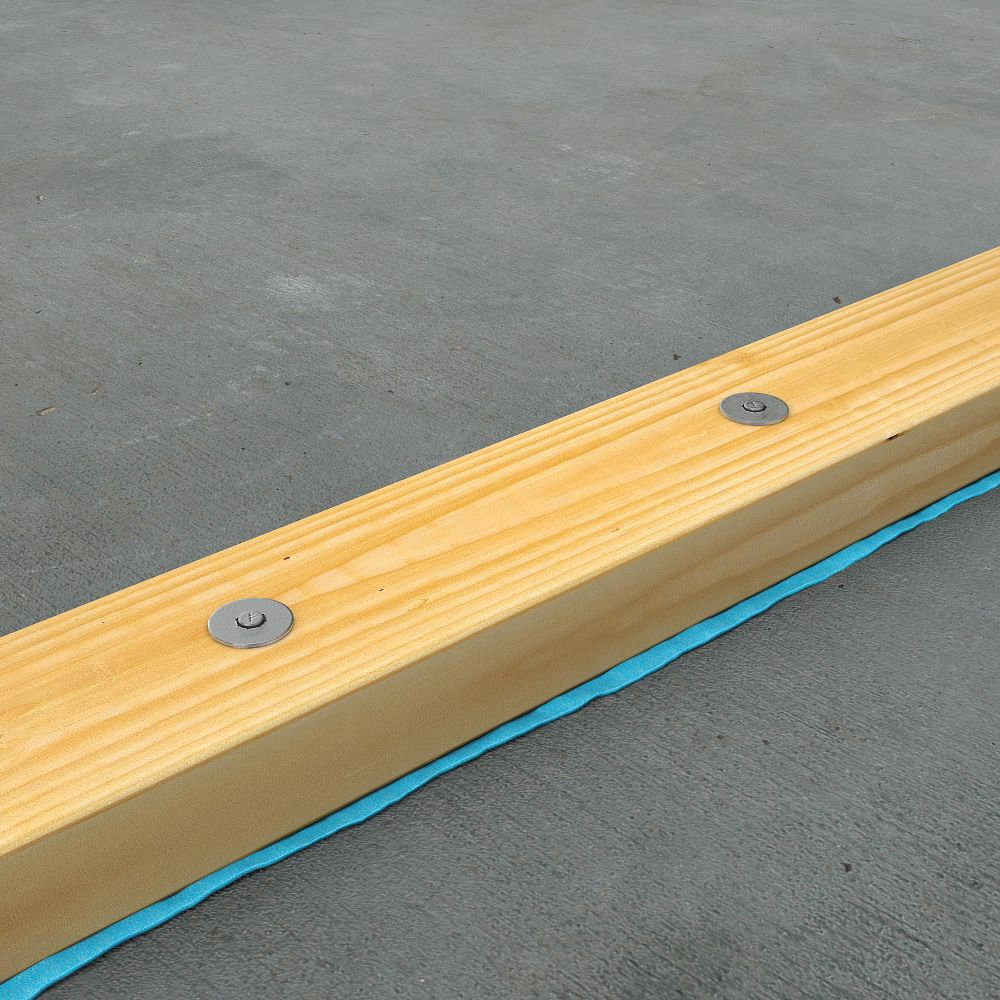

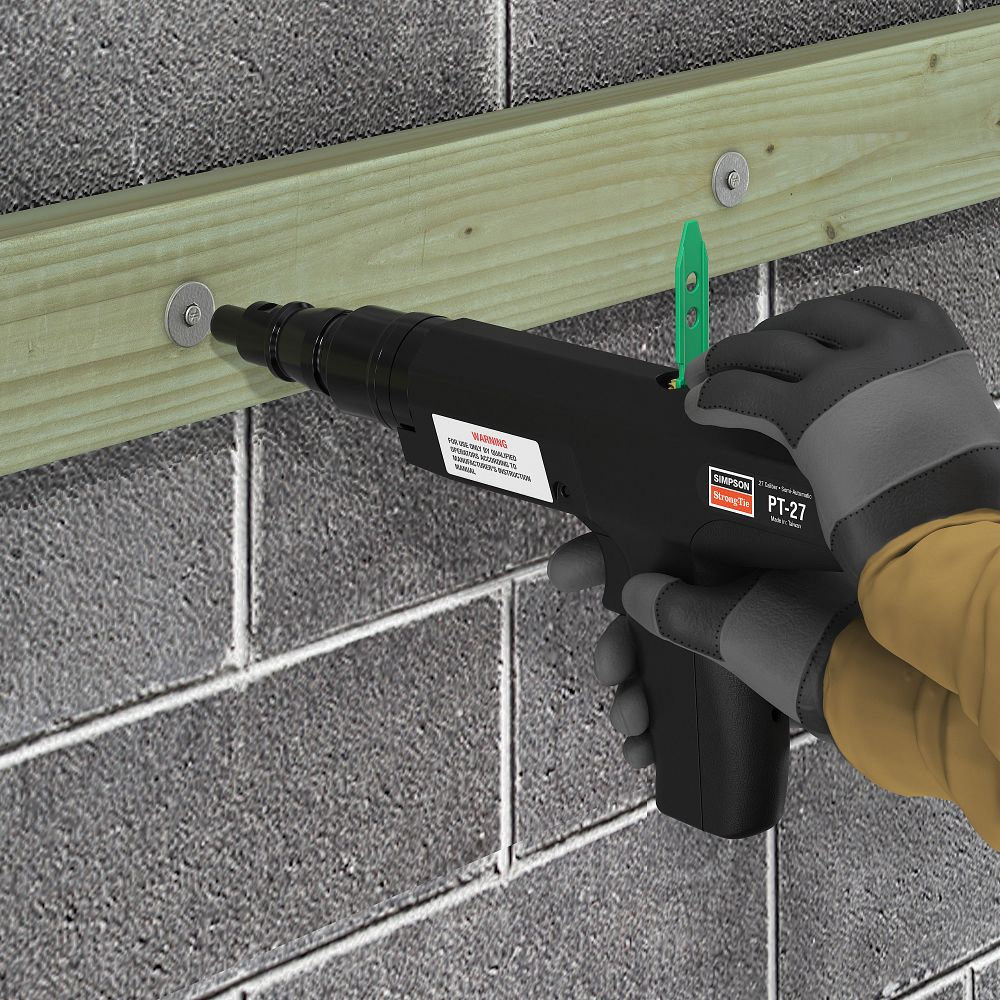

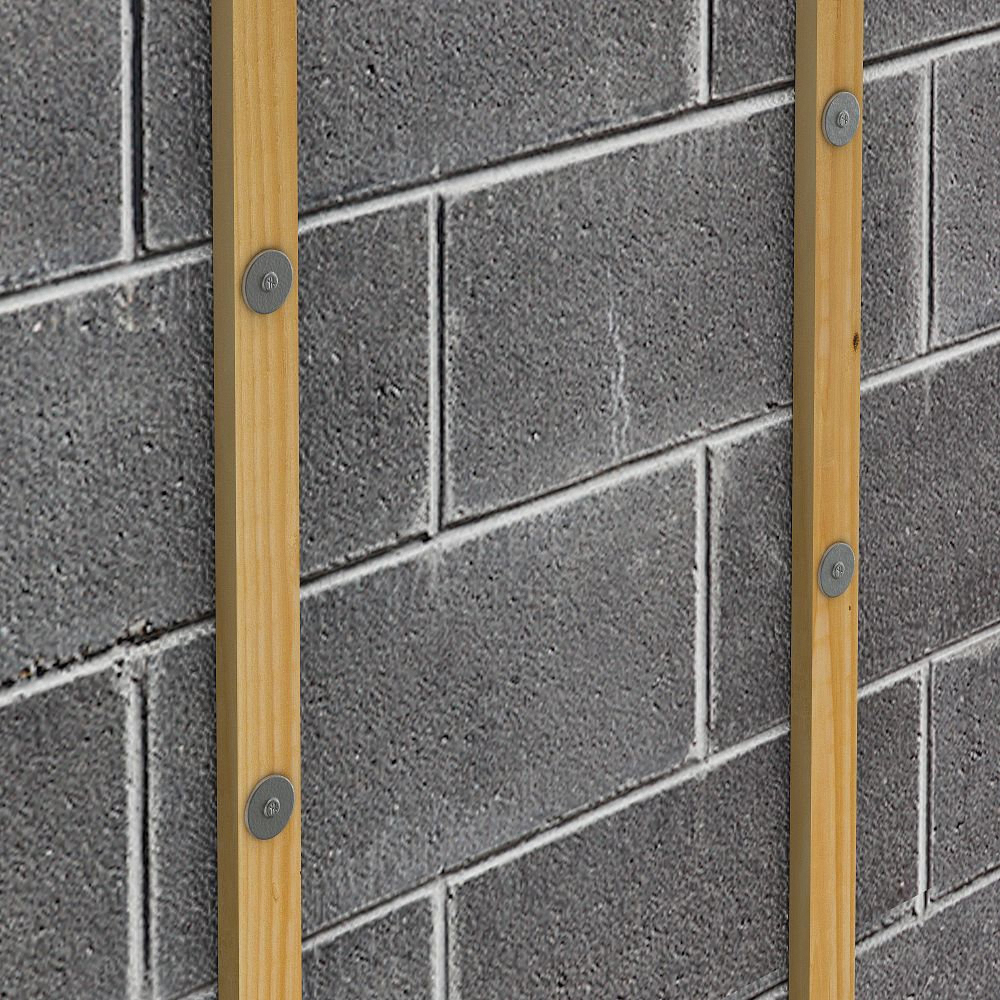

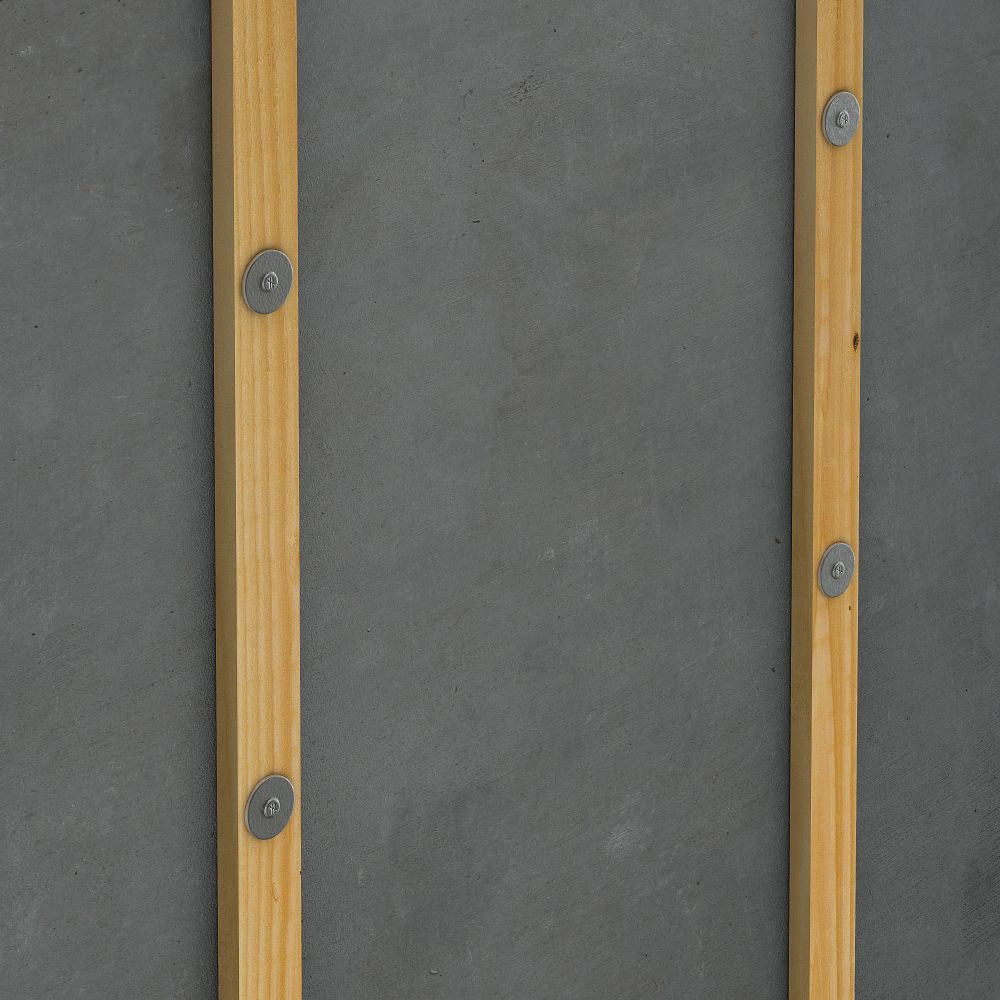

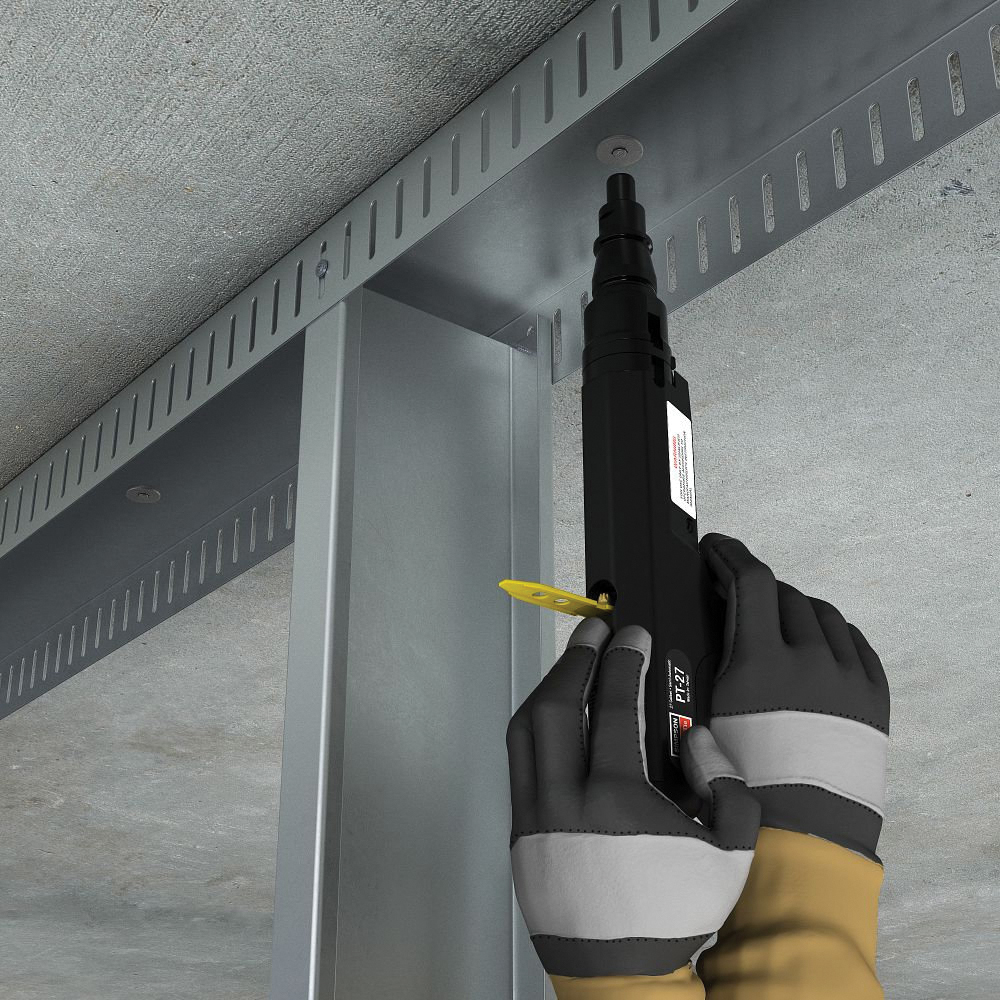

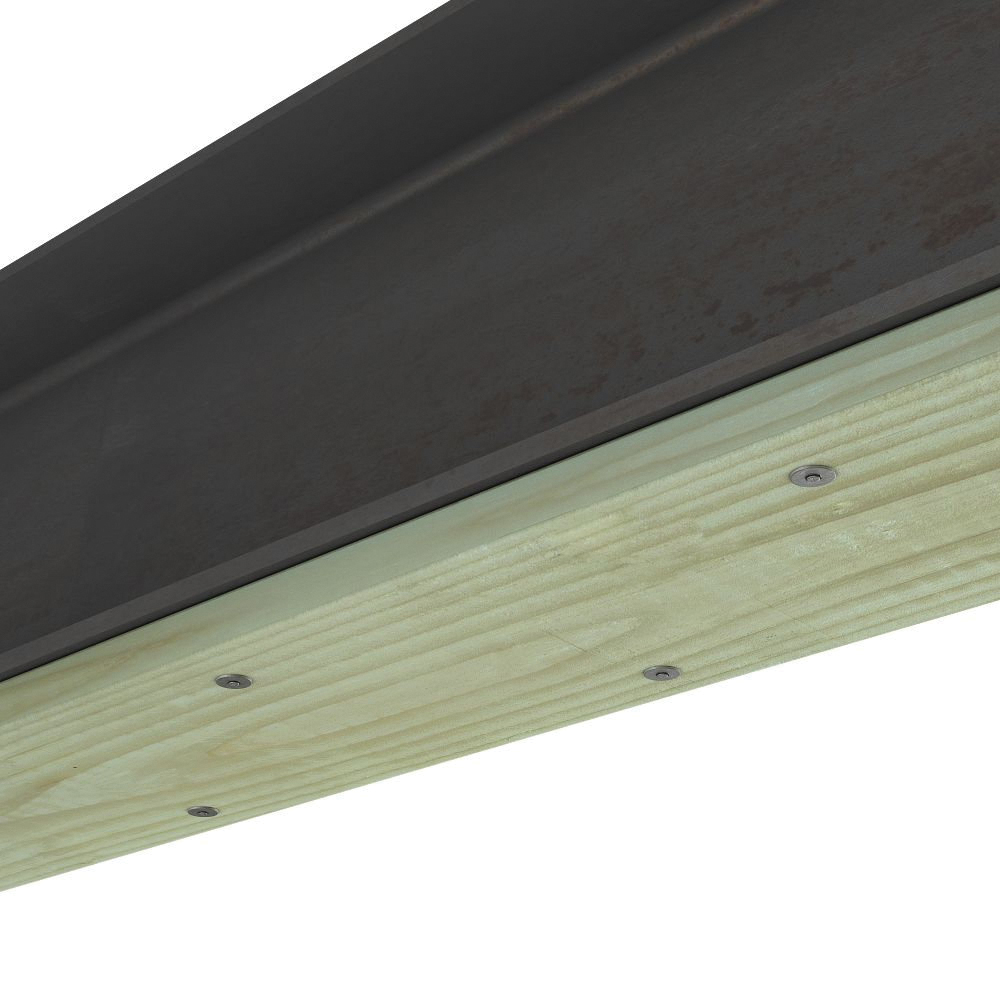

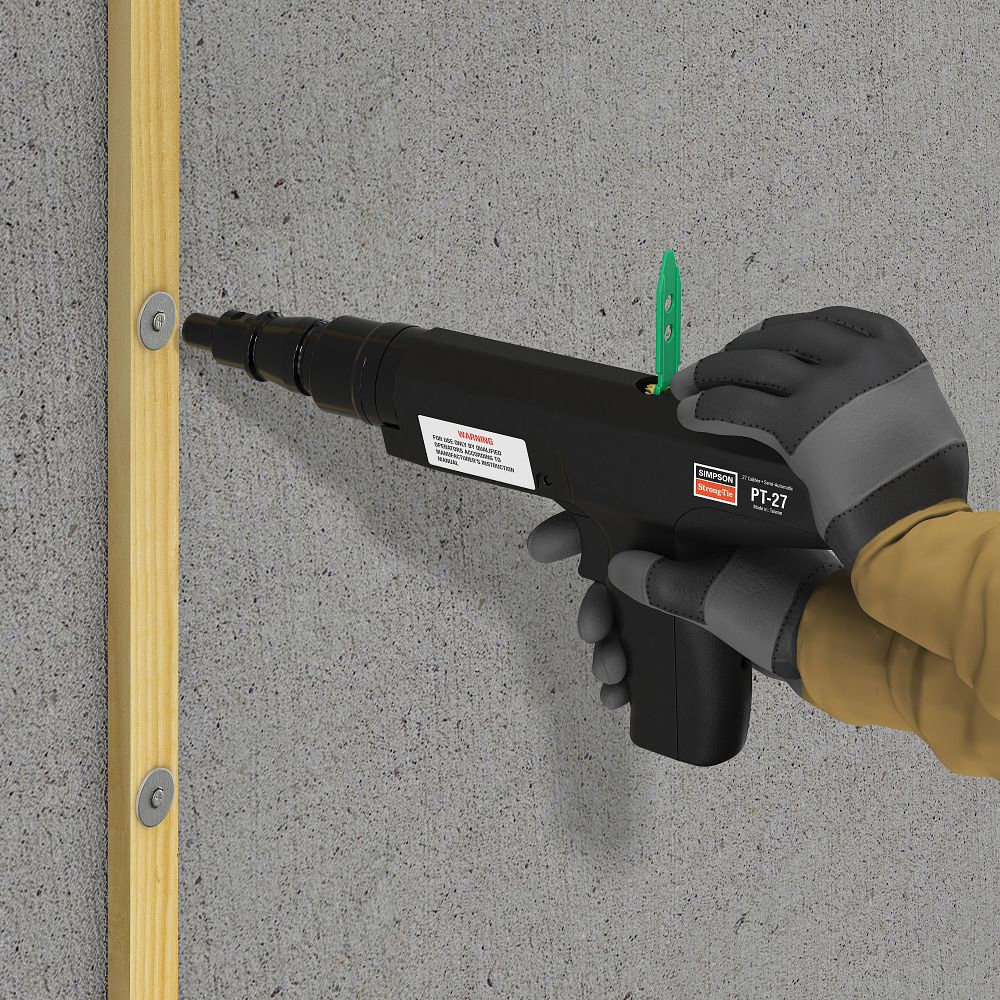

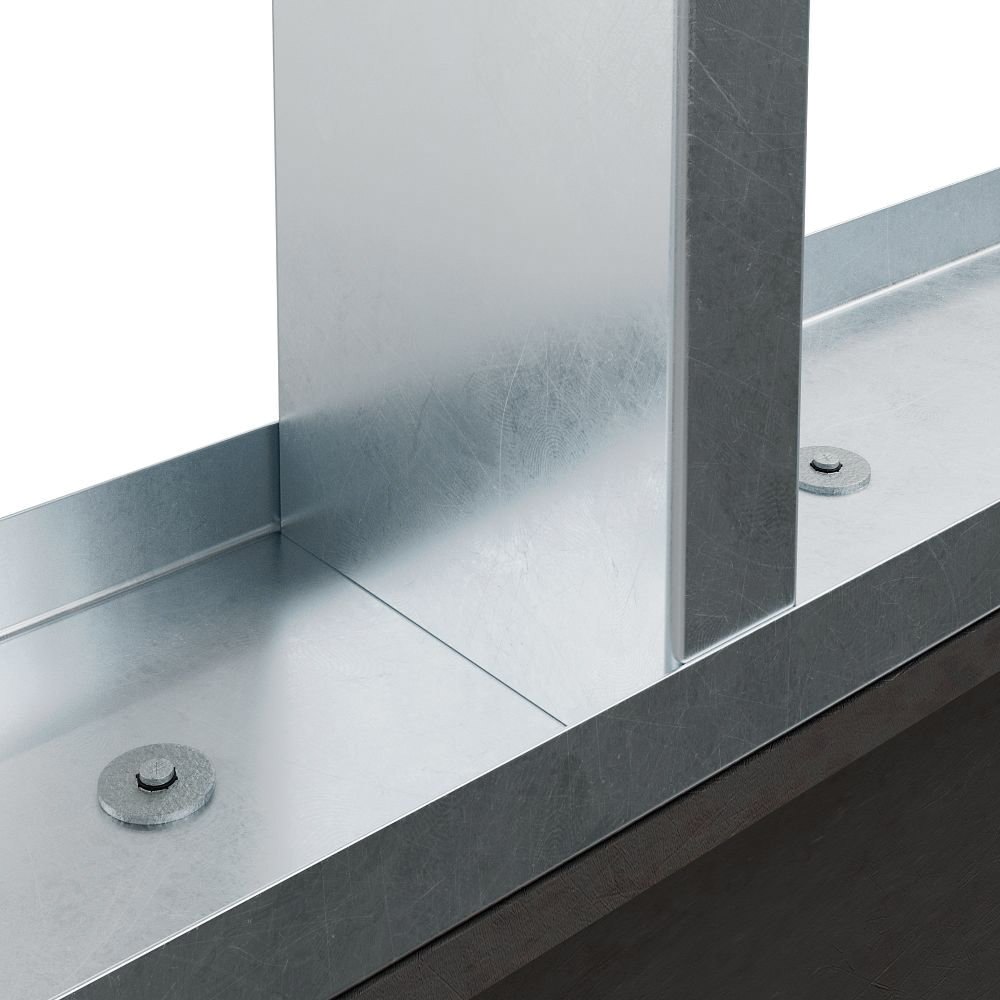

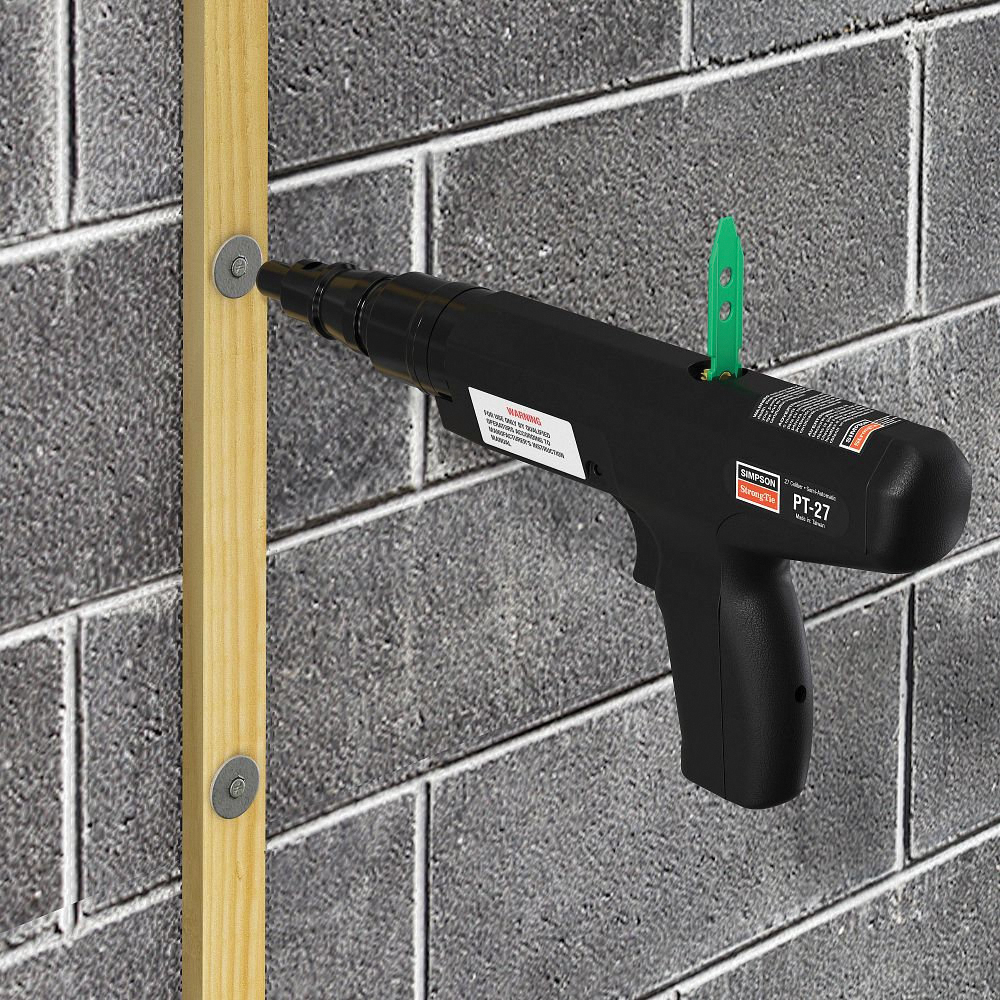

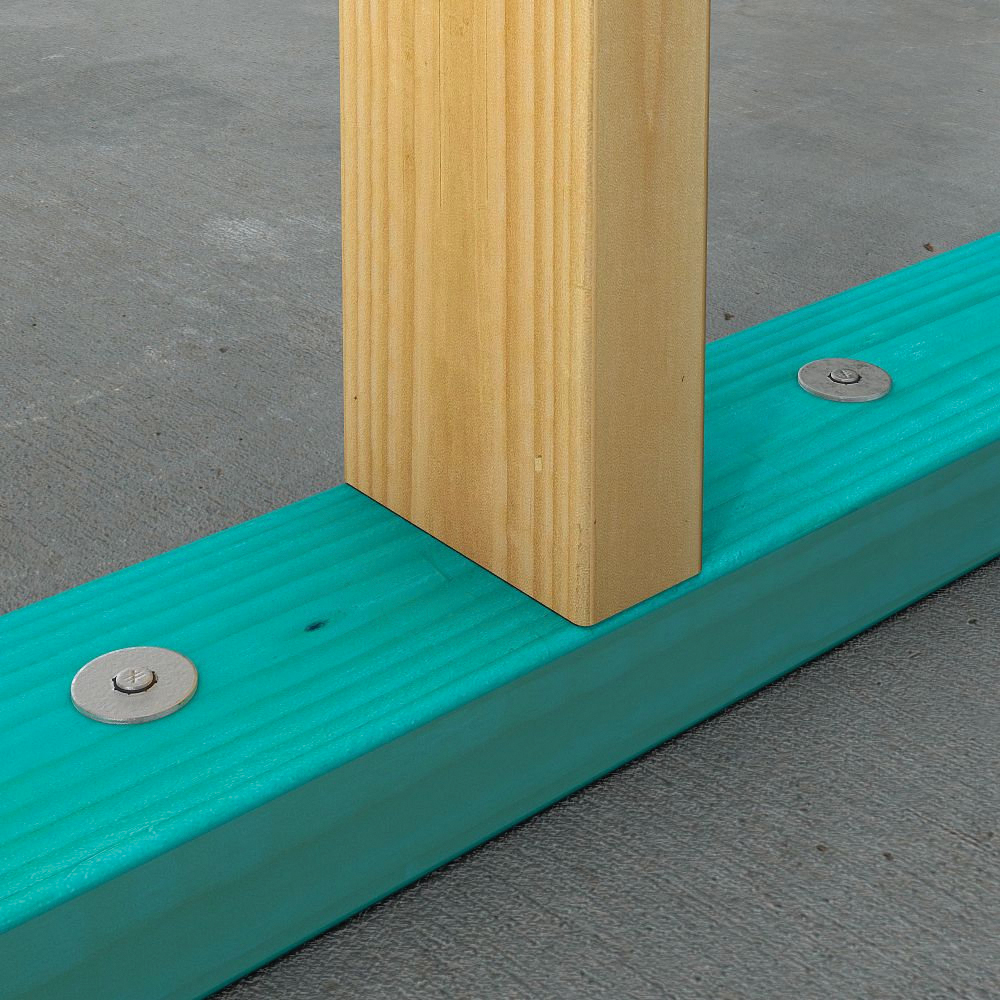

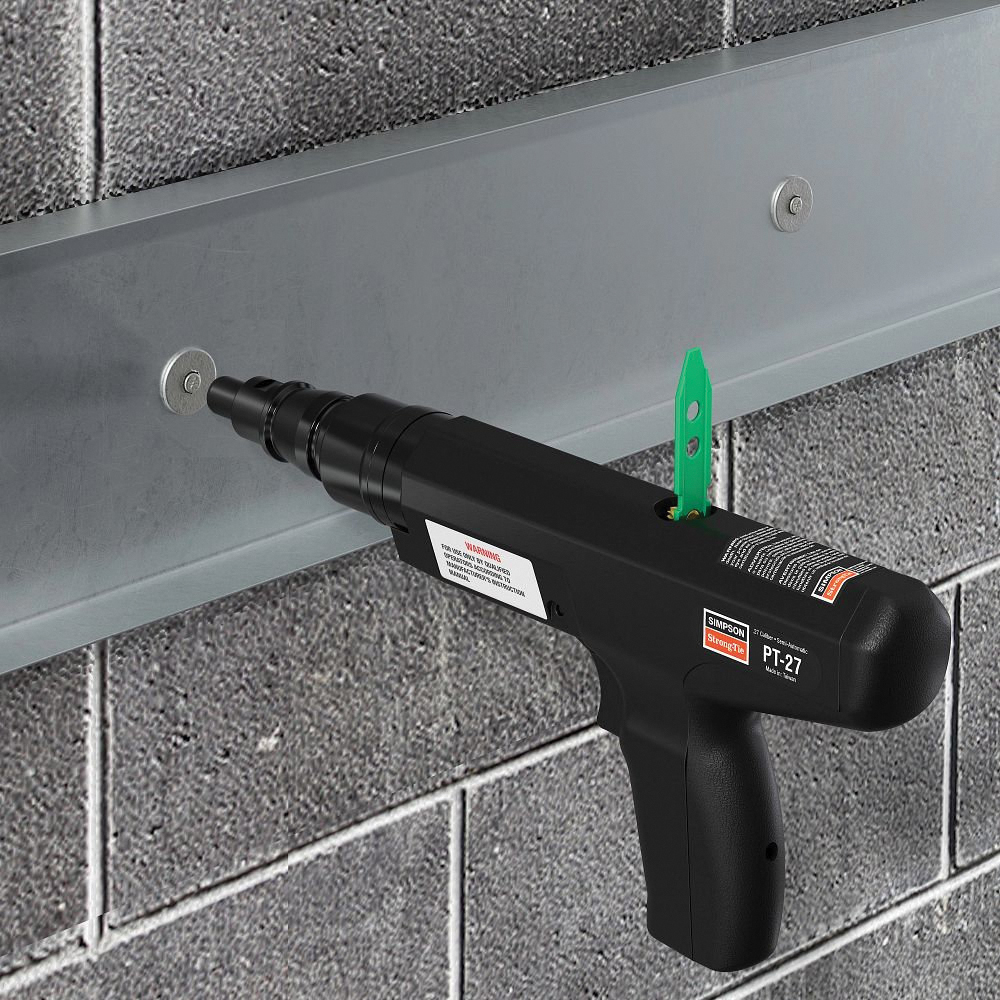

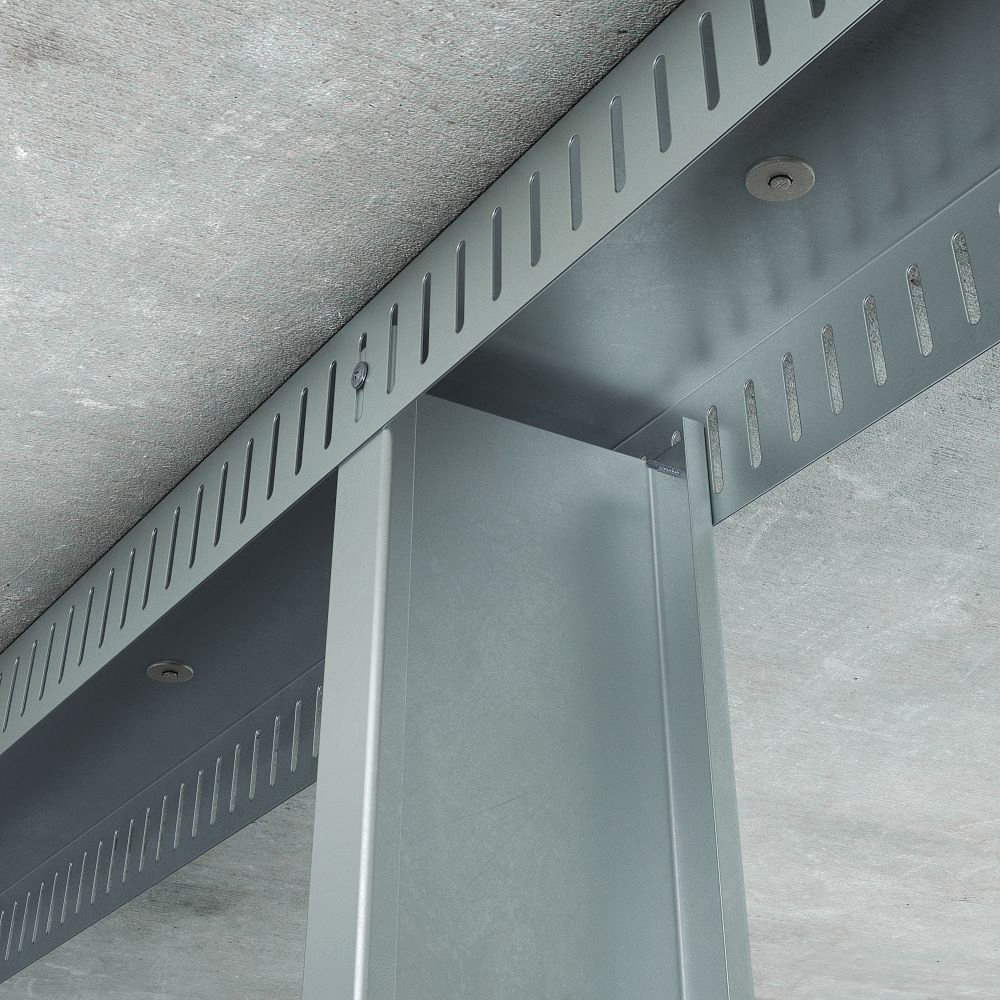

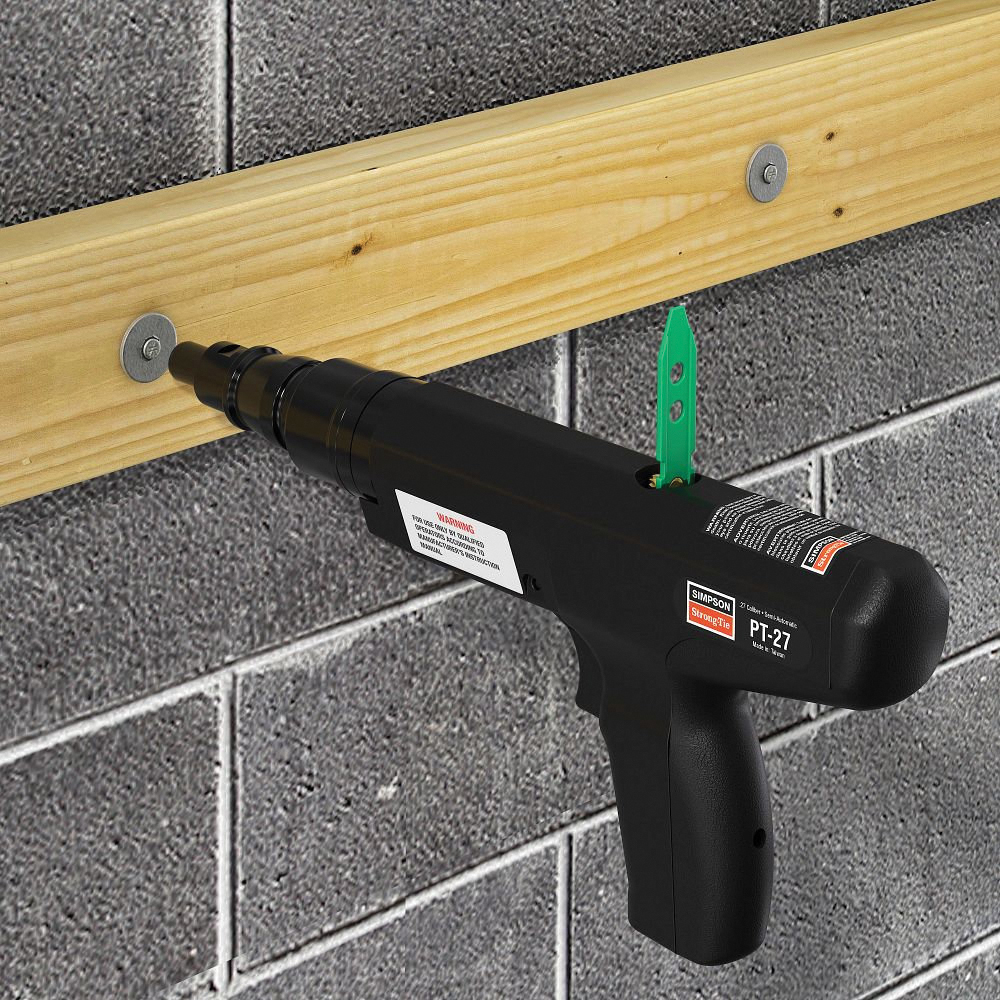

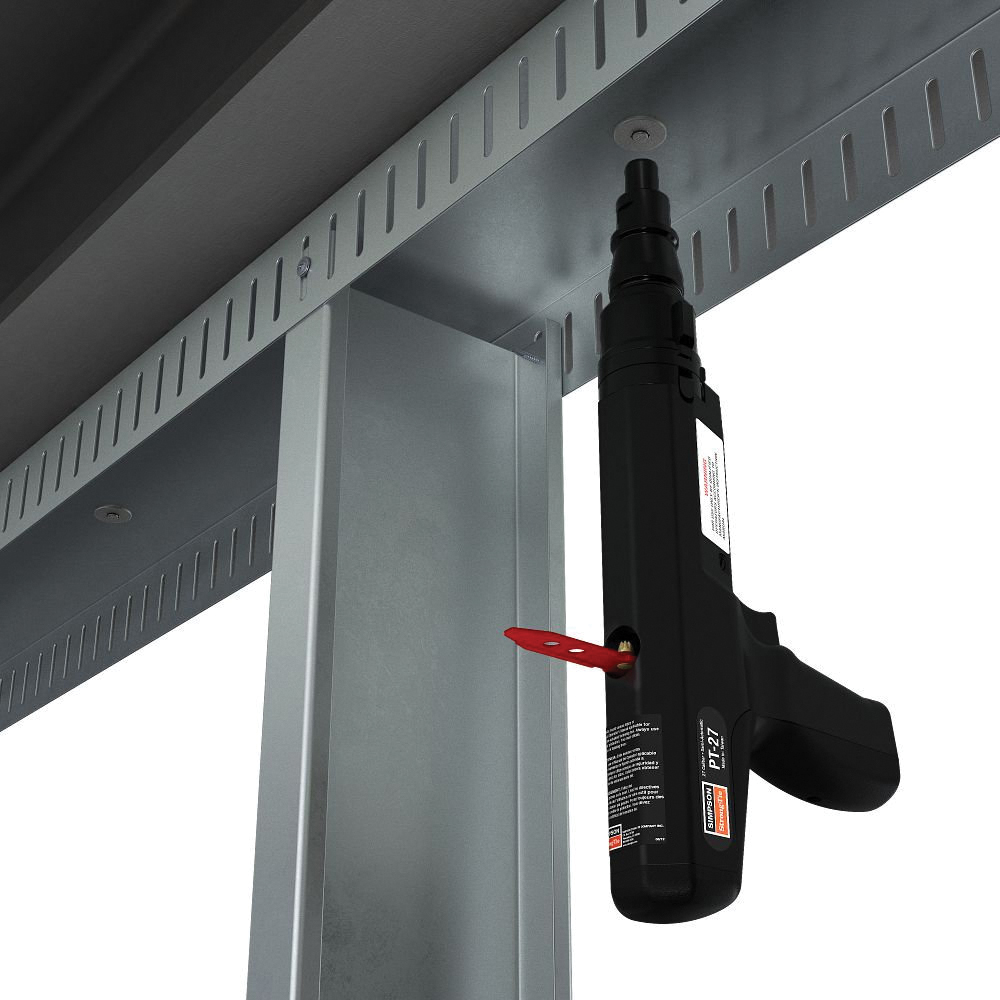

The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1″ washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

Simpson Strong-Tie® Powder-Driven Pin, PDPAWL Series, 0.157 in Shank Diameter, Smooth Shank, Flat Head, 0.3 in Head Diameter, 1 in Washer Diameter, Steel Pin, Galvanized Pin, Applicable Materials: CMU, Concrete, Steel, For Use With: PTP-27L, PT-27, PT-22A, PT-22HA Powder-Actuated Tools, Additional Information: 2-1/2 in L Pin

Additional Information      :      2-1/2 in L Pin
Applicable Materials      :      CMU, Concrete, Steel
Head Diameter      :      0.3 in
Head Type      :      Flat
Pin Finish      :      Galvanized
Pin Material      :      Steel
Series      :      PDPAWL Series
Shank Diameter      :      0.157 in
Shank Type      :      Smooth
Suitable For Use With      :      PTP-27L, PT-27, PT-22A, PT-22HA Powder-Actuated Tools
Washer Diameter      :      1 in
