Simpson Strong-Tie® QDWSV2S

The Strong-Drive WSVF Subfloor screw is an available variant with a gray Quik Guard® coating that is recognized for corrosion resistance in IAPMO UES ER-192 for Exposures 1 and 3 as described in ICC-ES AC257. Like the WSV Subfloor screw, the WSVF Subfloor screws are designed for dry service applications. The coating system on the WSVF screws will provide corrosion resistance for use with wood and wood-based materials in dry service where the wood and wood-based materials have treatment retentions typical of AWPA Use Categories 1 to 4A and fire-retardant-treated wood and wood-based materials that are recognized in an evaluation report where corrosion effects of the fire-retardant chemical are referenced to code prescribed protection systems for carbon steel fasteners.

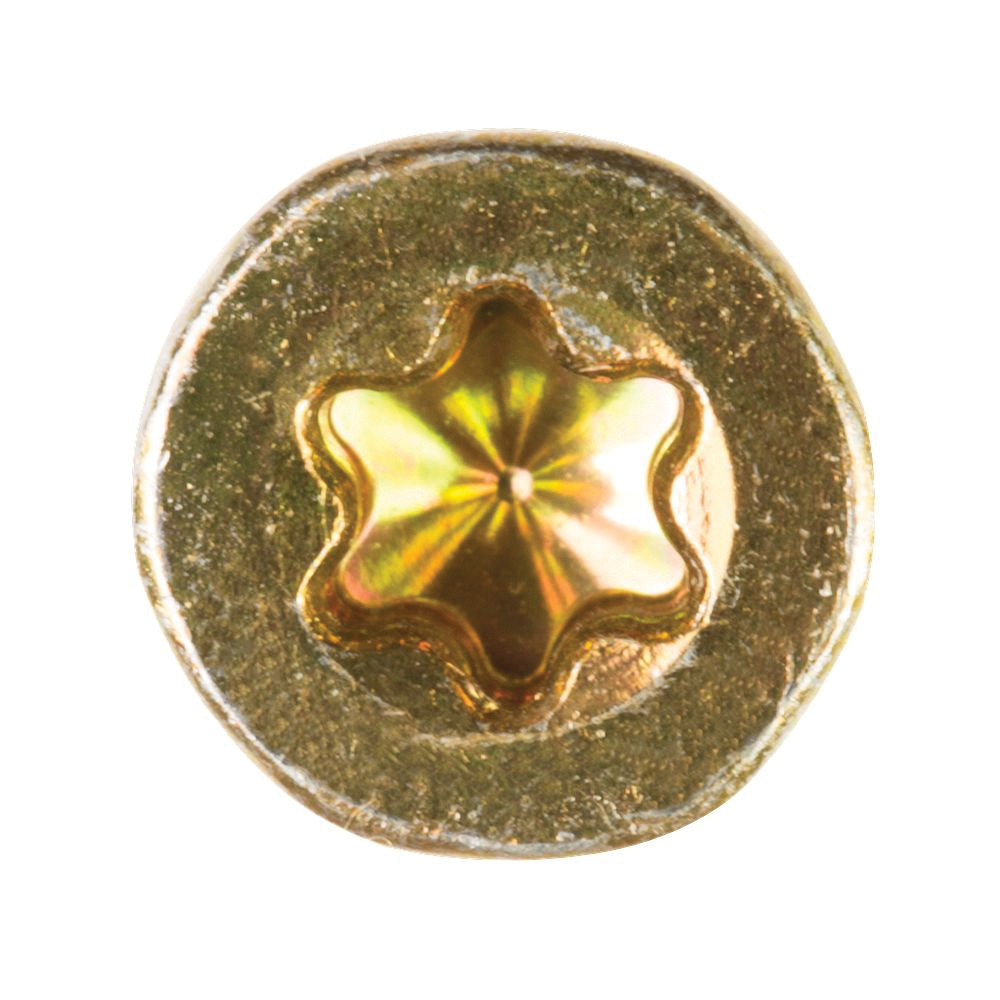

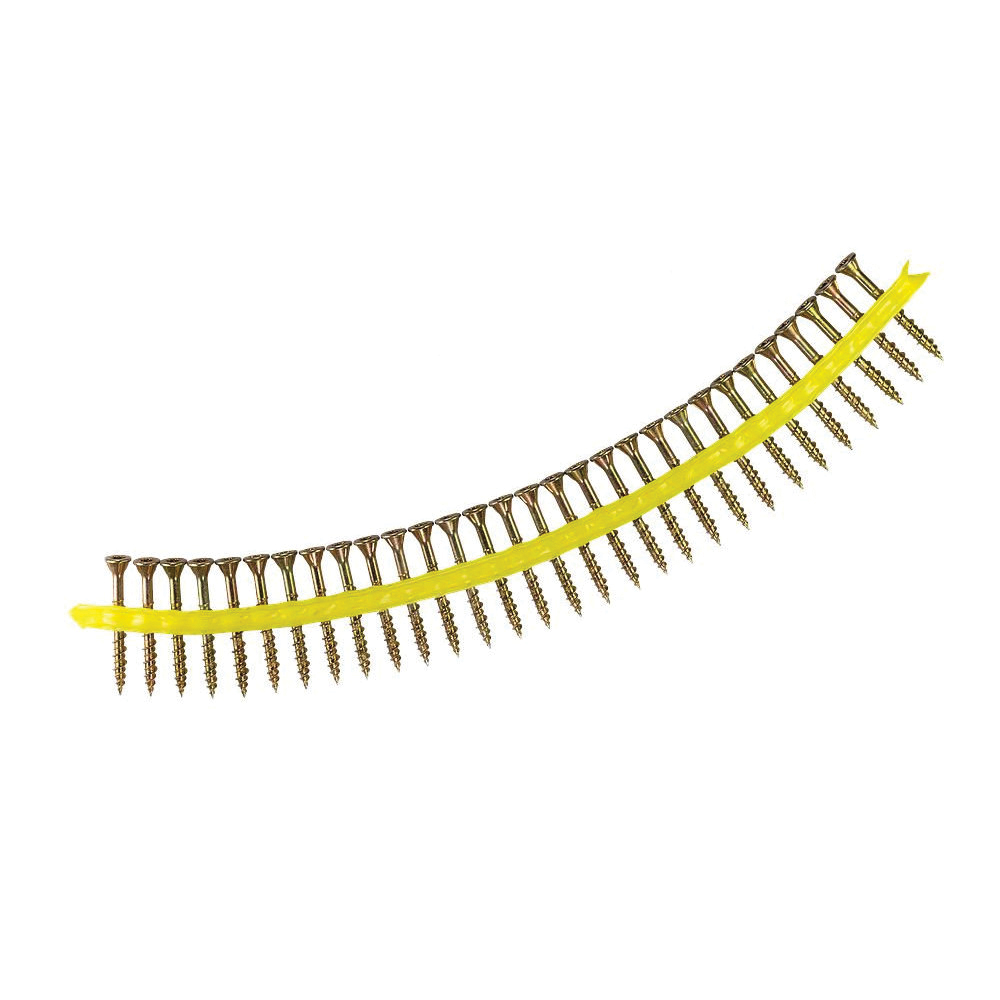

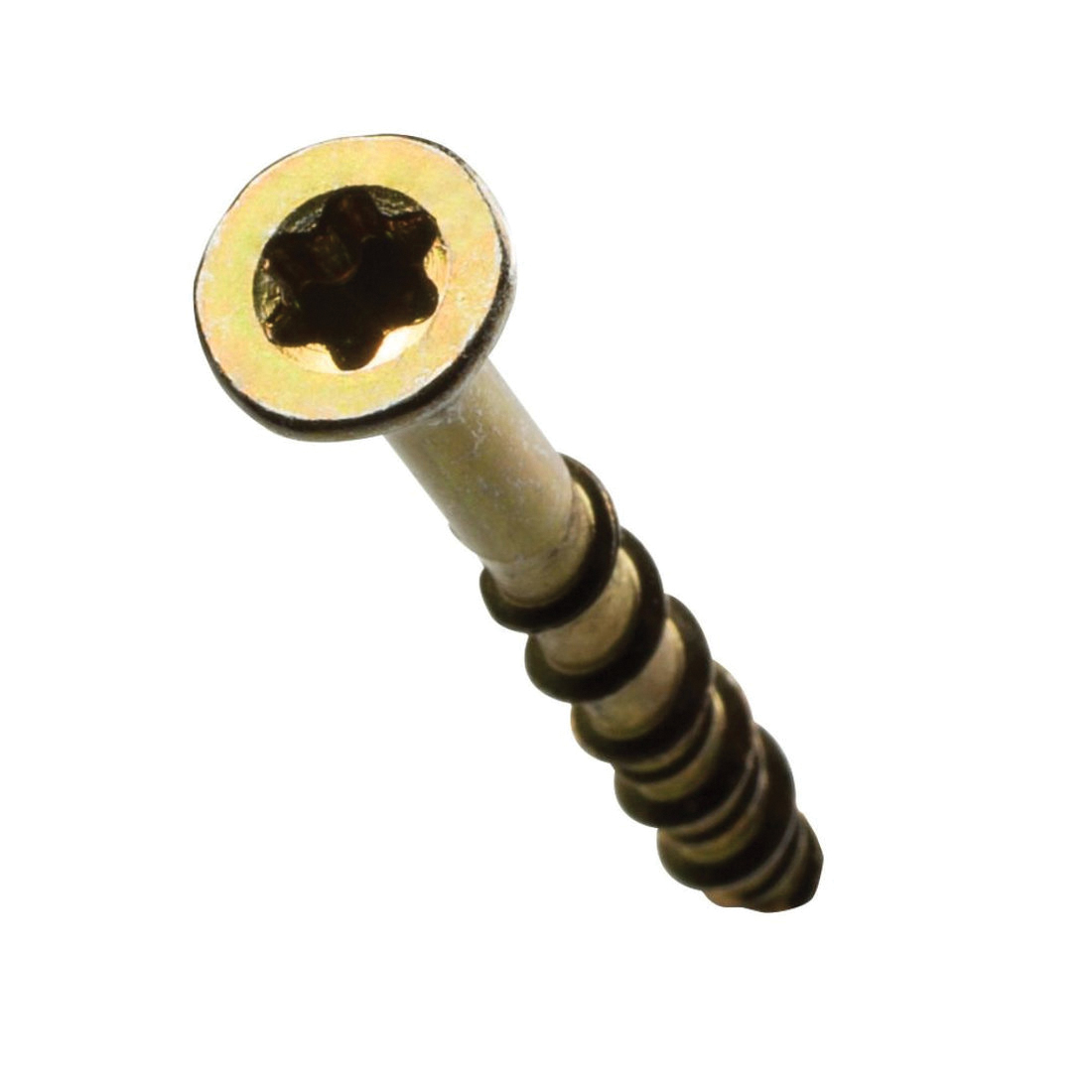

Simpson Strong-Tie® Collated Screw, WSV Series, #9 x 2 in Screw, 2 in Screw Length, Rimmed Flat Head, 0.333 in Head Diameter, 6-Lobe Drive, T25 Drive, Variable Thread, High-Low Threaded Point, Zinc-Coated Screw, Yellow Screw
