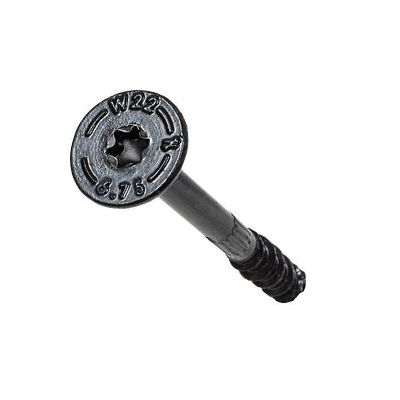

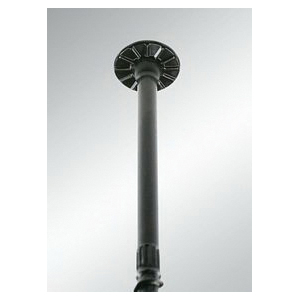

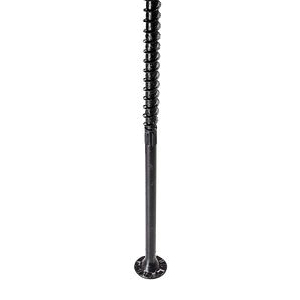

Simpson Strong-Tie® Strong-Drive® SDW22634-R50 Structural Screw, 0.22 in Thread, Bold Thread, 6-Lobe Drive, T40 Drive
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: 22530
  • Part Number: 1023467
  • MPN: SDW22634-R50
  • UPC: 707392225300
  • Min. Order Qty: 1
  • Qty. Interval: 1

The Strong-Drive® SDW EWP-Ply screw is a high strength structural screw specifically designed for fastening multi-ply wood members, such as engineered wood products and solid sawn lumber. The SDW EWP-Ply installs easily with no predrilling and is available in optimized lengths for fastening 1-3/4 in engineered lumber, such as structural composite lumber (SCL). The large, flush head eases the handling of assembled girders and simplifies the installation of finishes or structural connectors. It is code listed under IAPMO UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing and engineered wood applications.

Simpson Strong-Tie® Structural Screw, 0.22 in Thread, Bold Thread, 6-Lobe Drive, T40 Drive, Low Profile Head, 1-9/16 in Thread Length, 6-3/4 in Overall Length, Finish: E-Coated Electrocoating

Drive Size      :      T40
Drive Type      :      6-Lobe
Finish      :      E-Coated Electrocoating
Head Type      :      Low Profile
Overall Length      :      6-3/4 in
Thread Length      :      1-9/16 in
Thread Size      :      0.22 in
Thread Type      :      Bold
