Simpson Strong-Tie® CPS5 Stand-Off Post Base, 5 x 5 in Post/Column, 5/8 in, 0.148 x 3 in Gauge, Composite Polymer
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: MICPB5
  • Part Number: 1219617
  • MPN: CPS5
  • Min. Order Qty: 1
  • Qty. Interval: 1

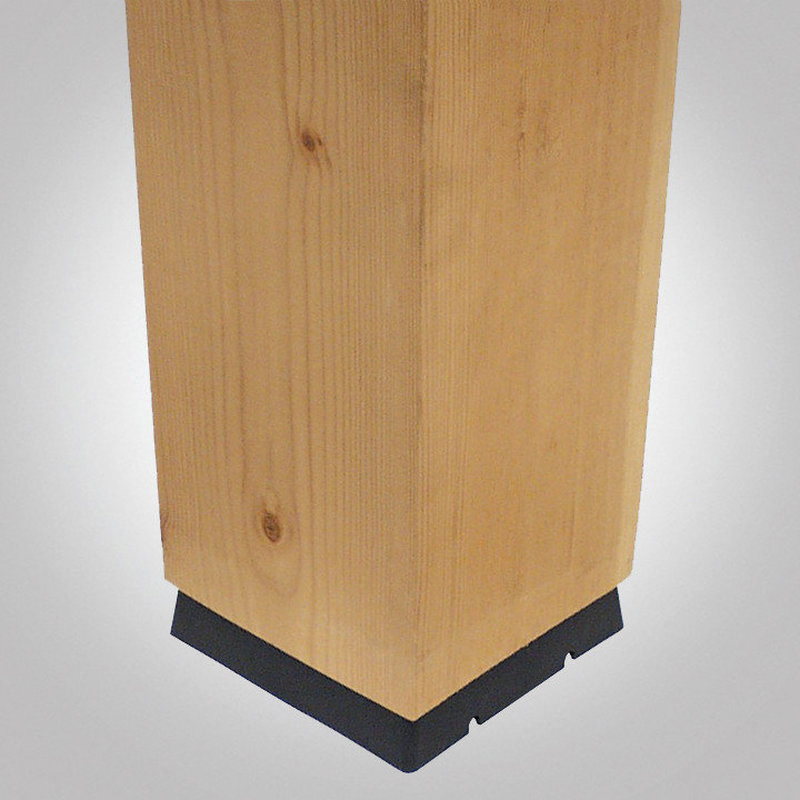

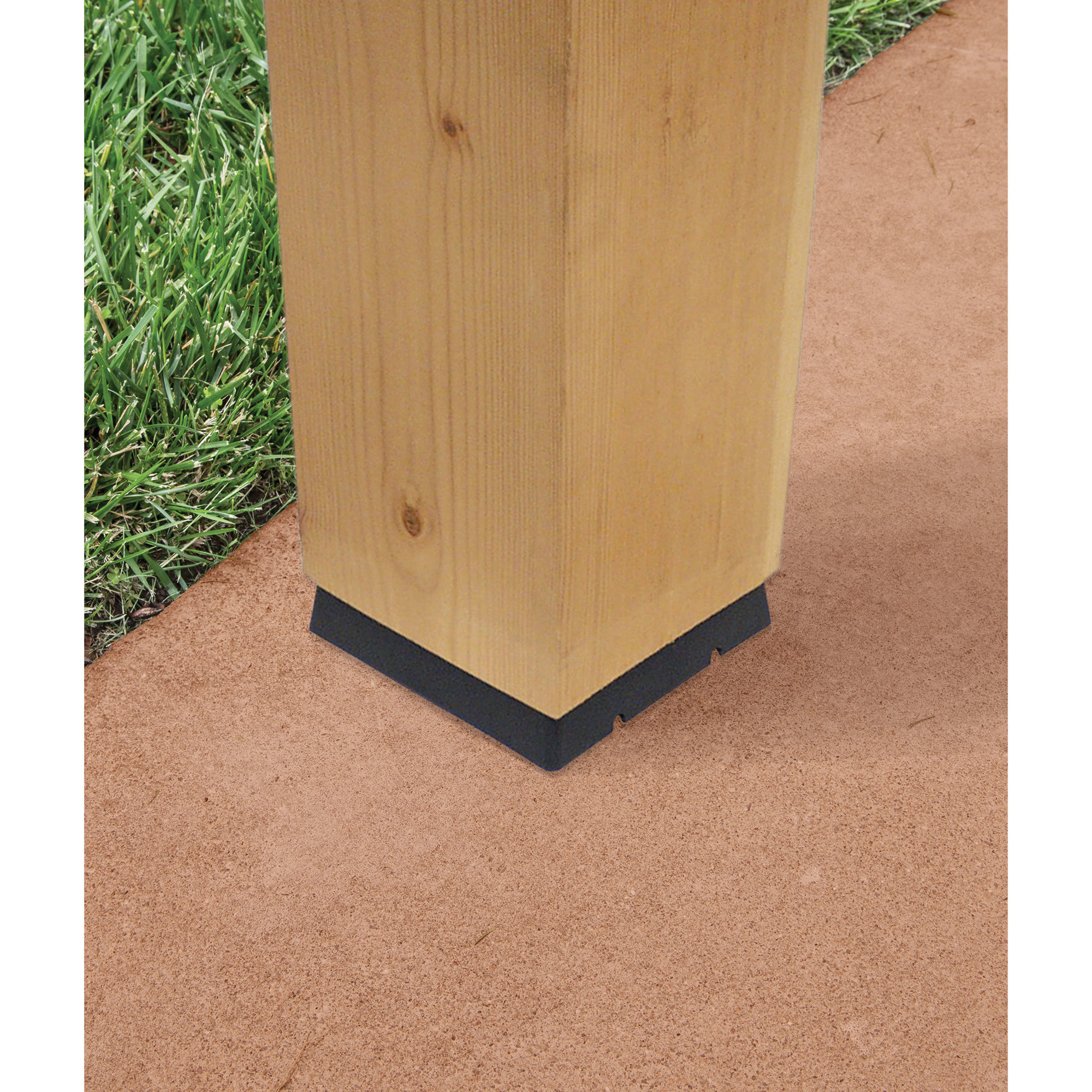

The CPS is a composite-plastic standoff base designed for use both indoors and outdoors. The CPS attaches to the bottom of the solid wood column and to concrete with threaded rod and epoxy. The CPS is load rated and features either a square or a rectangle shape depending upon post dimensions.

Simpson Strong-Tie® Stand-Off Post Base, CPS Series, Post/Column Size: 5 x 5 in, 4-1/8 in Overall Width, 4-1/8 in Overall Depth, 1 in Overall Height, Material Gauge: 5/8 in, 0.148 x 3 in, Bolt, Nail Fastener, Bolt, Nail Fastener, 4490 lb, 5925 lb Load, Composite Polymer, Black

Color      :      Black
Fastener Size      :      Bolt, Nail
Fastener Type      :      Bolt, Nail
Load Capacity      :      4490 lb, 5925 lb
Material Gauge      :      5/8 in, 0.148 x 3 in
Material      :      Composite Polymer
Overall Depth      :      4-1/8 in
Overall Height      :      1 in
Overall Width      :      4-1/8 in
Post/Column Size      :      5 x 5 in
Series      :      CPS Series
  • pdfCatalog https://assets.unilogcorp.com/571/ITEM/DOC/SimpsonStrongTie_CPS5_Catalog.pdf
