Simpson Strong-Tie® CPS46 Standoff Post Base, 4 x 6 in Post/Column, Plastic
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: AVANT88590
  • Part Number: 1220674
  • MPN: CPS46
  • Min. Order Qty: 1
  • Qty. Interval: 1

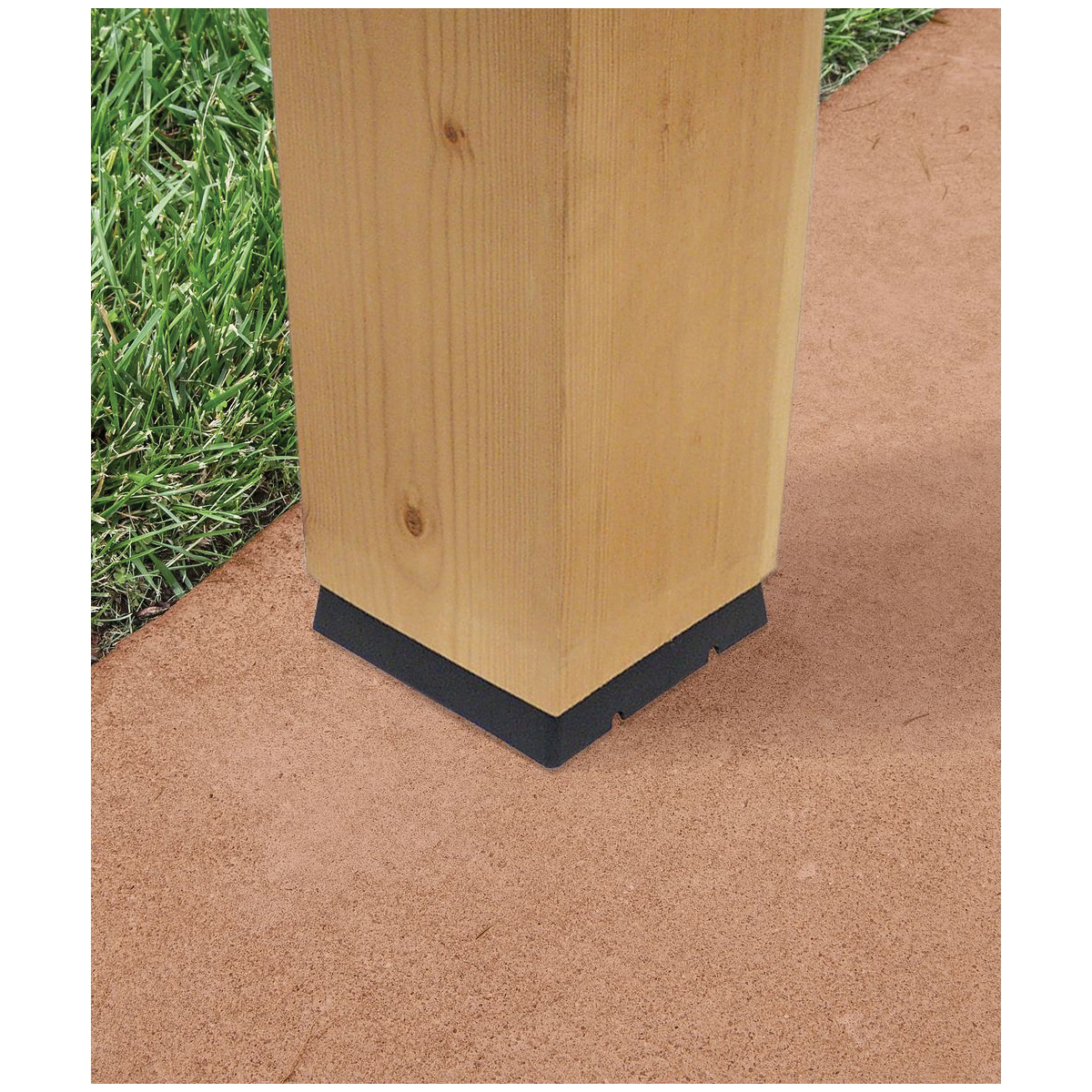

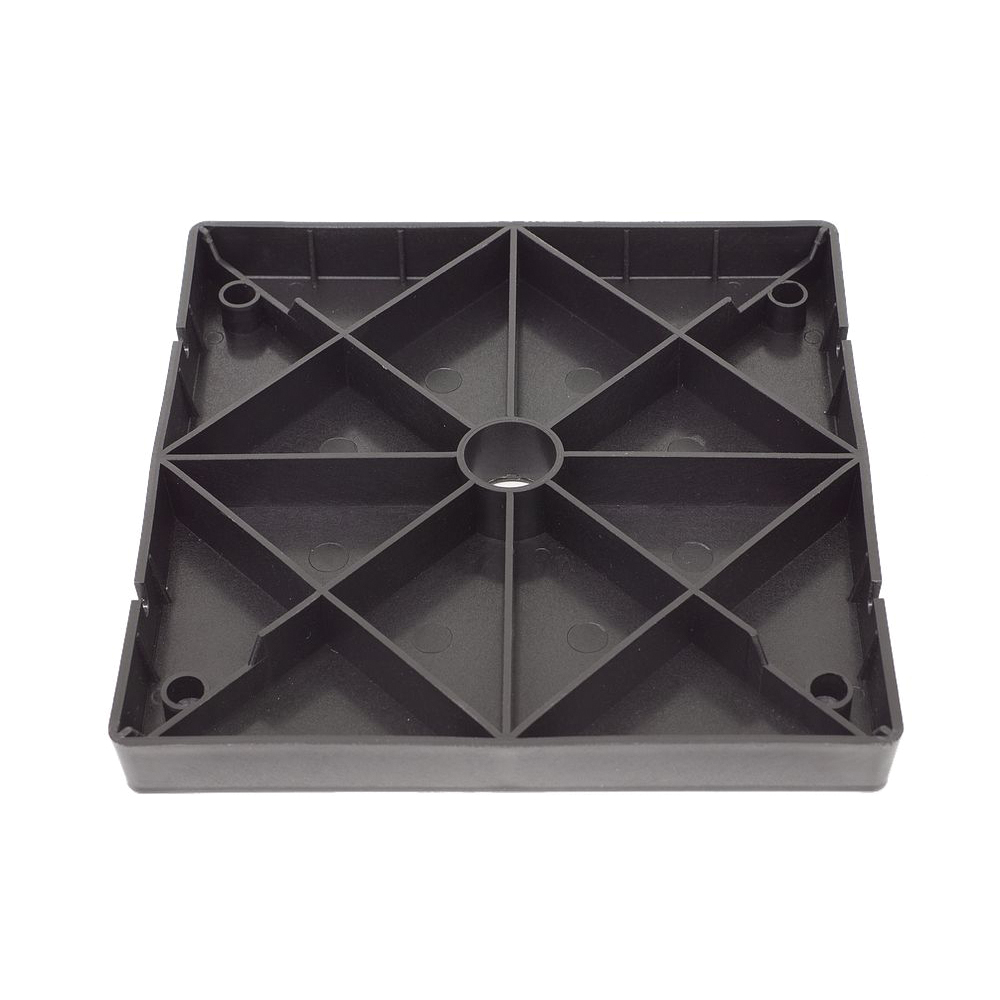

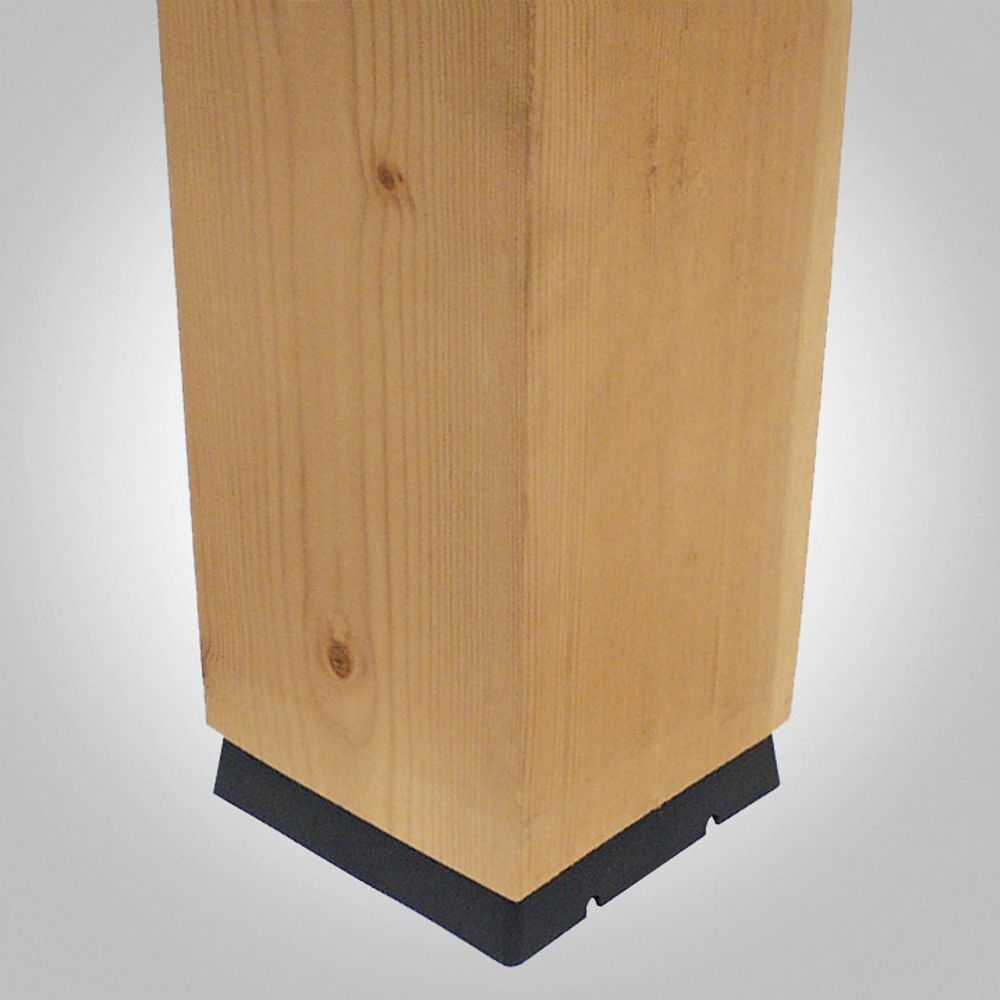

The CPS is a composite-plastic standoff base designed for use both indoors and outdoors. The CPS attaches to the bottom of the solid wood column and to concrete with threaded rod and epoxy. The CPS is load rated and features either a square or a rectangle shape depending upon post dimensions.

Simpson Strong-Tie® Standoff Post Base, Post/Column Size: 4 x 6 in, 3-5/16 in Overall Width, 1 in Overall Depth, 5-5/16 in Overall Height, 0.148 x 3 in Fastener, 4490 lb Uplift, 5925 lb Down Load, Plastic, Black

Color      :      Black
Fastener Size      :      0.148 x 3 in
Load Capacity      :      4490 lb Uplift, 5925 lb Down
Material      :      Plastic
Overall Depth      :      1 in
Overall Height      :      5-5/16 in
Overall Width      :      3-5/16 in
Post/Column Size      :      4 x 6 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/Simpson_Strong_Tie_CPS46_Specification_Sheet.pdf
