MiTek® CSH-TZ 1219622

MiTek® MICSHTZ

  1. pin-int
MiTek® CSH-TZ Concealed Stringer Hanger, 18 ga Gauge, G185 Galvanized
  • Manufacturer: MITEK INDUSTRIES
  • Brand Name: MiTek®
  • Product Code: MICSHTZ
  • Part Number: 1219622
  • MPN: CSH-TZ
  • Min. Order Qty: 1
  • Qty. Interval: 1

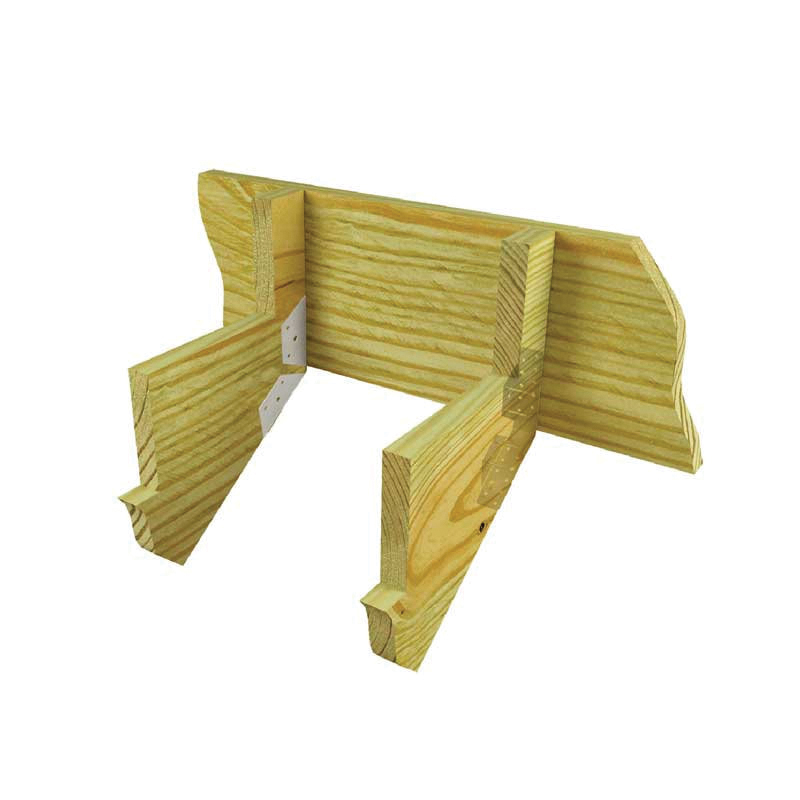

The CSH-TZ concealed stringer hanger provides a method of connecting a stair stringer with a hidden hanger. The seat of the hanger is adjustable to match the slope of the stair stringer. The reversible design allows the connector to be used on the left, right, or interior stringers. The CSH-TZ may be used with MiTek's SCA Stair Angles for a complete, easy-to-use stair framing solution.

MiTek® Concealed Stringer Hanger, CSH Series, 5 in Length, 1-7/16 in Width, Material Gauge: 18 ga, Nail Fastener, 10d x 1-1/2 in Fastener, 695 lb, 875 lb Load, G185 Galvanized, For Use With: SCA Stair Angles

Fastener Size      :      10d x 1-1/2 in
Fastener Type      :      Nail
Finish      :      G185 Galvanized
Length      :      5 in
Load Capacity      :      695 lb, 875 lb
Material Gauge      :      18 ga
Series      :      CSH Series
Suitable For Use With      :      SCA Stair Angles
Width      :      1-7/16 in
  • pdfLine Drawing https://assets.unilogcorp.com/571/ITEM/DOC/MiTek_CSHTZ_Line_Drawing.pdf
  • pdfTechnical Bulletin https://assets.unilogcorp.com/571/ITEM/DOC/MiTek_C44TZ_Technical_Bulletin.pdf
