MiTek® JUS26-TZ 1219632

MiTek® MIJH26

  1. pin-int
MiTek® JUS26-TZ Joist Hanger, 2 x 6-8 Joist, 4-13/16 in H, 1-9/16 in W, 18 ga Gauge, Steel, Gray, G185 Triple Zinc
  • Manufacturer: MITEK INDUSTRIES
  • Brand Name: MiTek®
  • Product Code: MIJH26
  • Part Number: 1219632
  • MPN: JUS26-TZ
  • UPC: 081942099277
  • Min. Order Qty: 1
  • Qty. Interval: 1

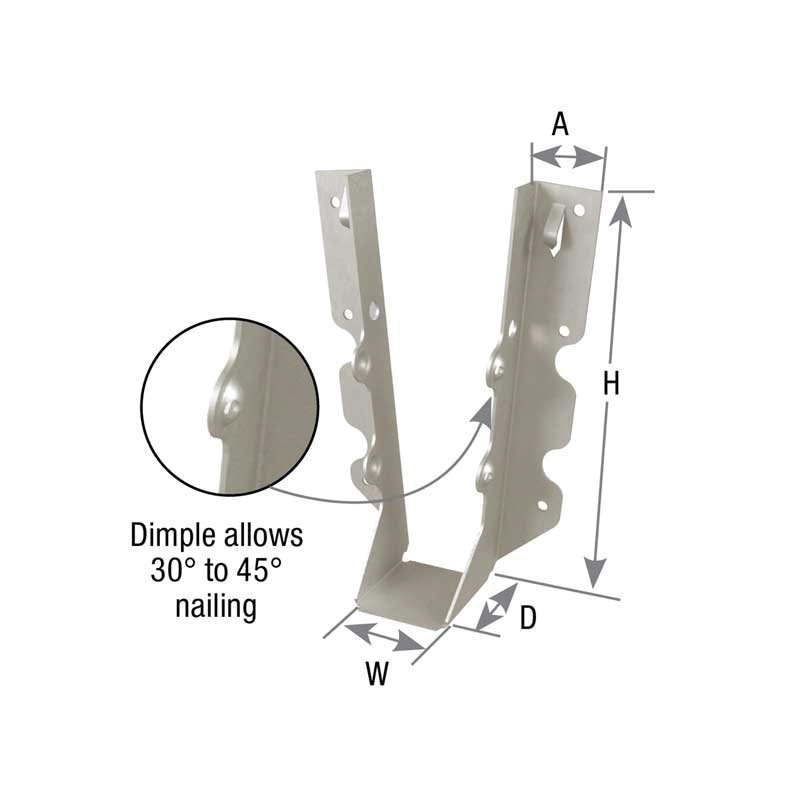

The HUS, JUS, and MUS  hanger series offers double shear nailing. MiTek's dimple allows for 30 deg to 45 deg nailing through the joist into the header resulting in higher loads and less nailing. Slant/double shear nailing allows for higher load values, fewer nails, and faster installation.

MiTek® Joist Hanger, JUS Series, 2 x 6-8 Joist, 4-13/16 in Height, 1-9/16 in Width, Material Gauge: 18 ga, 35 to 45 deg Skew Angle, Slant Nail Fastener, 840 lb Load, Face Mounting, Steel, G185 Triple Zinc, Gray, Additional Information: 1-3/4 in D Dimensions, 1 in W Flange

Additional Information      :      1-3/4 in D Dimensions, 1 in W Flange
Color      :      Gray
Fastener Type      :      Slant Nail
Finish      :      G185 Triple Zinc
Height      :      4-13/16 in
Joist Size      :      2 x 6-8
Load Capacity      :      840 lb
Material Gauge      :      18 ga
Material      :      Steel
Mounting Type      :      Face
Series      :      JUS Series
Skew Angle      :      35 to 45 deg
Width      :      1-9/16 in
  • pdfTechnical Bulletin https://assets.unilogcorp.com/571/ITEM/DOC/MiTek_JUS262TZ_Technical_Bulletin.pdf
