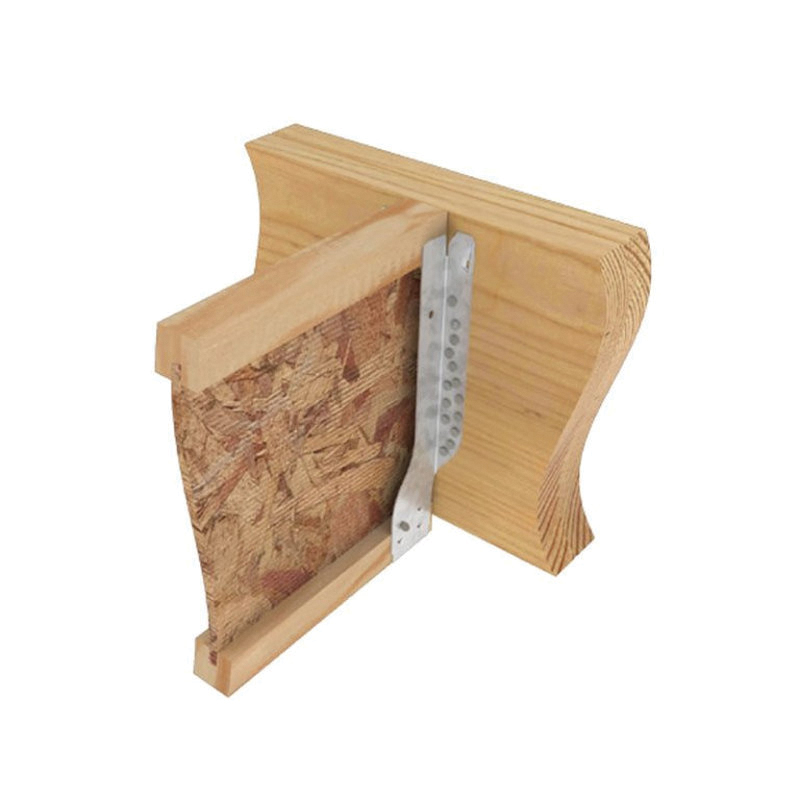

MiTek® IHF20112-2 Joist Hanger, 4 to 4-3/16 x 11-7/8 in Joist, 11 in H, 4-3/16 in W, 16 ga Gauge, Steel, Gray
  • Manufacturer: MITEK INDUSTRIES
  • Brand Name: MiTek®
  • Product Code: MIU41211
  • Part Number: 1219667
  • MPN: IHF20112-2
  • Min. Order Qty: 1
  • Qty. Interval: 1

IHFL (18GA) and IHF (16GA) series face mount hangers feature speed prongs for temporary placement and seat cleats to grab the bottom flange of the supported I-joist. Diamond holes in header and joist allow for optional Max nailing for customized fastening to match allowable load needed. Install nails in all fastener holes when the Max allowable load is needed while lighter load capacities can be achieved with a quick installation of round holes only, saving time and money on the jobsite.

MiTek® Joist Hanger, IHF Series, 4 to 4-3/16 x 11-7/8 in Joist, 11 in Height, 4-3/16 in Width, Material Gauge: 16 ga, 30 to 40 deg Skew Angle, Nail Fastener, 1250 to 3530 lb Load, Face Mounting, Steel, G90 Galvanized, Gray

Color      :      Gray
Fastener Type      :      Nail
Finish      :      G90 Galvanized
Height      :      11 in
Joist Size      :      4 to 4-3/16 x 11-7/8 in
Load Capacity      :      1250 to 3530 lb
Material Gauge      :      16 ga
Material      :      Steel
Mounting Type      :      Face
Series      :      IHF Series
Skew Angle      :      30 to 40 deg
Width      :      4-3/16 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/MiTek_IHF201122_Specification_Sheet.pdf
