Simpson Strong-Tie® MIU4.75/11 1244104

Simpson Strong-Tie® MIU47511

  1. pin-int
Simpson Strong-Tie® MIU4.75/11 Medium I-Joist Hanger, 4-5/8 x 11-1/4 to 11-7/8 in Joist, 11-1/16 in H, 4-3/4 in W
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: MIU47511
  • Part Number: 1244104
  • MPN: MIU4.75/11
  • UPC: 044315321702
  • Min. Order Qty: 1
  • Qty. Interval: 1

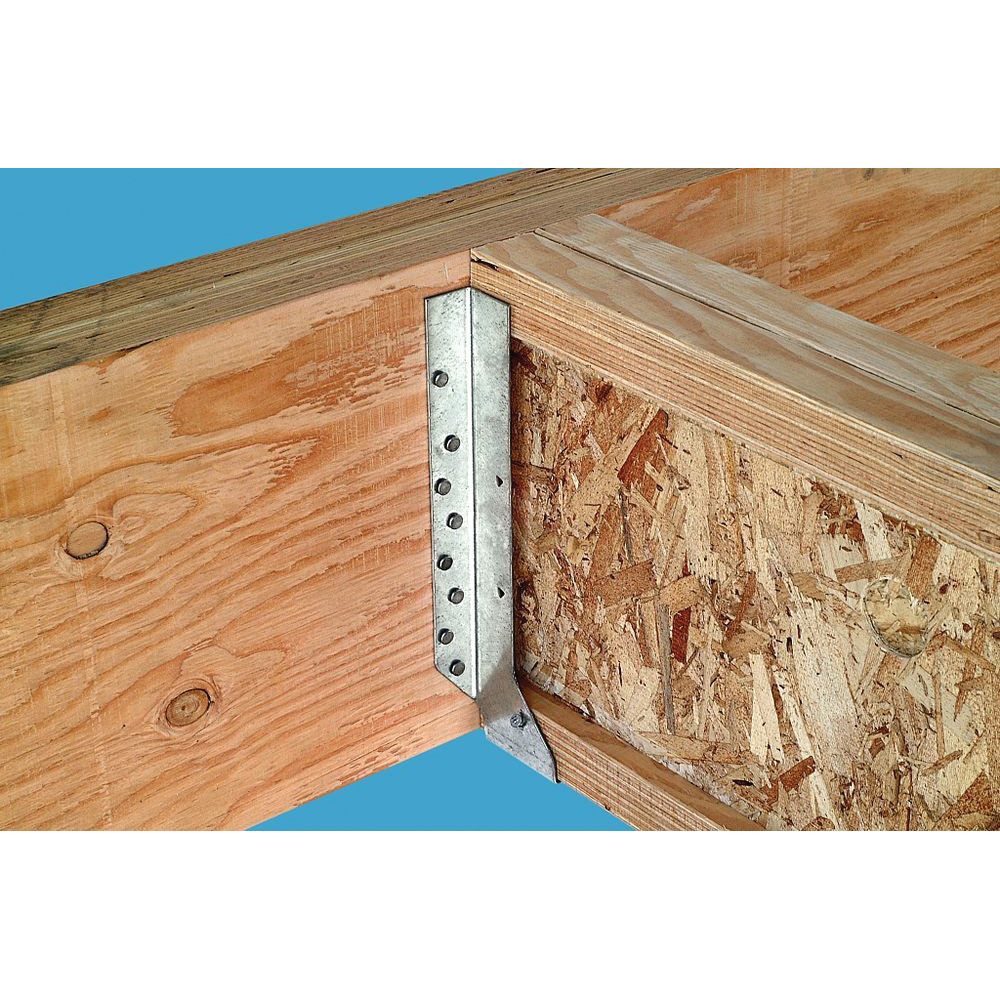

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.

Simpson Strong-Tie® Medium I-Joist Hanger, MIU Series, 4-5/8 x 11-1/4 to 11-7/8 in Joist, 11-1/16 in Height, 4-3/4 in Width, Material Gauge: 16 ga, 5 deg Skew Angle, Joist Nail Fastener, 0.148 x 1.5 in Fastener, 975 lb Load, Face Mounting, G90 Zinc Galvanized, Additional Information: 2-1/2 in D Dimensions

Additional Information      :      2-1/2 in D Dimensions
Fastener Size      :      0.148 x 1.5 in
Fastener Type      :      Joist Nail
Finish      :      G90 Zinc Galvanized
Height      :      11-1/16 in
Joist Size      :      4-5/8 x 11-1/4 to 11-7/8 in
Load Capacity      :      975 lb
Material Gauge      :      16 ga
Mounting Type      :      Face
Series      :      MIU Series
Skew Angle      :      5 deg
Width      :      4-3/4 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/SimpsonStrongTie_IUS1811188_Specification_Sheet.pdf
