MiTek® SKH210R Right Skew Hanger, 2 x 10-14 Post/Joist, 16 ga Gauge, Steel, G90 Galvanized
  • Manufacturer: MITEK INDUSTRIES
  • Brand Name: MiTek®
  • Product Code: MIJHSR210
  • Part Number: 1219641
  • MPN: SKH210R
  • Min. Order Qty: 1
  • Qty. Interval: 1

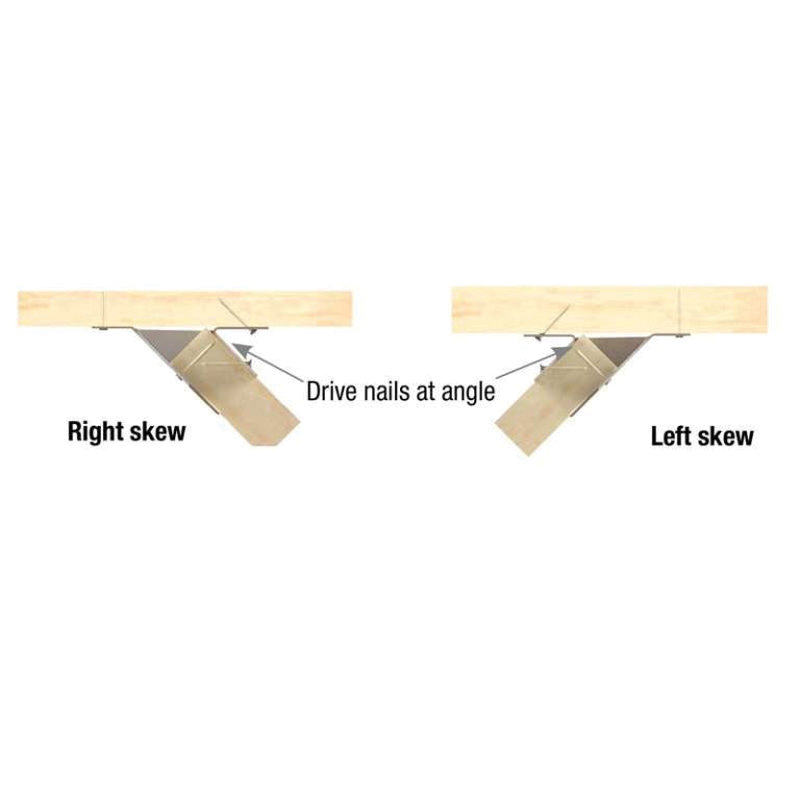

The SKH210L/R Skewed 45 deg Hangers can be used to connect skewed plated wood trusses, rafters, or rim joists to masonry wall structures. Allowable loads are based on proper use of fasteners installed per manufacturer's specifications.

MiTek® Right Skew Hanger, SKH Series, Post/Joist Size: 2 x 10-14, 1-7/8 in Length, 1-9/16 in Width, 9-1/4 in Height, Material Gauge: 16 ga, 45 deg Skew Angle, Screw Fastener, 3/16 in Fastener, 1120 lb Load, Face Mounting, Steel, G90 Galvanized, Additional Information: 1-7/8 in D Dimensions

Additional Information      :      1-7/8 in D Dimensions
Fastener Size      :      3/16 in
Fastener Type      :      Screw
Finish      :      G90 Galvanized
Height      :      9-1/4 in
Length      :      1-7/8 in
Load Capacity      :      1120 lb
Material Gauge      :      16 ga
Material      :      Steel
Mounting Type      :      Face
Post/Joist Size      :      2 x 10-14
Series      :      SKH Series
Skew Angle      :      45 deg
Width      :      1-9/16 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/MiTek_SKH210L_Specification_Sheet.pdf
