Simpson Strong-Tie® SUR2.37/14 Right Skewed U-Shaped Hanger, 2-1/4 x 14 in Post/Joist, 16 ga Gauge, Carbon Steel
  • Manufacturer: Simpson Strong-Tie
  • Brand Name: Simpson Strong-Tie®
  • Product Code: SUR23714
  • Part Number: 1244135
  • MPN: SUR2.37/14
  • Min. Order Qty: 1
  • Qty. Interval: 1

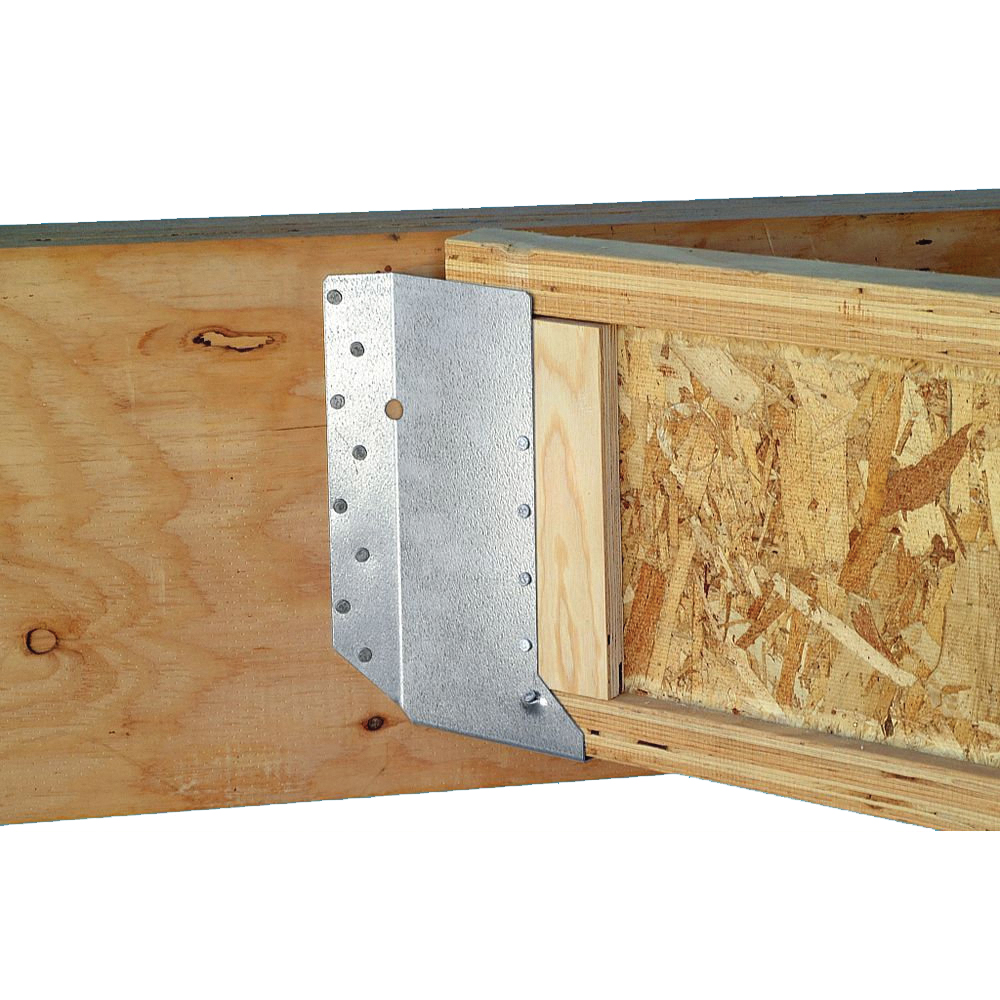

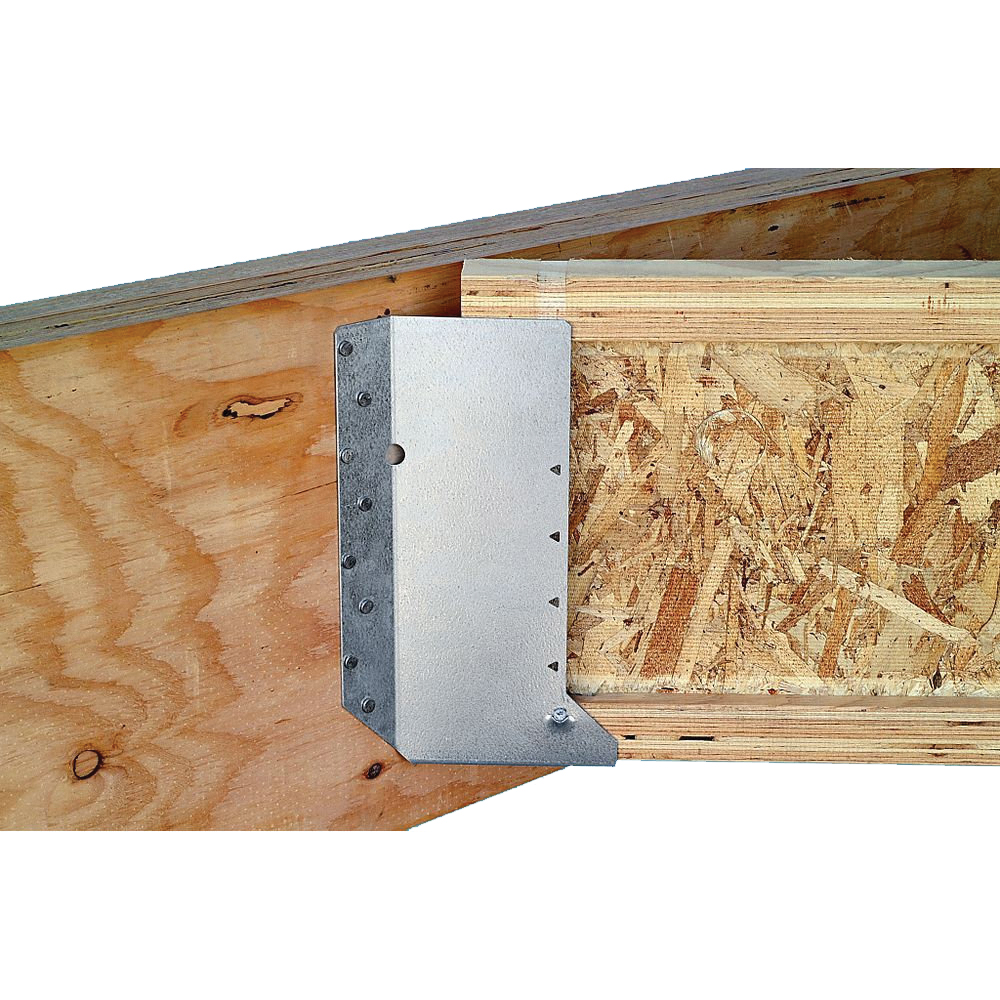

The SUR/L are 45 deg-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45 deg to the right (SUR) and the left (SUL), respectively.

Simpson Strong-Tie® Right Skewed U-Shaped Hanger, SUR Series, Post/Joist Size: 2-1/4 x 14 in, 3-3/16 in Length, 2-3/8 in Width, 13-7/16 in Height, Material Gauge: 16 ga, 45 deg Skew Angle, Nail Fastener, 0.148 x 1.5 in Fastener, Face Mounting, Carbon Steel, G90 Zinc Galvanized

Fastener Size      :      0.148 x 1.5 in
Fastener Type      :      Nail
Finish      :      G90 Zinc Galvanized
Height      :      13-7/16 in
Length      :      3-3/16 in
Material Gauge      :      16 ga
Material      :      Carbon Steel
Mounting Type      :      Face
Post/Joist Size      :      2-1/4 x 14 in
Series      :      SUR Series
Skew Angle      :      45 deg
Width      :      2-3/8 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/571/ITEM/DOC/SimpsonStrongTie_SUL18114_Specification_Sheet.pdf
