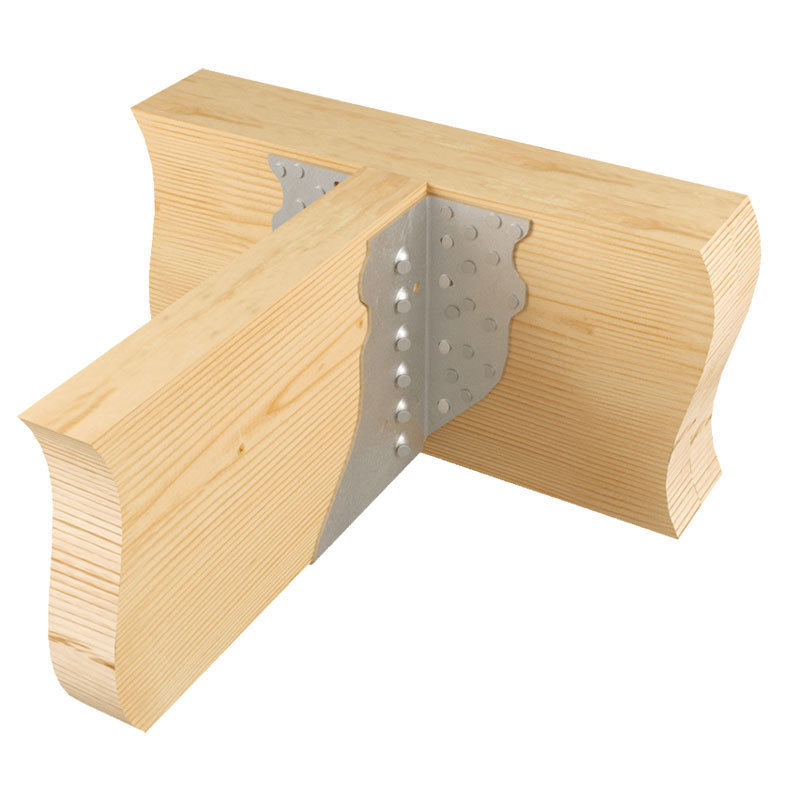

MiTek® THDH614 Heavy-Duty Truss Hanger, 13 in H, 12 ga Gauge, G90 Galvanized
  • Manufacturer: MITEK INDUSTRIES
  • Brand Name: MiTek®
  • Product Code: HGUS55014
  • Part Number: 1219574
  • MPN: THDH614
  • Min. Order Qty: 1
  • Qty. Interval: 1

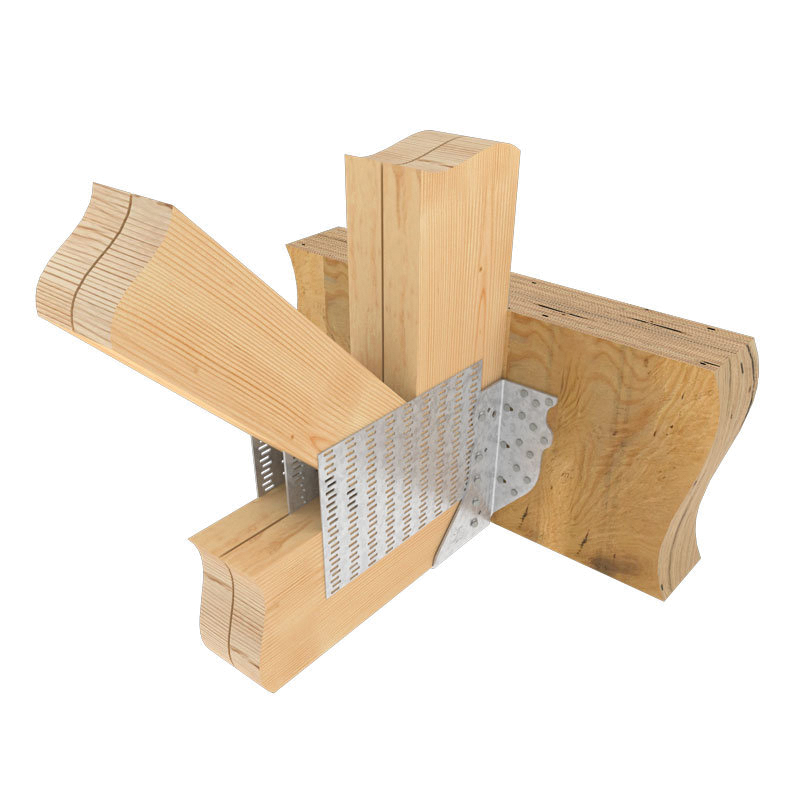

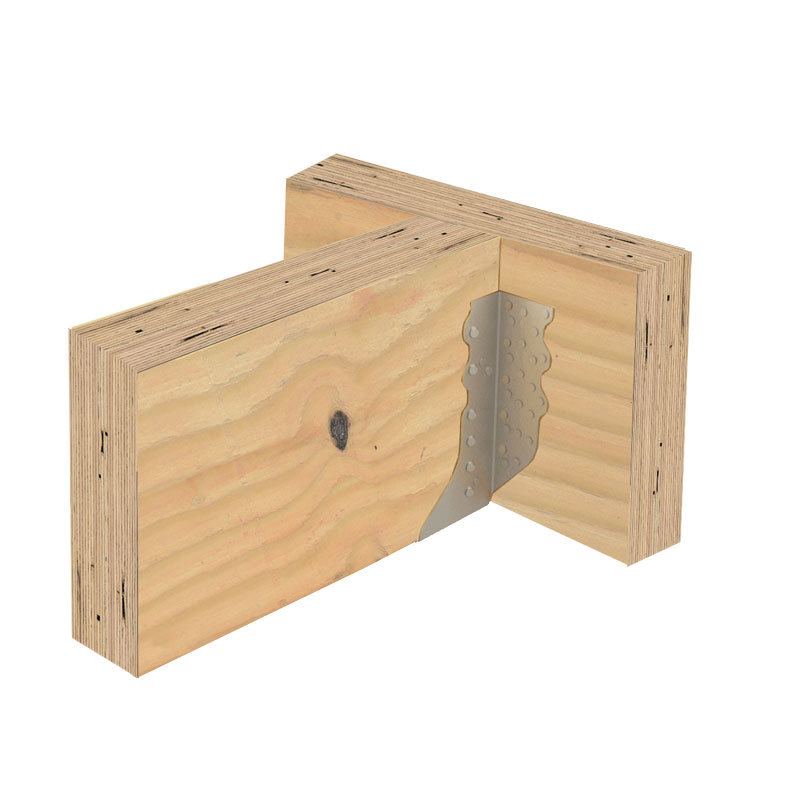

The THDH are high capacity face mount hangers designed for truss-to-truss and structural composite lumber (LVL, PSL and LSL) connections.

MiTek® Heavy-Duty Truss Hanger, THDH Series, 13 in Height, 5-1/2 in Width, 4 in Length, Material Gauge: 12 ga, 11325 lb Load, G90 Galvanized, Additional Information: Face-Mount, 6 x 14 to 16 in Joist Size

Additional Information      :      Face-Mount, 6 x 14 to 16 in Joist Size
Finish      :      G90 Galvanized
Height      :      13 in
Length      :      4 in
Load Capacity      :      11325 lb
Material Gauge      :      12 ga
Series      :      THDH Series
Width      :      5-1/2 in
