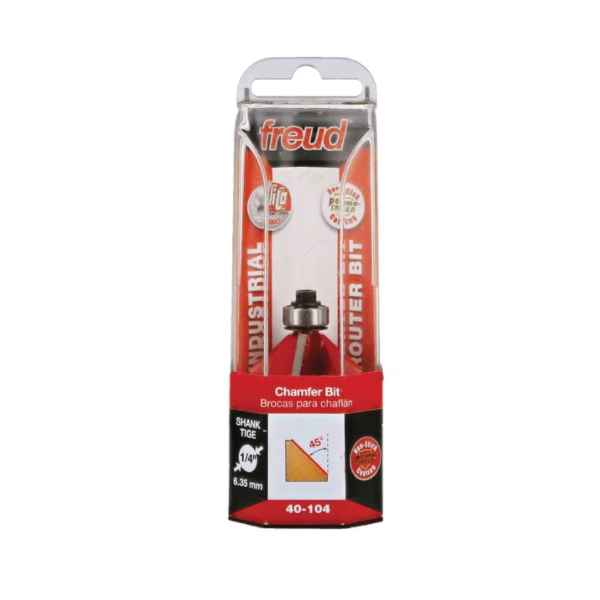

freud® 40-104 Chamfer Router Bit, 1-11/32 in Dia Cutting, 1/2 in L Cut, 2-3/16 in OAL, 1/4 in Dia Shank, 2 -Flute
  • Manufacturer: Freud America, Inc
  • Brand Name: freud®
  • Product Code: 6113906
  • Part Number: 1022432
  • MPN: 40-104
  • UPC: 008925380948
  • Min. Order Qty: 1
  • Qty. Interval: 1

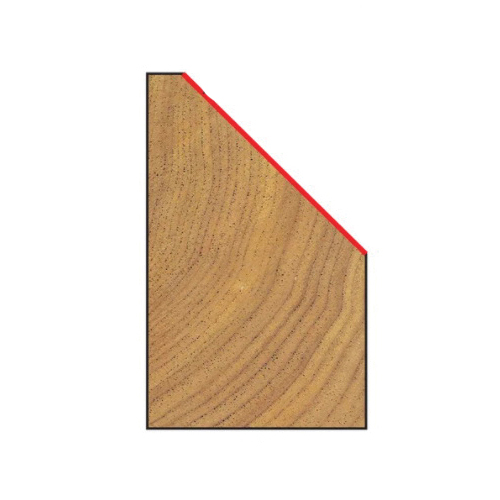

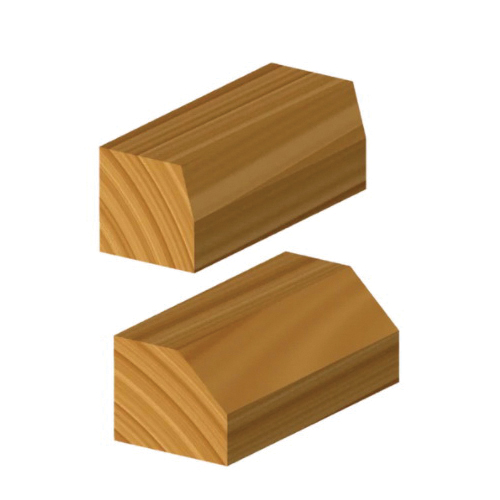

The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery and easing edges. Creates a uniform chamfer on the edge of any workpiece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites, use in hand held or table-mounted portable routers.

freud® Chamfer Router Bit, 1-11/32 in Cutting Diameter, 1/2 in Length of Cut, 2-3/16 in Overall Length, 45 deg Cutting Angle, 2 Flutes, 1/2 in Flute, 1/4 in Shank Diameter, 1-1/4 in Shank Length, 1/2 in Bearing Pilot Diameter, Perma-Shield® Coated, Cut Materials: Composition Material, Hardwood, Plywood, Softwood

Bearing Pilot Diameter      :      1/2 in
Cut Materials      :      Composition Material, Hardwood, Plywood, Softwood
Cutting Angle      :      45 deg
Cutting Diameter      :      1-11/32 in
Finish      :      Perma-Shield® Coated
Flute Length      :      1/2 in
Length of Cut      :      1/2 in
Number of Flutes      :      2
Overall Length      :      2-3/16 in
Shank Diameter      :      1/4 in
Shank Length      :      1-1/4 in
